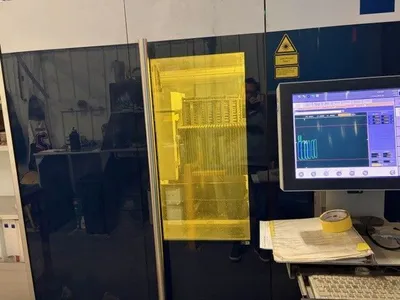

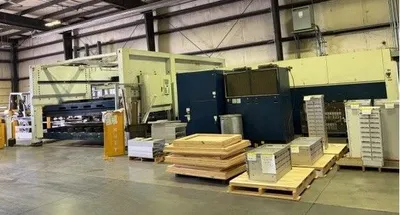

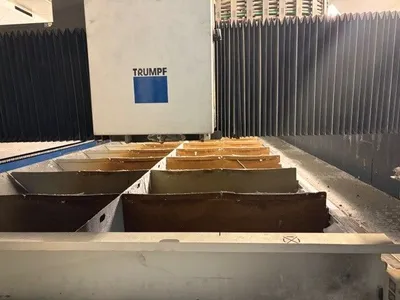

USED 2016 TRUMPF TRULASER 3040 FIBER

TRUMPF TRULASER 3040 FIBER LASER, NEW: 2016
3,000 WATTS
6.5' x 13' TABLE

MAX. LASER OUTPUT: 3,000 WATTS
LASER TYPE: FIBER
MOTION SYSTEM: FLYING OPTIC
WORKING RANGE:
- X-AXIS: 157.48"
- Y-AXIS: 78.74"
MAX. SIMULTANEOUS SPEED: 6,693 IPM
MAX. WORKPIECE WEIGHT:
- STANDARD PALLET: 4,409 LBS
- HEAVY DUTY PALLET: 7,275 LBS
MAX. MATERIAL THICKNESS: 0.75" MS
MACHINE DIMENSIONS: 441"(L) x 251"(W) x 86.6"(H)
MACHINE WEIGHT: 31,526 LBS

SIEMENS SINUMERIK 840D CONTROL
TRUMPF TRUDISK 3001 FIBER ENGINE
CHILLER
DUST COLLECTOR
AUTO PALLET SHUTTLE

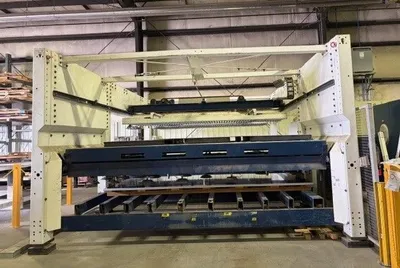

LIFTMASTER COMPACT LOAD/UNLOAD
