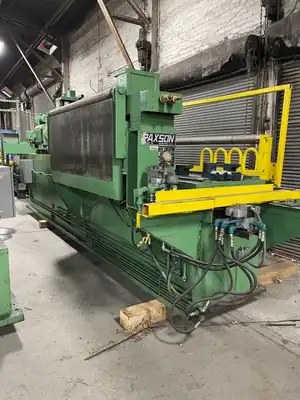

72" x 9.00" x 60,000# Paxson Slitting Line
Overview
Specifications
YEAR: 1970
Driven Head Loop-Type Slitting Line
Coil Weight: 60,000 lbs.
Coil Size: 20" to 24" ID x 72" OD
Line Direction: Left to Right
Year: 1960 - 1970's (Updated Controls)
Consisting of the following;

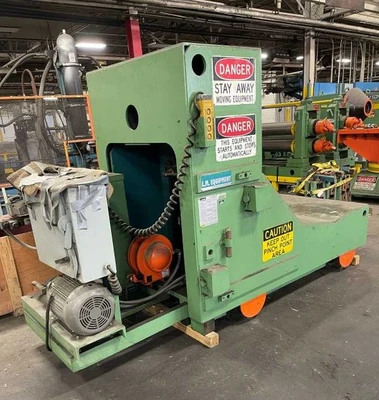

-Entry Coil Car:
Above Ground "L" Type
Self-Contained Hydraulics
Electric Cable Reel
Pushbutton Control

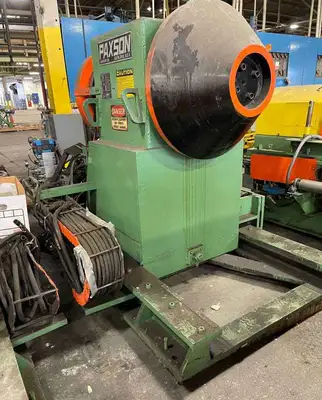

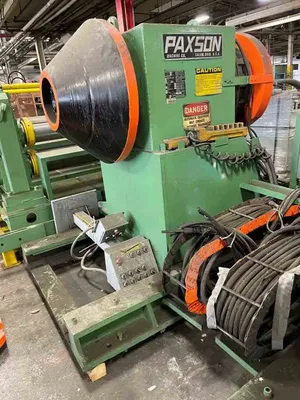

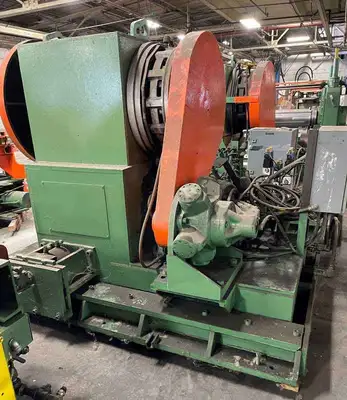

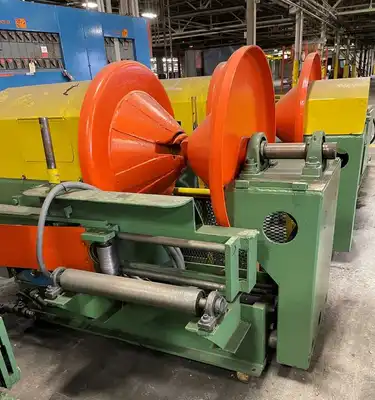

-Uncoiler:
Double Cone Type
Hydraulic Motor Threading Drive
Water Cooled Brakes on each Head
Slide Bases

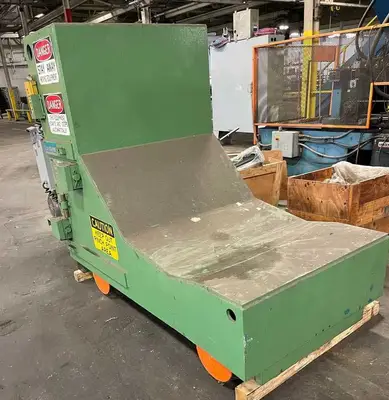

-Peeler Table:
Hydraulic Cylinder Operated
-Pinch Rolls:
Adjustable Side Guides

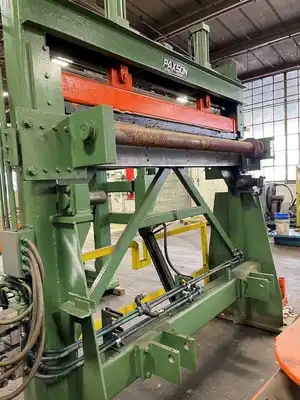

-Crop Shear:
Hydraulic Operated

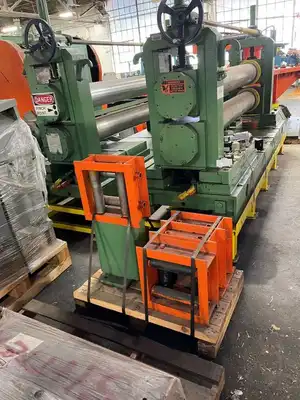

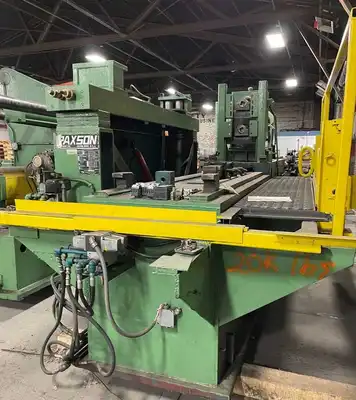

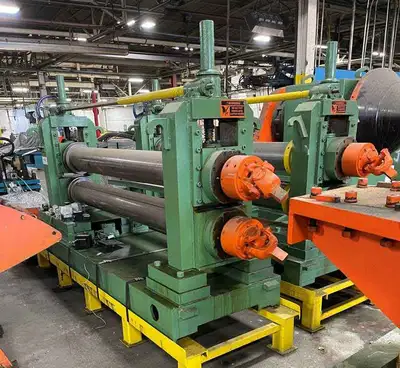

-(2) Slitter Heads:
9" Dia. Arbors
Two Drop in Heads

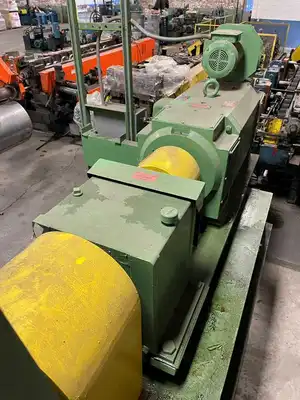

75 HP Reliance DC Motor, 650/2100 RPM, 500 V
-(2) Scrap Winders:
Two Motor Driven Scrap Winders
Self-Dumping

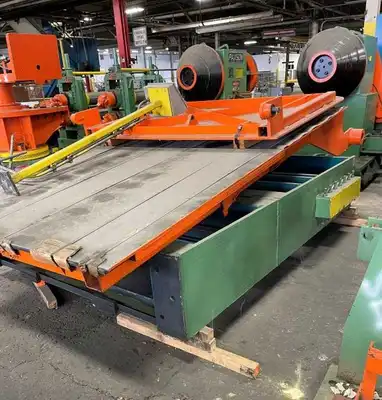

-Pit Table:
-Tension Stand:
Drag Board Type

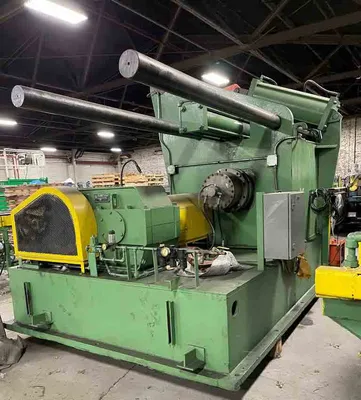

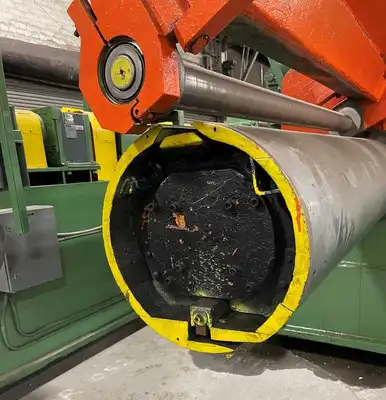

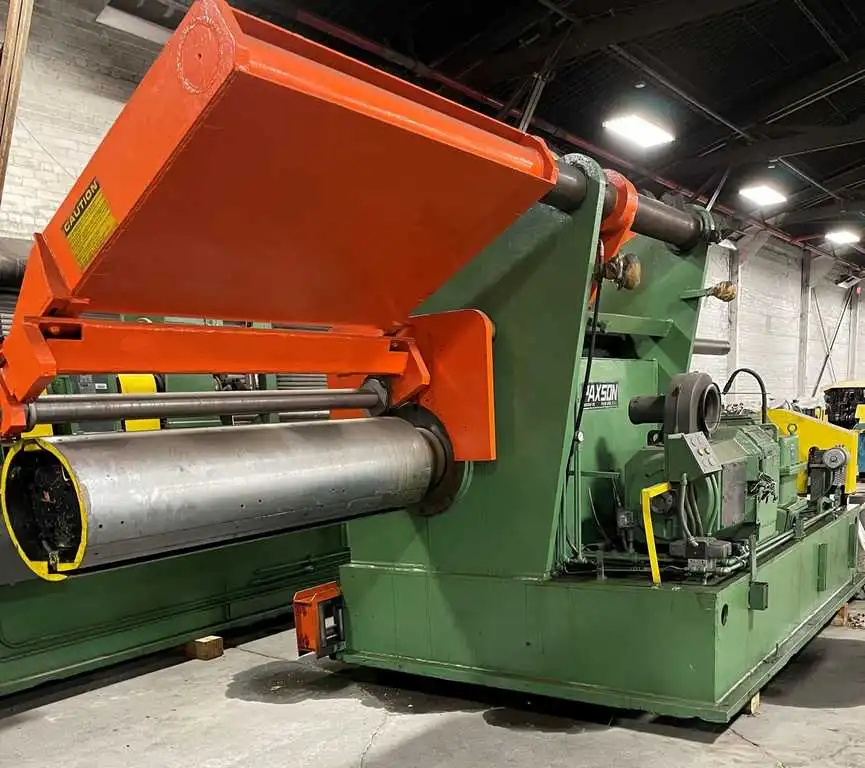

-Recoiler:
20" Dia. Drum
Hydraulic Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
100 HP DC Motor, 650/1950 RPM, 500 V, W/Blower

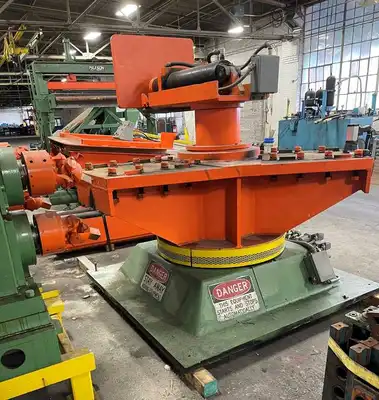

-Exit Turnstile:
Two Arms
Hydraulic Pushoff

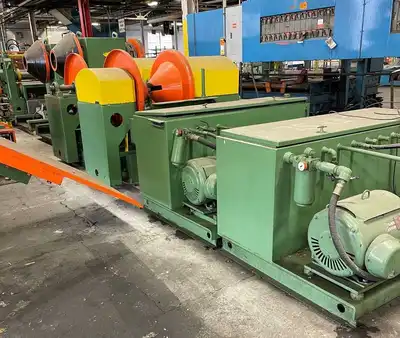

-Hydraulic Power Units:

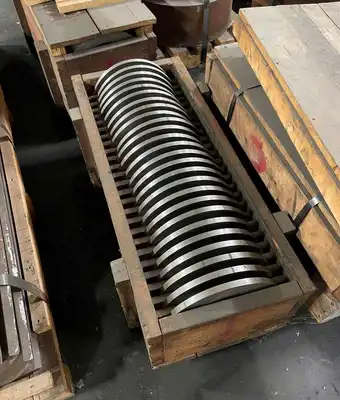

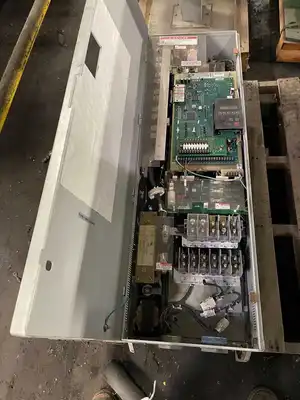

-Good Controls, Tooling, Spare Parts
-Line is removed and in storage
