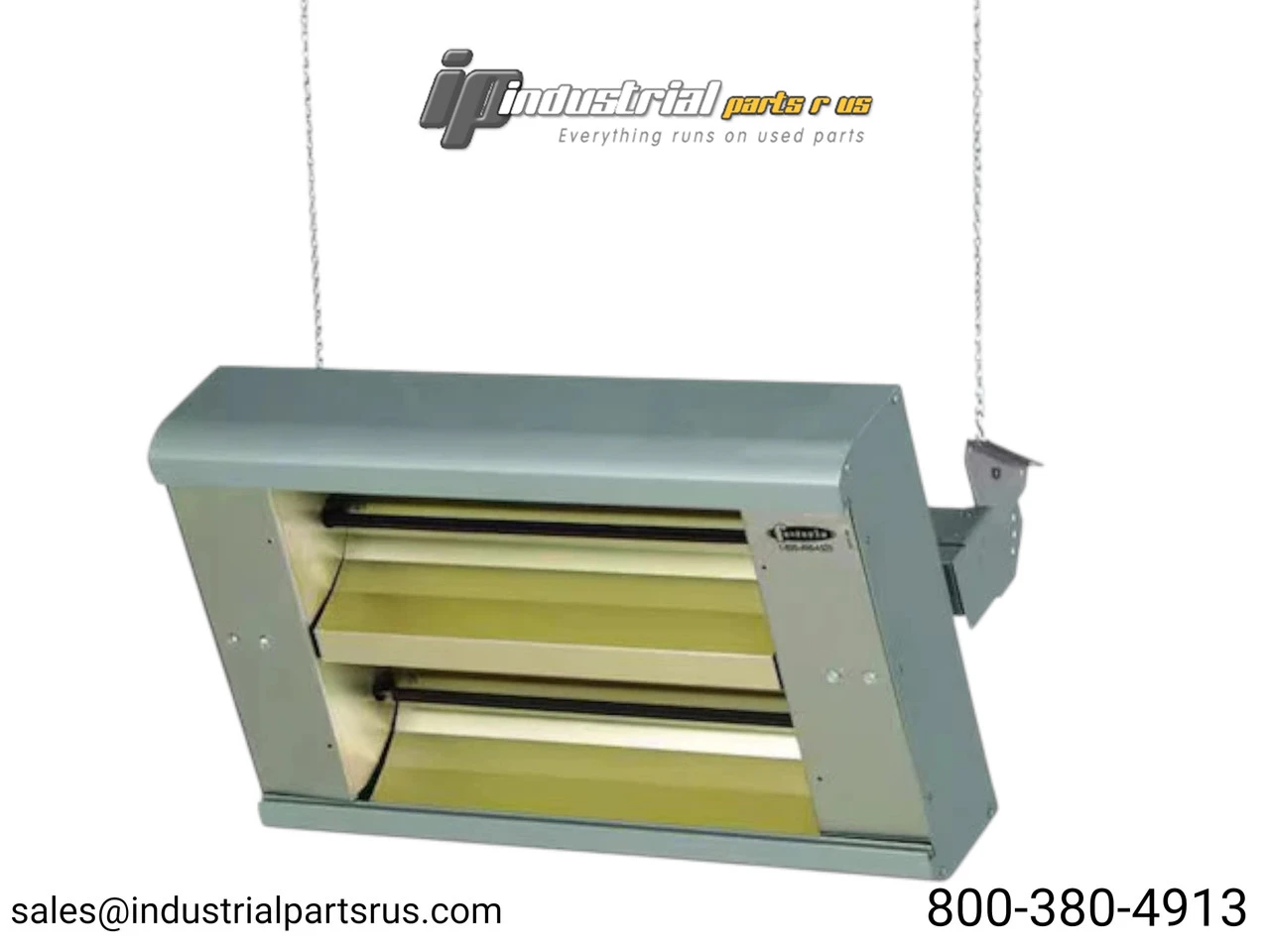

NEW FOSTORIA 222-30-THA-480V

The Fostoria 222-30-THA-480V Architectural Mul-T-Mount electric infrared heater delivers efficient radiant heating for commercial indoor and outdoor applications. Featuring 2 clear quartz lamp elements with instantaneous heat and a durable 6063 extruded aluminum housing with powder-coated nickel gray finish, this unit is ideal for spot heating, total area heating, and snow/ice control. ETL C/US listed for suspended, totally exposed outdoor, and indoor applications including walkways, loading docks, patios, and building entrances.
Specifications
Power: 3200 watts (3.2kW), 480V AC, 1-Phase, 60Hz
Amperage: 6.7A
Heating Capacity: 10,918 BTU/h
Model Series: 222 (2-element)
Beam Pattern: 30° Symmetrical
Element Type: 2 Clear Quartz Lamps
Dimensions: 24 in L x 15 in W x 10-7/8 in D
Housing: 6063 Extruded Aluminum with powder-coated nickel gray finish
Reflector: Gold anodized one-piece aluminum reflector
Mounting: Ceiling suspended, recessed, or surface mount (horizontal only)
Includes: High temperature leads, mounting brackets, elements
Electrical Connection: Hardwired
Indoor/Outdoor: Both (totally exposed outdoor rated)
Applications: Spot heating, area heating, snow/ice control
Recommended Mounting Height: 8-10 ft outdoor, 14-30 ft indoor
Certifications: ETL C/US Listed

SKU: IP16223
UPC: 721814247886
Condition: New
Availability: In Stock
Weight: 30.00 LBS
Width: 18.00
(in)
Height: 18.00
(in)
Depth: 30.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247886
Country/Region of Manufacture: United States
Fuel Type: Electric
Material: Aluminum
Manufacturer: Fostoria
Model: 222-30-THA-480V
MPN: 222-30-THA-480V
Voltage: 480 V
Type: Infrared
