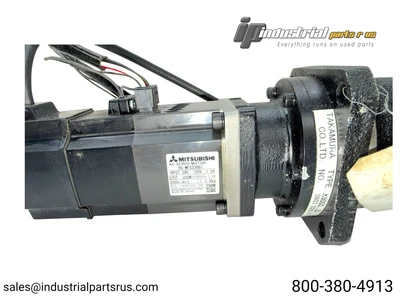

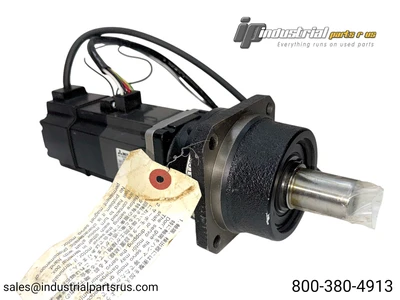

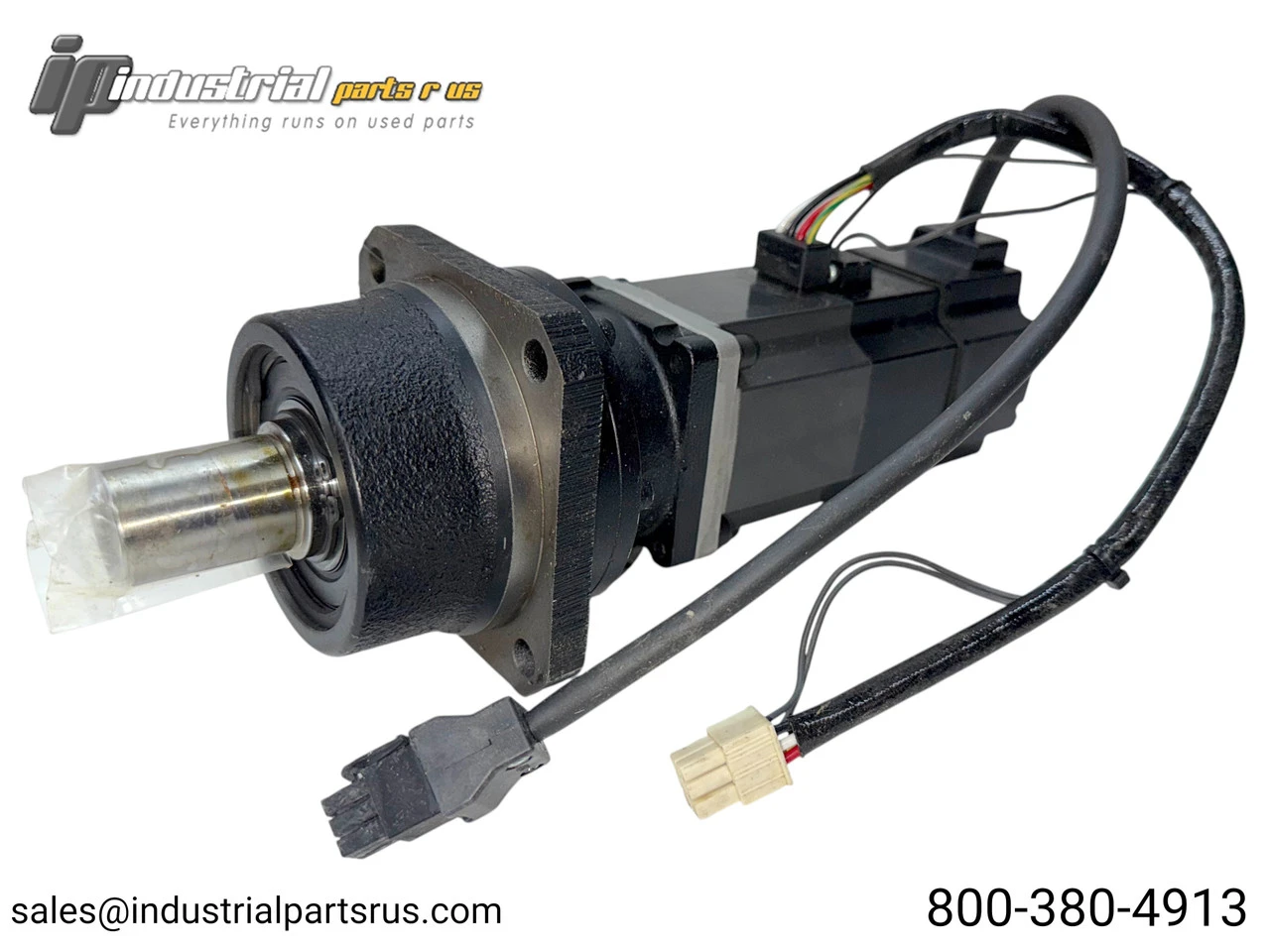

NEW MITSUBISHI HC-MFS23BG1

The Mitsubishi HC-MFS23BG1 is a high-performance AC brushless servo motor from the MELSERVO J2S series, designed for demanding industrial automation applications. This ultra-low inertia motor delivers 200W rated output power with 0.64Nm nominal torque at 3000rpm, featuring a 17-bit absolute feedback encoder for exceptional positional accuracy. With IP55 protection rating, 60x60mm flange mounting, and straight shaft design, it provides reliable operation in assembly machines, insertion devices, robotics, and CNC machinery.
Specifications
Model: HC-MFS23BG1
Series: Mitsubishi MELSERVO J2S
Motor Type: AC Brushless Rotary Servo Motor
Gear Reducer: Takamura K9005 B
Gear Ratio: 5:1
Rated Output Power: 200W (0.2kW)
Rated Torque: 0.64Nm
Rated Speed: 3000 RPM
Encoder: 17-bit Absolute Feedback (131072 ppr equivalent)
Rated Current: 1.5A
Supply Voltage: 200VAC Class
Shaft Type: Straight Shaft, No Brake
Shaft Diameter: 30mm
Flange Size: 60x60mm
Protection Rating: IP55 (except connector and shaft section)
Operating Temperature: 0°C to +40°C
Inertia Type: Ultra-Low Inertia
Cable Position: Front-mounted connectors

SKU: IP16227
UPC: 721814247923
Condition: New
Availability: In Stock
Weight: 10.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247923
Country/Region of Manufacture: Japan
Manufacturer: Mitsubishi
Shaft Diameter: 30mm
Series: MELSERVO J2S
Shelf: K-12
Model: HC-MFS23BG1
MPN: HC-MFS23BG1
Type: AC Servo Motor with Gear Reducer 5:1
