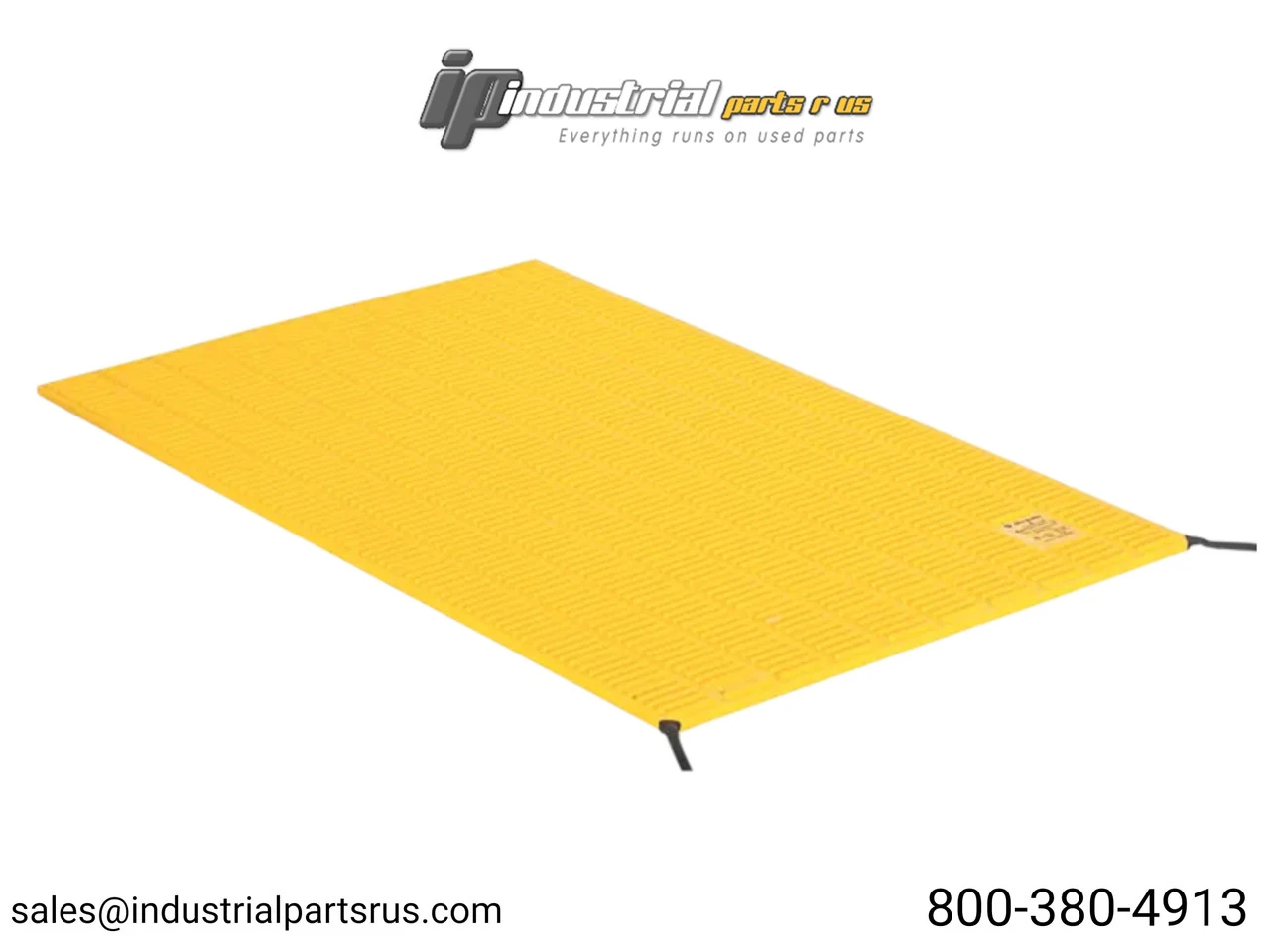

NEW ALLEN BRADLEY 440F-M1015BYNN

The Allen-Bradley 440F-M1015BYNN is a Guardmaster MatGuard™ pressure-sensitive safety mat designed to detect the presence of personnel on industrial sensing surfaces and trigger a machine stop signal via a compatible safety controller. Measuring 500mm x 750mm in yellow, it features hardened steel plate construction with a 4-wire system capable of detecting both open and short circuit faults, providing no-dead-spot coverage across its entire surface. Suitable for robotic work cells, press and stamping equipment, assembly lines, and hazardous area personnel detection. The mat ships without trim or controller and requires a compatible MatGuard control unit such as the 440F-C4000P or equivalent safety relay.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
440F-M1015BYNN
Product Series
440F MatGuard™
Product Family
Guardmaster Safety Mats
Product Type
Pressure-Sensitive Safety Mat
Mat Width (A Dimension)
500 mm (1.64 ft)
Mat Length (B Dimension)
750 mm (2.46 ft)
Thickness
16 mm (0.63 in)
Color
Yellow
Construction
Hardened Steel Plate
Detection System
4-Wire System (detects opens and shorts)
Cable Configuration
Two 4.5m (15 ft) 2-wire cables, exit out "B" corners
Cable Length
4.5 m (15 ft)
Nominal Supply Voltage
24V DC
Static Pressure Rating
4500 PSI
IP Rating
IP67
Safety Category (EN ISO 13849-1)
Category 3
Operating Temperature
-10°C to +55°C
Edge Trim Included
No (order separately: 440F-T1015)
Controller Included
No (compatible: 440F-C4000P)
Lifecycle Status
Active
Applicable Standards
EN 1760-1, EN ISO 13849-1, IEC/EN 60204-1, ANSI RIA R15.06, ANSI/B11.19
Manufacturer
Rockwell Automation
