USED 2019 Chevalier FSG-618M, 2019, 2X DRO, ROLLER BEARING TABLE
Overview
Description

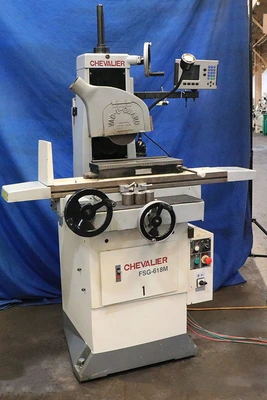

6" Width 18" Length Chevalier FSG-618M, 2019, 2X DRO, ROLLER BEARING TABLE SURFACE GRINDER, PMC
Specifications

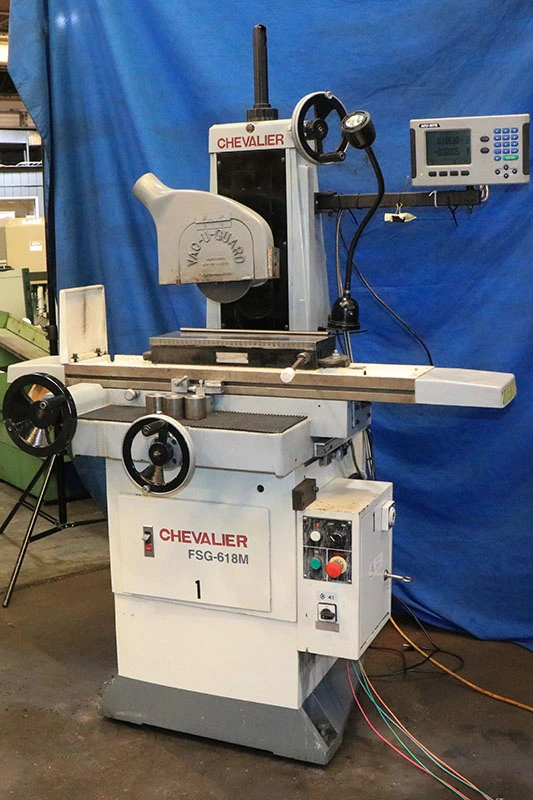

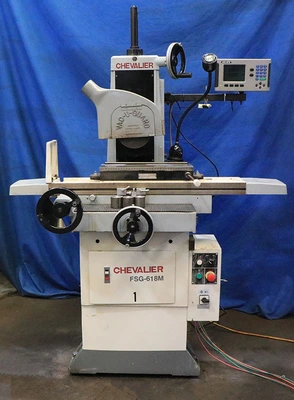

6" x 18" Chevailer Hand Feed Surface Grinder
with Roller Bearing Table
** Equipped With "Acu-Rite 2X DRO **

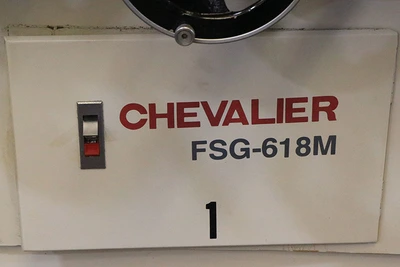

Model: FSG-618M S/N:A3084012 New: 2019
Specifications:
Maximum grinding length:............... 18"
Maximum grinding width:................ 6"
Maximum table travel,
longitudinal: ........................ 19"
cross: ............................... 7"
Maximum distance from table
working surface to spindle center .... 18"
Cross handwheel graduations: .......... 0.0005"
Cross handwheel per rev. .............. 0.100"
Downfeed handwheel graduations ........ 0.0001"
Vertical handwheel per rev. ........... 0.050"
Spindle speed:......................... 3,450 RPM
Wheel size:...................... 8" x 1/2"W x 1-1/4"B
Approximate weight: ................... 1,500 lbs
Approximate Dimensions: ......... 41"W x 47"D x 76"H
Machine Features:
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V Guideways laminated with Turcite-B for saddle travel
Automatic lubrication of leadscrews and ways
2 HP 3/60/230-460 volt spindle motor
Equipped with:

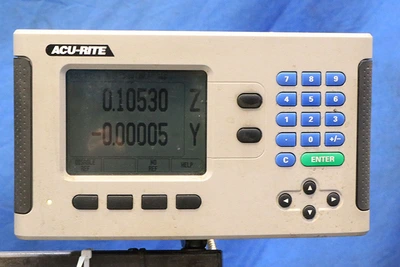

"Acu-Rite" "200S" 2-Axis Digital Readout
"Vac-U-Guard" Wheel Cover, with Dust Inlet

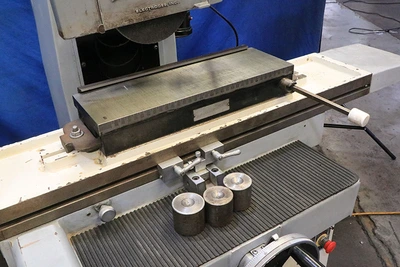

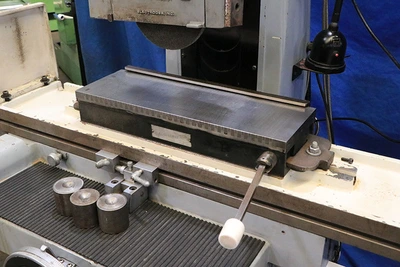

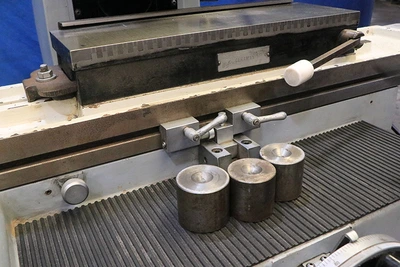

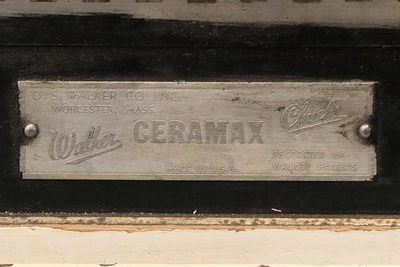

"O.S. Walker" "Ceramax" Fine-Division 6" x 18"
Permanent Magnetic Chuck
Work light
Machine is Presently Wired for 460 Volts
LINK TO VIDEO https://youtu.be/8IXR0Ken3xo?si=q-q1MMJdktL7m_iQ
** "Like New" Condition & Appearance (Original Paint) **
** Inspect Under Power in our Harrison, NJ Warehouse **
FOR MORE INFORMATION: Call Andy at 973-497-7600
