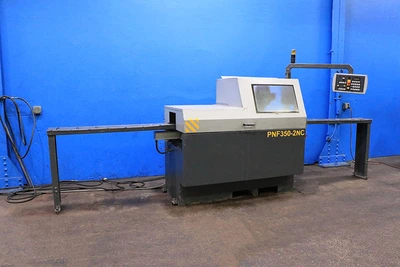

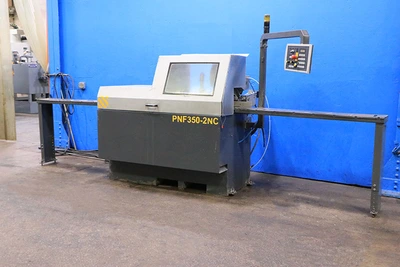

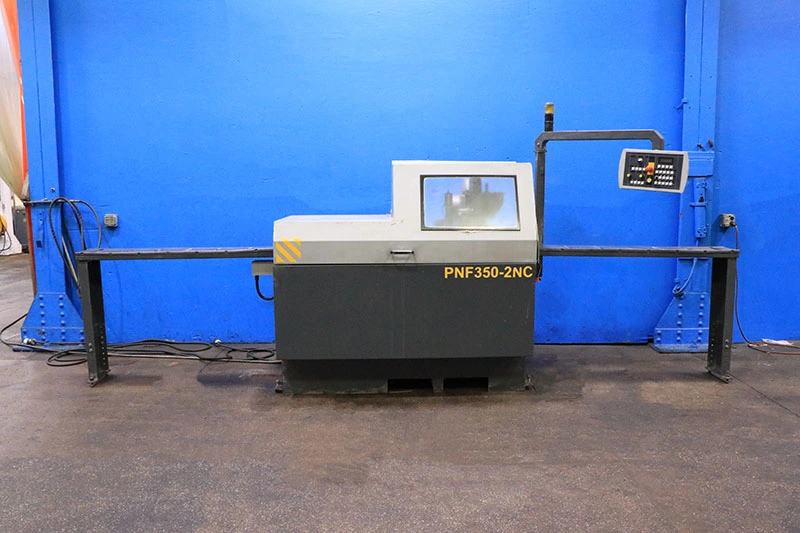

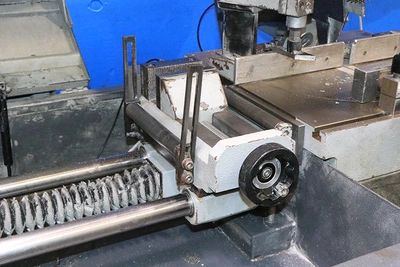

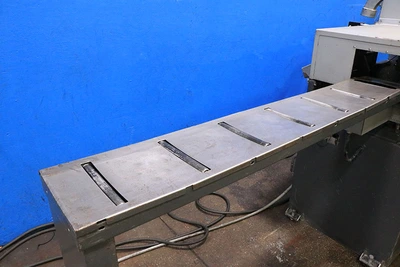

USED 2011 Hyd-Mech PNF350-2N

13.77" Blade Hyd-Mech PNF350-2N COLD SAW

HYDMECH NON-FERROUS COLD SAW

MODEL: PNF350-2N, S/N: 017197, NEW: 2011

SPECIFICATIONS:

CUTTING CAPACITY:

-ROUND (TUBE)

--AT 0 DEGREES .................... 4.72"

--AT 45 DEGREES (RIGHT) ........... 4.72"

--AT 45 DEGREES (LEFT) ............ 4.3"

-SQUARE (TUBE)

--AT 0 DEGREES .................... 4.13"

--AT 45 DEGREES (RIGHT) ........... 3.93"

--AT 45 DEGREES (LEFT) ............ 3.74"

-RECTANGLE (TUBE)

--AT 0 DEGREES .................... 7.08" X 2.75"

--AT 45 DEGREES (RIGHT) ........... 5.3" X 2.36"

--AT 45 DEGREES (LEFT) ............ 5.3" X 2.36"

CUTTING CAPACITY (WITH HEAD ON LEFT)

-ROUND (BAR) ...................... 1.96"

-SQUARE (BAR) ..................... 1.96"

-RECTANGLE (BAR) .................. 6.29" X 1.37"

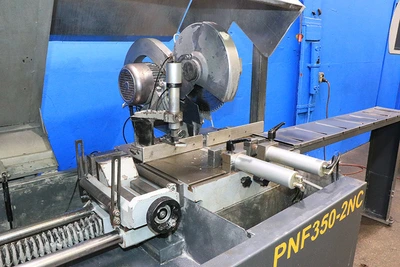

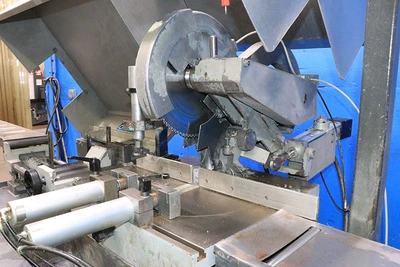

EXTERNAL DISC DIAMETER ............ 13.77"

INTERNAL HOLE DIAMETER ............ 1.25"

BLADE THICKNESS ................... .13"

CUTTING SPEED ..................... 3400

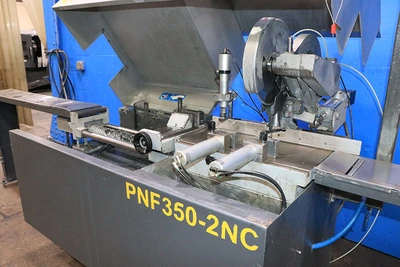

MAX VISE OPENING .................. 7.08"

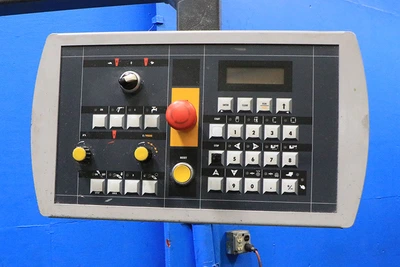

THE MACHINE CAN WORK IN SEMIAUTOMATIC AND AUTOMATIC MODE, AFTER HAVING CLAMPED THE MATERIAL IN THE VISE, THE OPERATER PRESSES THE BLADE START BUTTON. THE DOWNWARD MOVEMENT OF THE HEAD CONTROLS THE CUTTING OF THE MATERIAL ACCORDING TO THE PRESET LENGTH. IN SEMIAUTOMATIC AND AUTOMATIC MODE, THE CUTTING HEAD RETURNS UPWARDS READY FOR ANOTHER CUTTING CYCLE.

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
