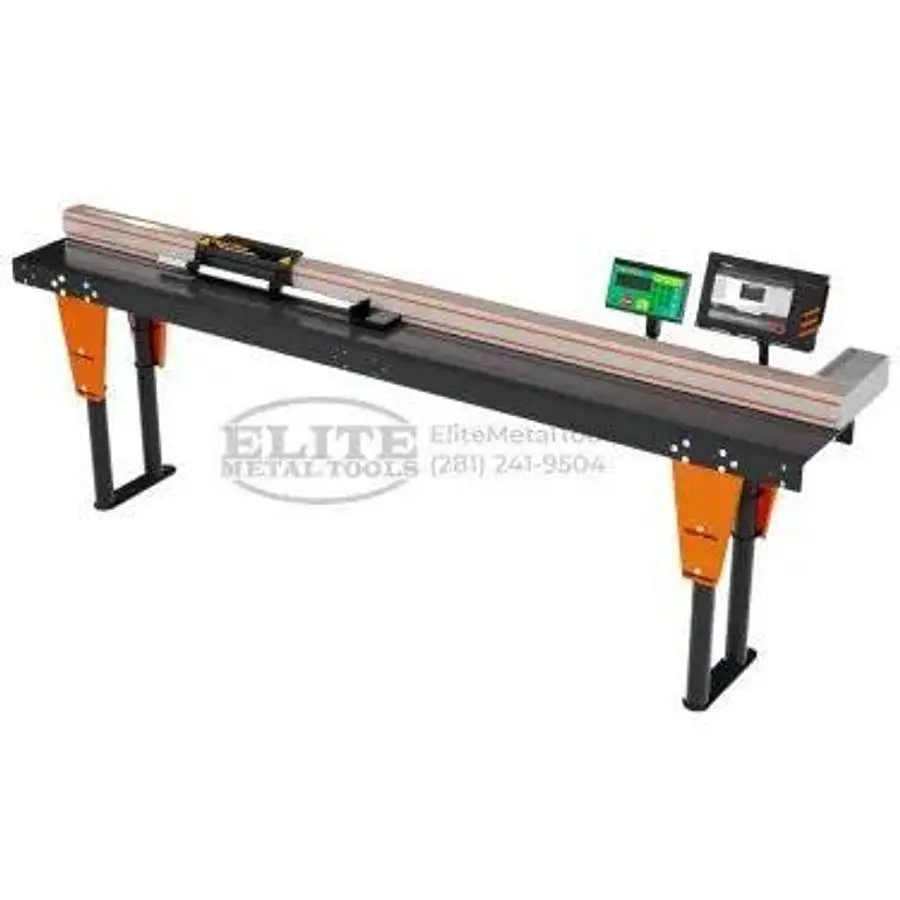

TigerStop 10’ 110V Automated Stop Positioner and Material Pusher with Table Package TS10-PKG
Working Length: 10’
Accuracy: +/- .004”
Drive Type: 32mm Belt (steel reinforced)
Max Load Push: 180 lbs (roller tables)
Description
TigerStop is an automated material pusher and stop that will turn your existing machine into a lean manufacturing asset. Take your operations to a whole new level with the product that started it all. TigerStop can push, pull, and position material up to 180 lbs. Turn your existing manual machine into a fully automatic lean manufacturing asset.
Features
Attach to your new or old machinery
Best in class material optimization with Dynamic Optimization software upgrade
Automatic push feed up to 180 lbs with roller tables
TigerLink 6 cut List Downloading software upgrade
Touch screen control programmable stop system
Push, pull, and position material
Zero Set Up Time – Do away with “measure twice, cut once”. Eliminate tape measures, manual stop blocks, and clamps from your manufacturing process. With automatic length measuring, just type in your desired measurement, place your material, and press start. It’s that simple.
100% Accuracy – The parts you cut today will be as accurate as the parts you cut next week, next month, and next year. Over 70,000 customers have trusted TigerStop’s repeatability since 1994.
No More Rework – Quality control starts with TigerStop. Cut correctly sized parts the very first time so the rest of your manufacturing processes can flow smoothly.
Automation for Any Sized Shop – It doesn’t matter if you have 100 square feet or 1 million square feet of shop floor. Everyone needs to measure parts quickly and accurately. We have solutions for any manufacturer wanting to gain a competitive edge.
Increased Productivity – Keep you operators in the money making zone: cycling your saw, drill or punch.
Easy to Operate – An unskilled operator can be trained to use a TigerStop to automatically push, pull, and position material in under 10 minutes.
Improved Yields – Raw material costs are rising. Using a TigerStop, especially one with Dynamic Optimization software, maximizes yields. That’s profit added to your bottom line.
Specifications
Working Length: 10’
Overall Length: 12’
Accuracy: +/- .004”
Drive Type: 32mm Belt (steel reinforced)
Max Load Push: Solid Tables: 90 lbs
Roller Tables: 180 lbs
Power Requirement: 110V
12’ Solid Steel Infeed Table
6’ Solid Steel Outfeed Table
6’ Back Fence for Outfeed Table
Saw Attachment Plate
Options
Tables of various length and material
Software Packages
Dynamic Optimization: improves material yield by determining the optimal cutting order from your parts list
TigerTouch: download an infinite number of cut lists displaying 3 at a time and view job status statistics
Flooring Optimization: replaces the need to purchase custom floor packaging machines by allowing you to pre-define package lengths
Backboard Optimization: utilizes Dynamic Optimization software in conjunction with a backboard fence and ruler
Cut List Downloading: download cut/part lists from your network and send them to your TigerStop via ethernet cables
TigerSet: opens up a communication port so you can use a PC, PLC, or Barcode Scanner to control the systems
