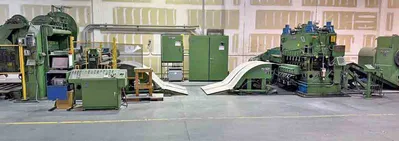

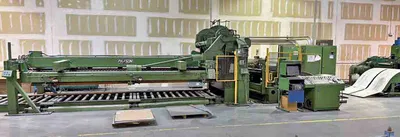

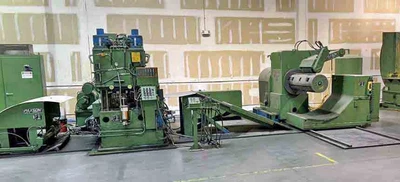

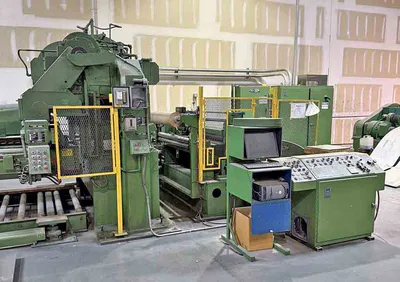

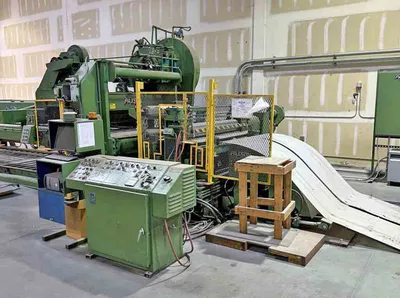

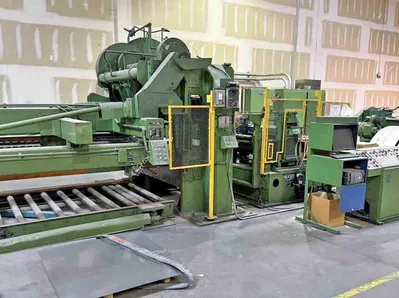

60" x 0.135" x 40,000# Paxson Cut To Length Line

YEAR: 1976
Paxson Cut to Length Line

-Width: 60"
-Thickness: 0.020" - 0.135"
-Coil I.D.: 20" - 24"
-Coil Weight: 40,000 lbs.
-Line Direction: Right to Left

Consisting of the following:

-Entry Coil Car:
Above Floor Type
48" Wide Bed
Distance from Floor to bottom of "V" Cradle: 10" approx.
Hand Pendant Control
Self-Contained Hydraulic Power Unit
Overall Size: 94" L x 52" W x 56" High

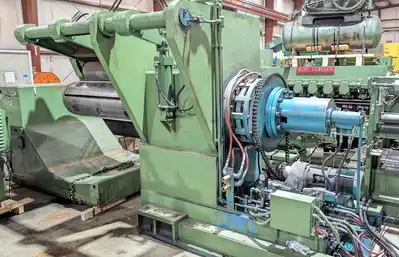

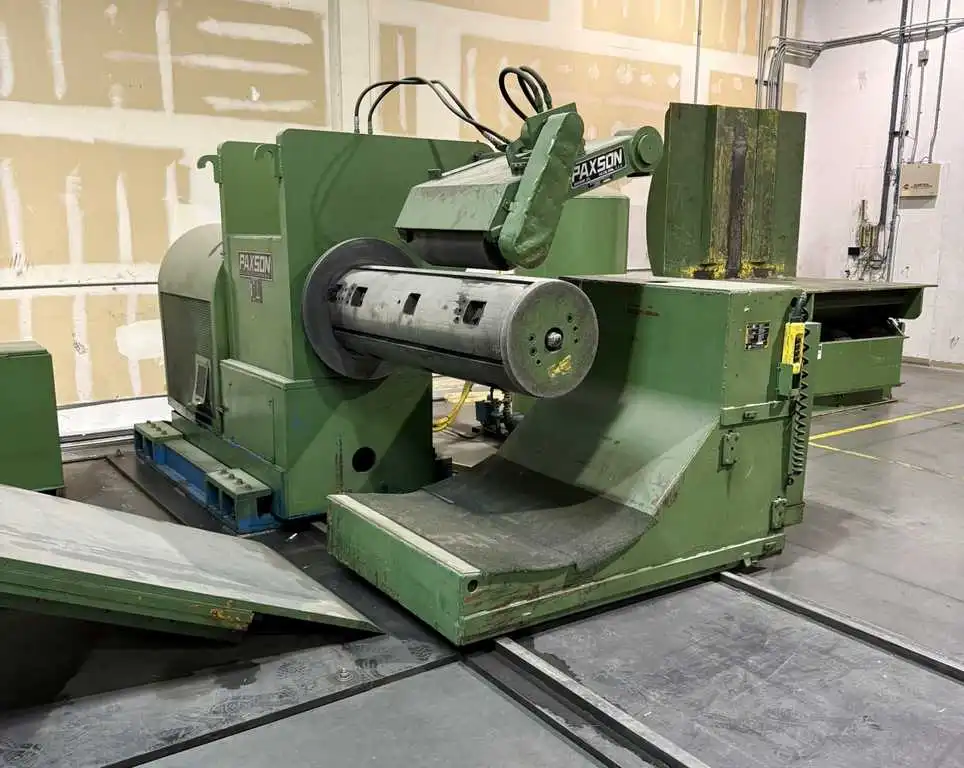

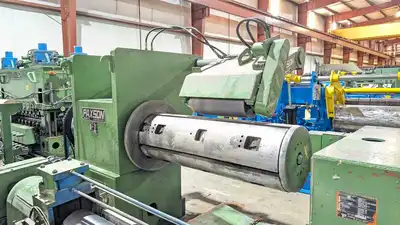

-Uncoiler:
Mandrel Type
60" Face Mandrel
Hydraulic Expansion
Powered Overarm Holddown
Slide Base
Water Cooled Brake
Hydraulic Motor Feedup
Distance from Floor to center of Mandrel: 48"
Overall Size: 166" L x 95" W x 65" High

-Peeler Table:
Hydraulic Lift & Extend

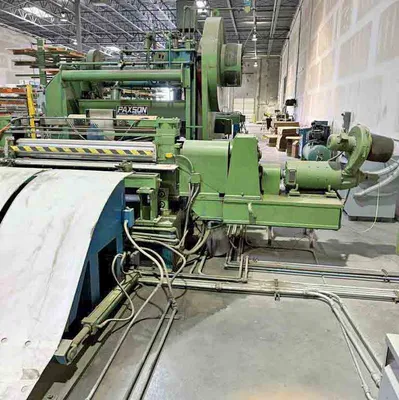

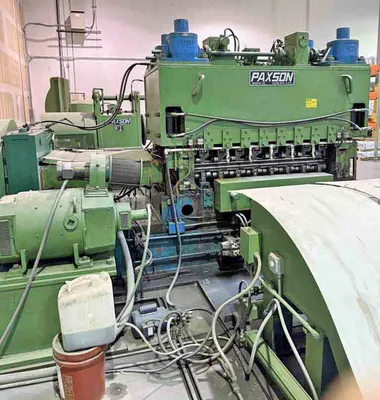

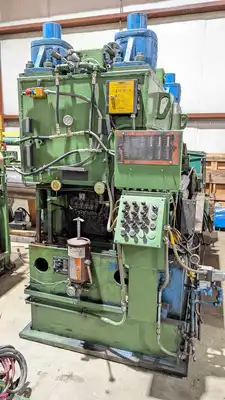

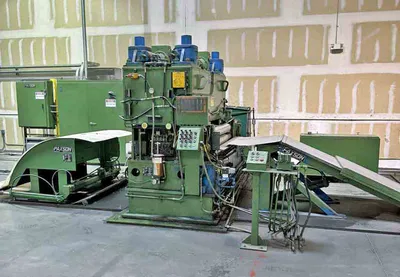

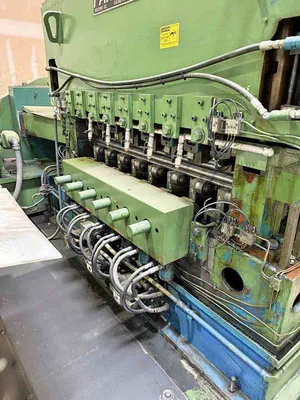

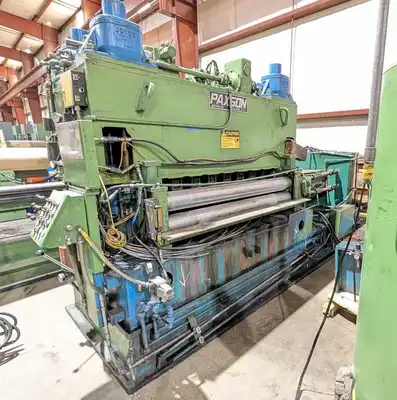

-Paxson Precision Leveler: 6 HI
S/N: 11558-36-8-76

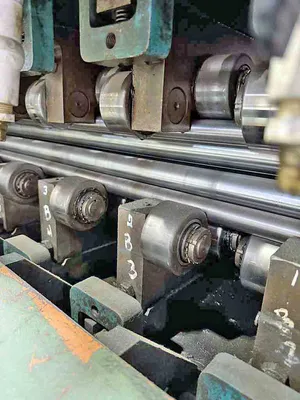

1.750" Diameter x 74" Face Rolls
Entry Pinch Rolls, Powered
8 Flights of Backups, (6 Flights Motorized)
125 HP WER DC Motor, 1750/2000 RPM, 500 V
Overall Size: 181" L x 75" W x 100" High

-Cascade - Loop Table:

-Roll Feed:
Entry Side Guides
Full Width Rolls
Exit Paper Applicator
30 HP Emerson DC Motor

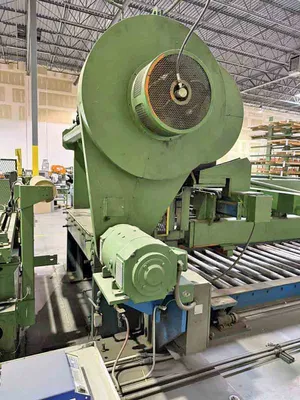

-High Speed Shear:
Over Driven, Mechanical
Manual Blade Gap Adjust
30 HP WER DC Drive Motor, 1750 RPM, 500 V
Air Clutch/Brake

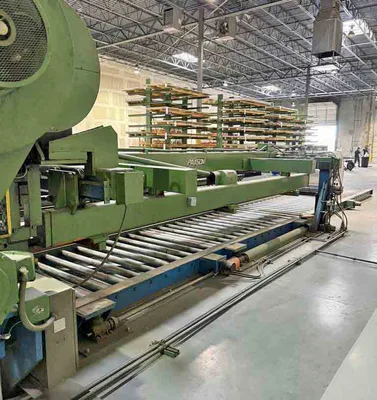

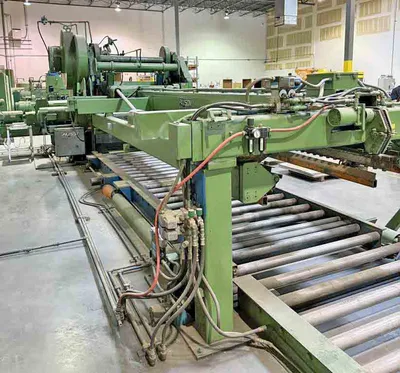

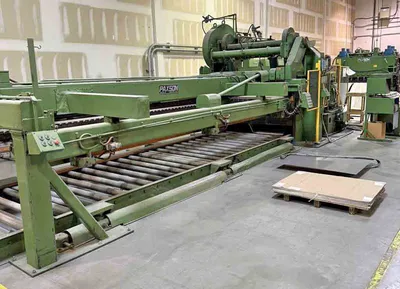

-Automatic Stacker:
Flipper Arm Type
Powered Width Adjustment
Powered Length Adjustment
Non Scratching Roller Supports
20' Maximum Length
Mechanical Screw Jack Lift Table
Powered In-Line Eject Conveyor

-Exit Runout Conveyor:
Powered Rolls

-Main Operators Control Panel:

-Water Cooler:

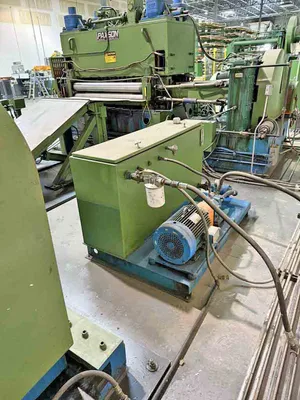

-Main Hydraulic Power Unit:

-Electrical Controls and Drives:

-Line is in Storage: Toledo, OH.
