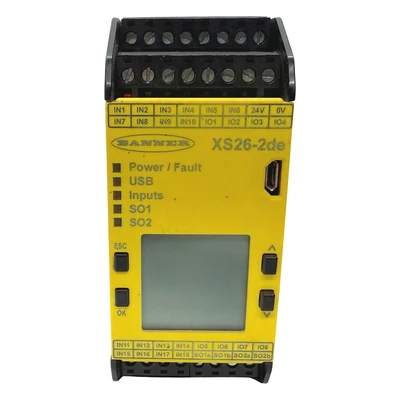

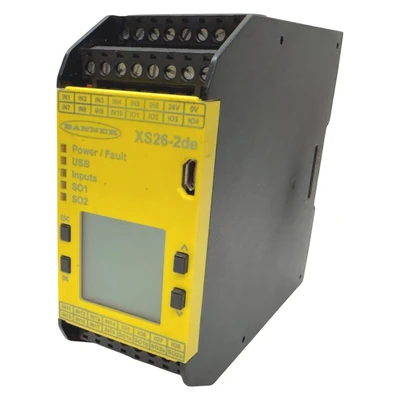

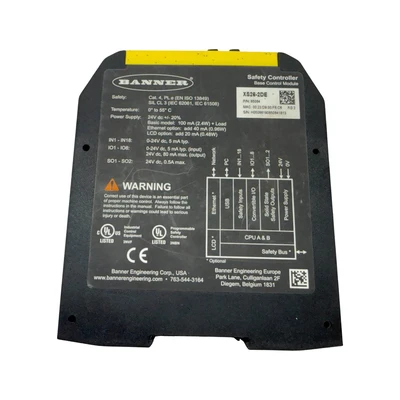

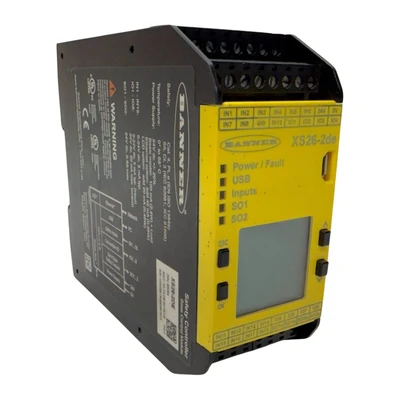

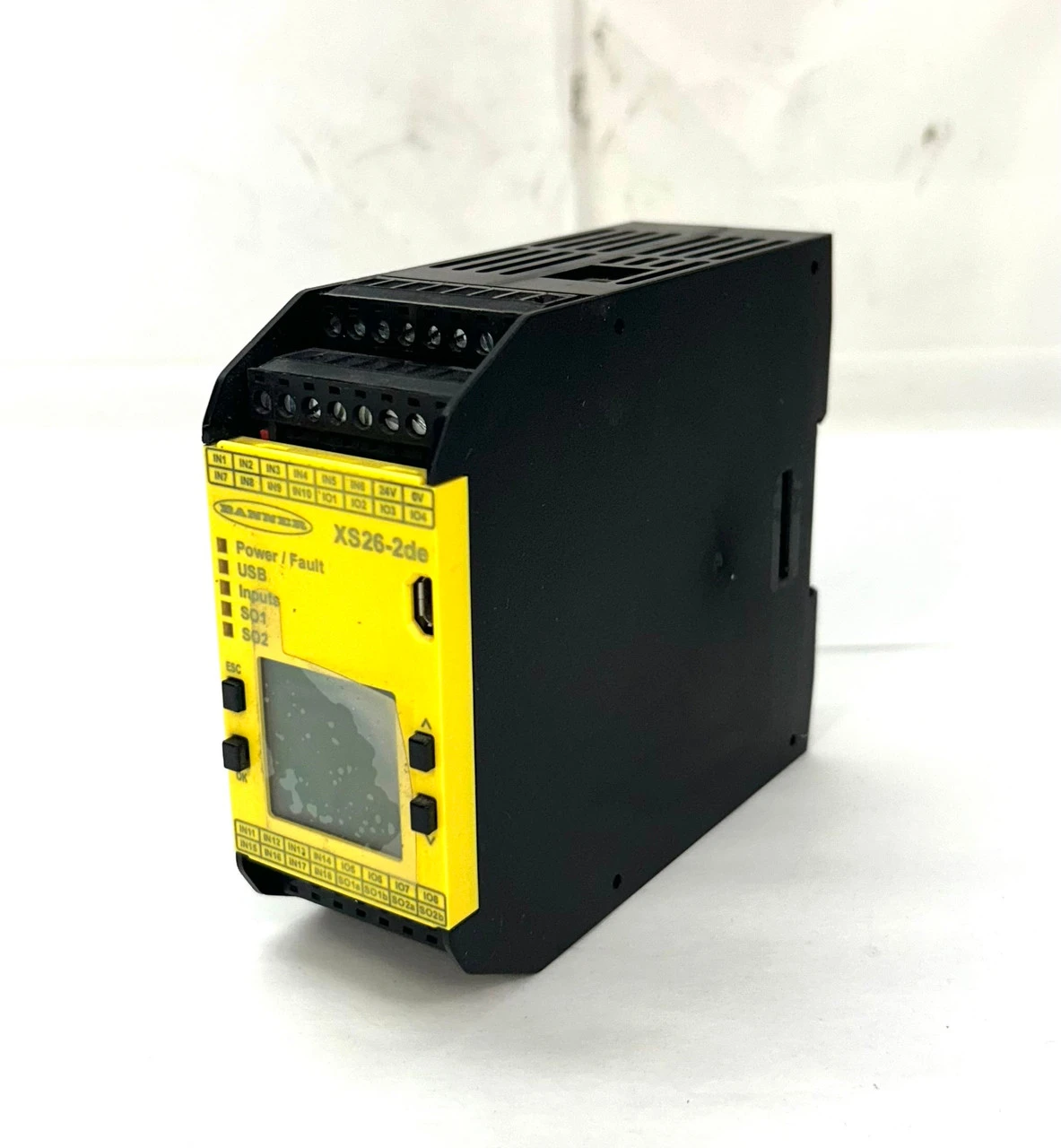

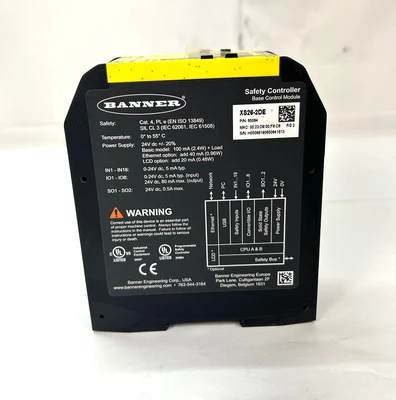

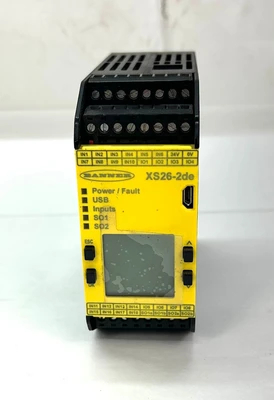

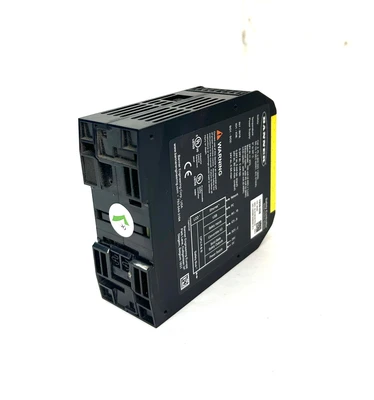

The Banner XS26-2DE is an expandable safety controller designed for comprehensive machine safeguarding applications. This controller features 26 safety inputs, 2 pairs of PNP safety outputs (0.5 A each), an onboard display, and Ethernet connectivity for advanced communication. The system monitors a variety of input devices such as e-stop buttons, rope pulls, enabling devices, protective safety stops, interlocked guards or gates, optical sensors, two-hand controls, and safety mats.
Specification
Value
Brand
Banner
Model/Part Number
XS26-2DE
Product Type
Safety Controller
Series
XS26
Banner Part Number
85064
Input Points
26
Safety Inputs
26 (15-30VDC)
Convertible Inputs
8
Safety Outputs
2 pairs PNP (0.5A each)
Output Type
OSSD (Output Signal Switching Device)
Supply Voltage
24VDC
Current Consumption
160mA
Communication Protocols
Ethernet/IP, Modbus TCP, PROFINET, PCCC
Connection Type
Removable Screw Terminals
Mounting Type
DIN Rail
IP Rating
IP20
Operating Temperature
0°C to +55°C
Safety Rating
SIL CL3, PLe, Cat4
Dimensions (H x D x W)
110 x 129 x 45 mm
Expansion Capability
Up to 8 I/O modules
Display
LCD with diagnostics
USB Port
Yes
Standards Compliance
EN ISO13849, IEC62061, IEC61508, IEC61131-2
We warranty all items for 30 days from date of purchase.
| Weight | 2.00 LBS | 2.00 LBS |
SKU: IP15278
UPC: 721814240962
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814240962
Manufacturer: Banner
Part Number: XS26-2DE
Shelf: F-18 Tub 17
Model: XS26-2DE
MPN: XS26-2DE
Type: Safety Controller Module
Mounting Style: DIN Rail
Current Rating: 0.16 A
Application: Industrial Safety Control
