| Swing | 39.308" | 998.42 mm |
| Centers | 235.85" | 5,990.6 mm |
| Spindle Bore | 3.223" | 81.864 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,400 RPM | 1,400 RPM |
| Swing Over Cross Slide | 28.302" | 718.87 mm |
Rebuilt 2007
Specifications (Subject to buyer verification):
Bed Profile - Flat
Swing over Bed - 39.5"
Swing over cross-slide – 22.25"
Spindle bore dia. - 5.03"
Spindle nose - D-11

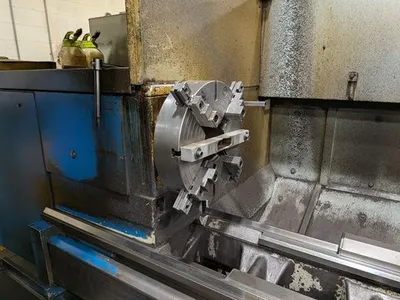

Chuck - 4 jaw manual
Spindle RPM - 1800
Turning lengthC/C distance – 157.5"

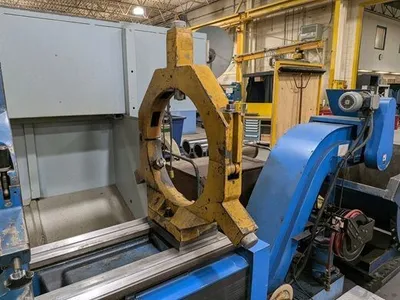

Steady Rest capacity – 24.75"

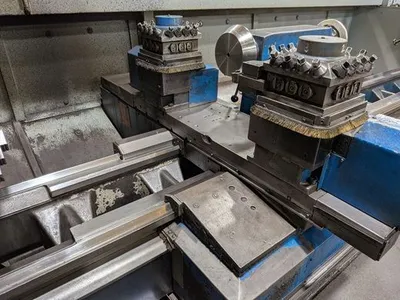

Turret design - Horiz. X 2-4 pos
Live tooling – No
Y axis - No

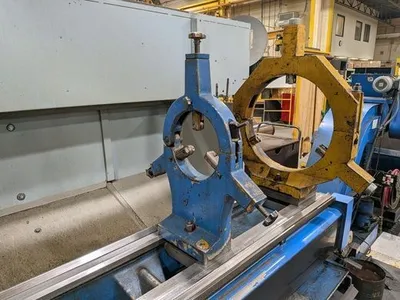

Tailstock - 3.5"/ft

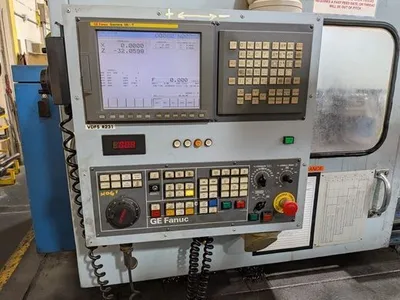

Control - Fanuc 18i TB
