USED FIMI 2000mm x 10mm x 60,000Lb Cut to Length Line
Specs
Make: Fimi (Italy)
Year New: 1980
Material Width: 750mm - 2000mm
Material Thickness: 2.5mm - 10mm
Coil Weight: 30 ton
Coil ID: 600mm - 810mm
Coil OD: 1000mm - 2000mm
Yield: 280 - 420 n/mm2
Speed: 30 meters per minute
Direction: Right to Left
Entry Coil Car
Lifting Height: 700mm
Powered Lift and Traverse
Double Mandrel Uncoiler
Mechanical Brake
Powered Hold - Down Roll
Entry Pinch Rolls
Coil Straightening Machine
Adjustable Working Rolls
DC Motor Drive
Edge Guiding Rolls
Telescopic Breaker Table
Driven Pinch Rolls

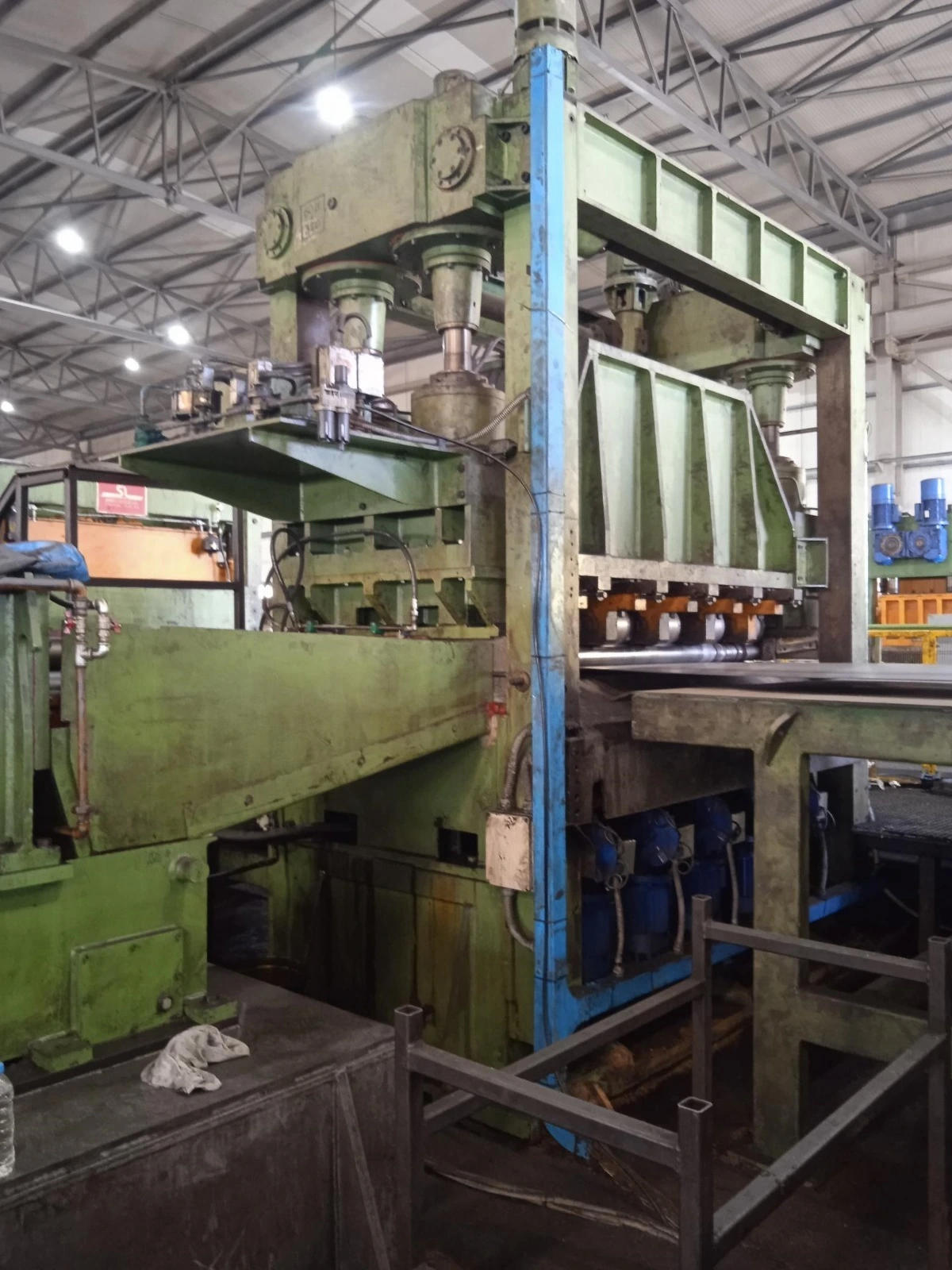

Fimi 6-Hi Precision Leveler
Work Rolls Width: 2340mm
Work Rolls Diameter: 100mm
Number of Work Rolls: 11
Powered Lower Rolls Adjustment
Powered Tilting
Motor: 130Kw DC
Belt Run Out Conveyor
Flying Shear
Blade Width: 2050mm
Sheet Length: 20mm - 10,000mm
Clutch and Brake Assembly
Main Drive Hydraulics
Speed: 30 m/min
Motor: 11Kw AC
Inspection Belt Conveyor
Stacking System
Stacking Length: 1000mm - 12000mm
Max Weight: 7 ton
Motor: 12Kw
Powered Exit & End Conveyors
Electrics, Hydraulics, Controls, Spare Parts
