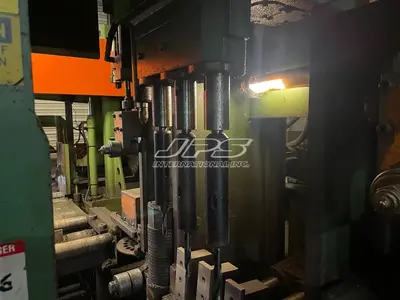

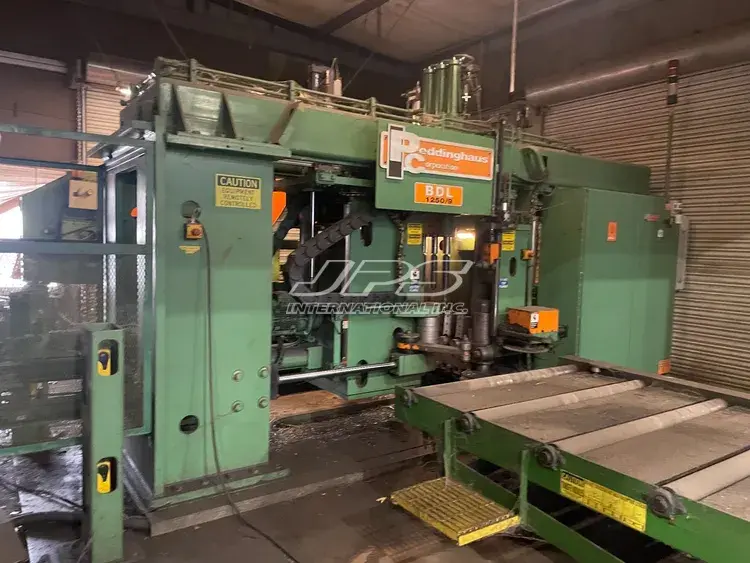

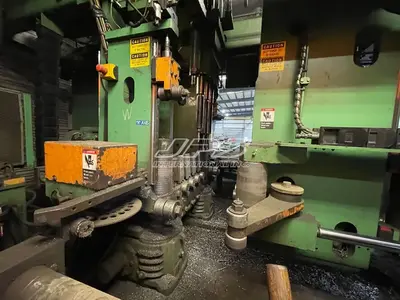

PEDDINGHAUS BDL-1250/9 BEAM DRILL LINE AND MEBA 1140-510 BAND SAW WITH MATERIAL HANDLING
New Serial No. 515682005 New 2005
EQUIPPED WITH:
Infeed: 72'- 4" with 4 transfers at 21'
Outfeed: 65' with 4 transfers at 27'
SPECIFICATIONS:
Max. Profile Width 49"
Min. Profile Width 3"
Max. Profile Height 24"
Spindle Power 15 HP
Spindle Speed 900 RPM
Saw Capacity Cutting Capacity at 90°: Ø 20" / 44.9" × 20"
Saw Band Speed 49-492 ft/min
Saw Band Size Saw Blade Dimensions: 385.8" x 2.64" x 0.06"
Infeed Conveyors 72'
Infeed Transfers 21"
Outfeed Conveyors 65'
Outfeed Transfers 27'
Power Requirements 480 Vlots 70 Amps 60 Hz
Control CNC (Siemens CNC Control)

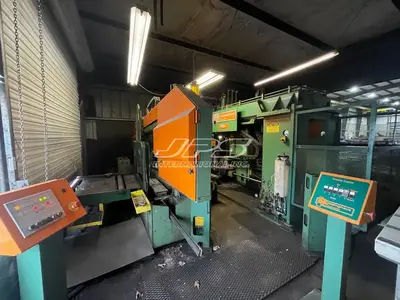

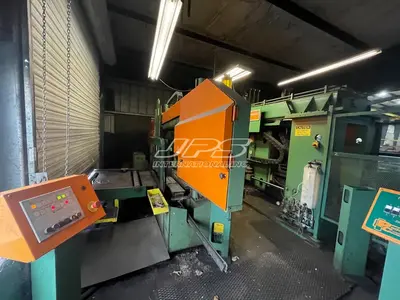

2005 MEBA 1140-510 Band Saw
Serial No. 1737379
Specifications:
Type: Semi-automatic
Cutting Capacity at 90°: Ø 20" / 44.9" × 20"
Motor Power: 19.4 HP
Saw Blade Dimensions: 385.8" × 2.64" × 0.06"
Saw Blade Speed: 49–492 ft/min
Length of Remaining Piece (without Bundle Clamp):
Manual: 0.87"
Length of Remaining Piece (with Bundle Clamp):
Manual: 8.86" / 16.93"
Maximum Material Size (with Bundle Clamp): Ø 20" / 44.9" × 20"
Minimum Material Diameter: Ø 0.39"
Machine Dimensions (L × W × H): 37.4" × 183.1" × 94.5"
Working Height: 24.8"
Weight: 10,141 lbs
