USED RUESCH NOT SPECIFIED

Width: 10.5 inches

Manufacturer: Ruesch (USA)

Model 210

UPGRADED TO NEW ELECTRICS AND CONTROLS

Work Roll Driven

Material: Low and high carbon steels

O.D.: Max. 61" (1549mm)

Min. none

I.D.: Max. 24" (610mm)

Min. 18" (457mm)

Width: Max. 9" (229mm)

Min. 1.88" (48mm)

Gauge: Max. .375" @ 6" (9.5mm @ 152mm)wide

Min. .015" (.38mm)

Coil Weight: Max. 7,000 lbs. (3.2 Tons)

EXIT SECTION -

I.D.: 18" (457mm), 20" (508mm), 22" (559mm), 24" (610mm)

O.D.: Max. 61" (1549mm)

Coil Weight: Max. 7,000 lbs. (3.2 Tons)

Gauge: Min. .010" (.25mm)

Speed: Max. 1,000 fpm (305 MPM) (low tension)

500 fpm (high tension)

Tension: 3300 lbs. (1.5 MT) @ 1000 fpm (305 MPM)

6600 lbs. (3 MT) @ 500 fpm (152 MPM)

WORK ROLL -

4" (102mm) Diameter

10.5" (267mm) Face

5.63" (143mm) Journals

Back-Up Roll

9" (228mm) Diameter

10.5" (267mm) Roll Face

Complete With:

Coil Lift Box

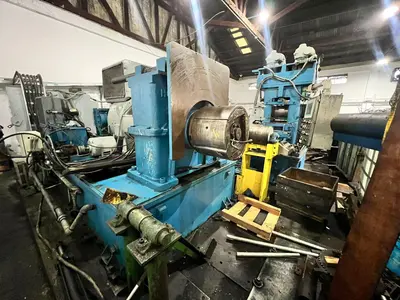

Mandrel Uncoiler

4 Leaf Hydraulic Expansion

Hold Down Roll

Wichita H2O Cooled Brake

Sliding Base

Peeler Table

Feed-Up Table

2 Winders

DC Driven

Hydraulic Push-Off

Full Hydraulic Drum

Horsburgh & Scott Gear Boxes

100 HP DC Drive 300/1800 RPM

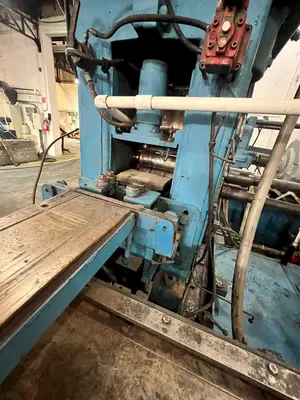

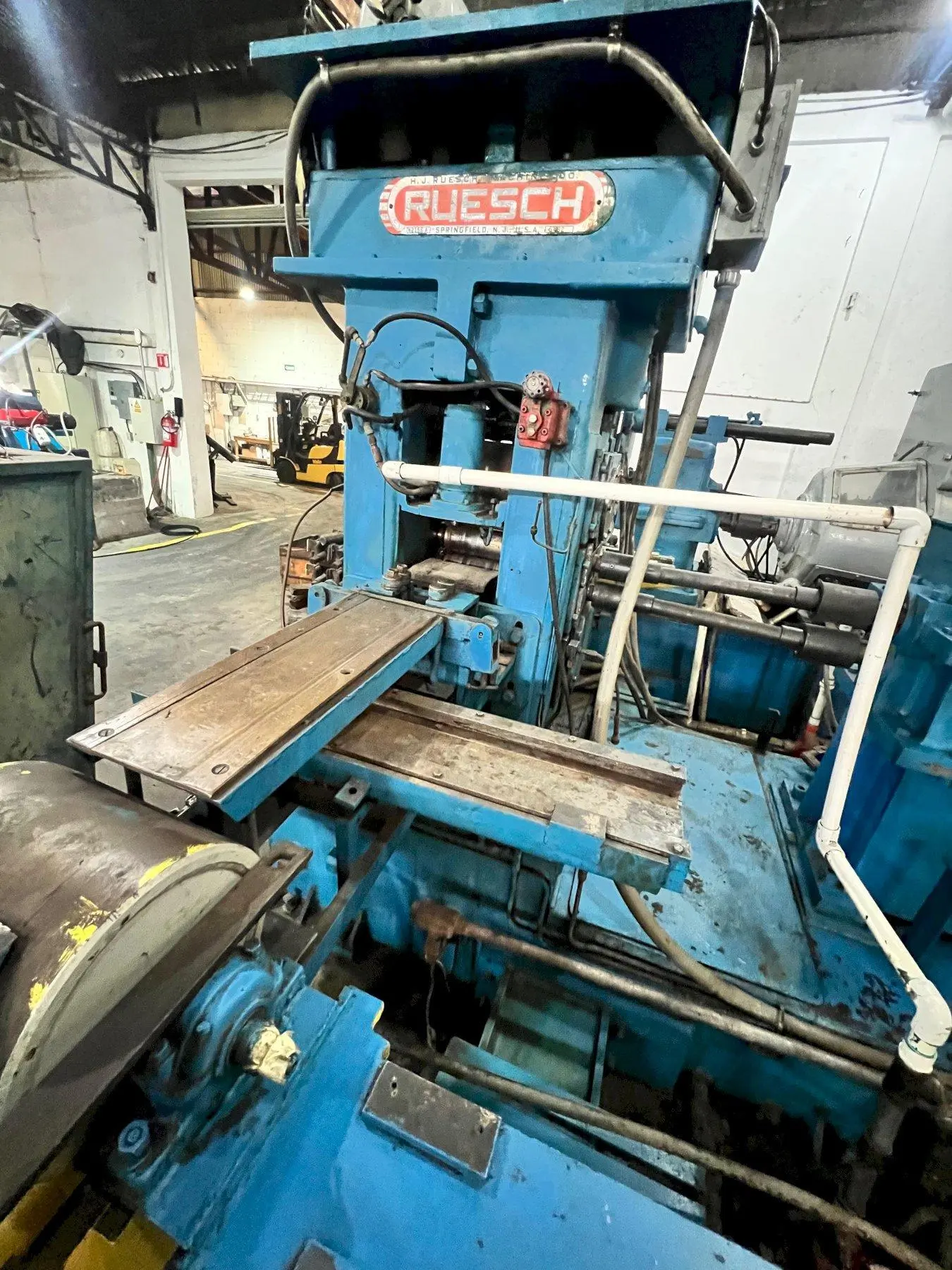

Ruesch 4-High Rolling Mill

Motorized Screw Downs

Timken Roller Bearings

300 HP DC Mill Drive

(2) 2 Arm Exit Turnstiles

Hydraulic Push-Offs

Hydraulic Rotation

UPGRADED TO SIEMENS SIMATIC Touch Screen

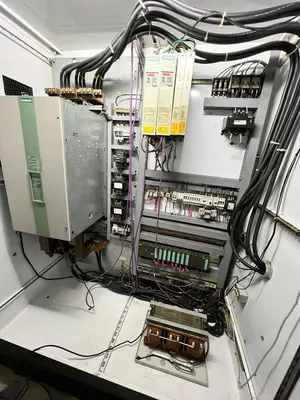

UPGRADED TO SIEMENS SIMOREG DIGITAL DRIVE

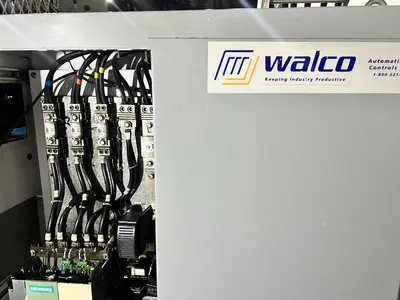

UPGRADED TO WALCO  ELECTRICS

Spare Work Rolls

Spare Back-Up Rolls 2 Sets with Bearings

Post's are 8.5" x 7.38" (216mm x 187mm)

Complete With All Engineering Drawings, and Hydraulics

INSTALLED AND RUNNING

Videos of Mill Running Available
