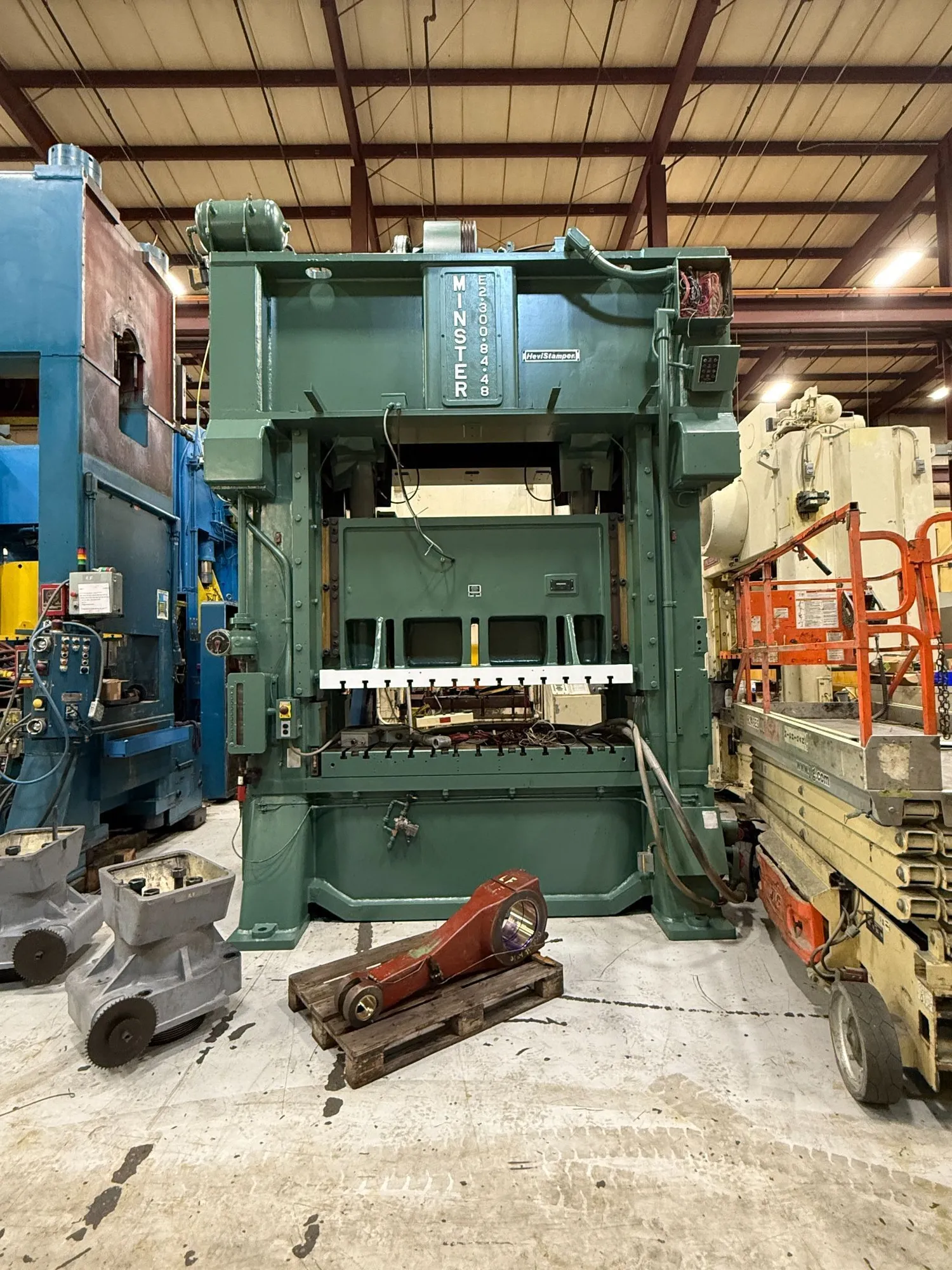

MINSTER E2-300 HEVISTAMPER, offers 300-ton capacity, 12" stroke, 84" x 48" bed, max 80 SPM. Equipped with air clutch/brake, recirculating lube, and Wintriss control. Features motorized ram adjustment and hydraulic tie rods.
| Tonnage | 300 T | 272.156 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 30" | 762 mm |
| Bed area (Left to right) | 84" | 2,133.6 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM min. | 0 strokes/min. | 0 strokes/min. |
| SPM max. | 80 strokes/min. | 80 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 27" | 685.8 mm |
Model Number..............................E2-300-84-48
Serial Number……………………………… E2-300-24499
Year of Manufacture…………………...1982
Bed Area........................................ 84” x 48”
Slide Area…………………………………..... 84” x 48”
Stroke............................................ 12”
Strokes per Minute........................ 0 - 80
Shut Height……………....................... 30” over bed
Bolster Plate……………………………….... 7” thick t-slotted plate
Slide Adjustment........................... 6”
Windows…………………………………….... 27” wide
Main Motor…………………………………... 50 HP @ 1800 RPM
Floor to top of bed……………………….. 38”
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve
Wintriss Smart Pac Press control
Floor Standing Console Mounted
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
Hydraulic Tie Rod Nuts
