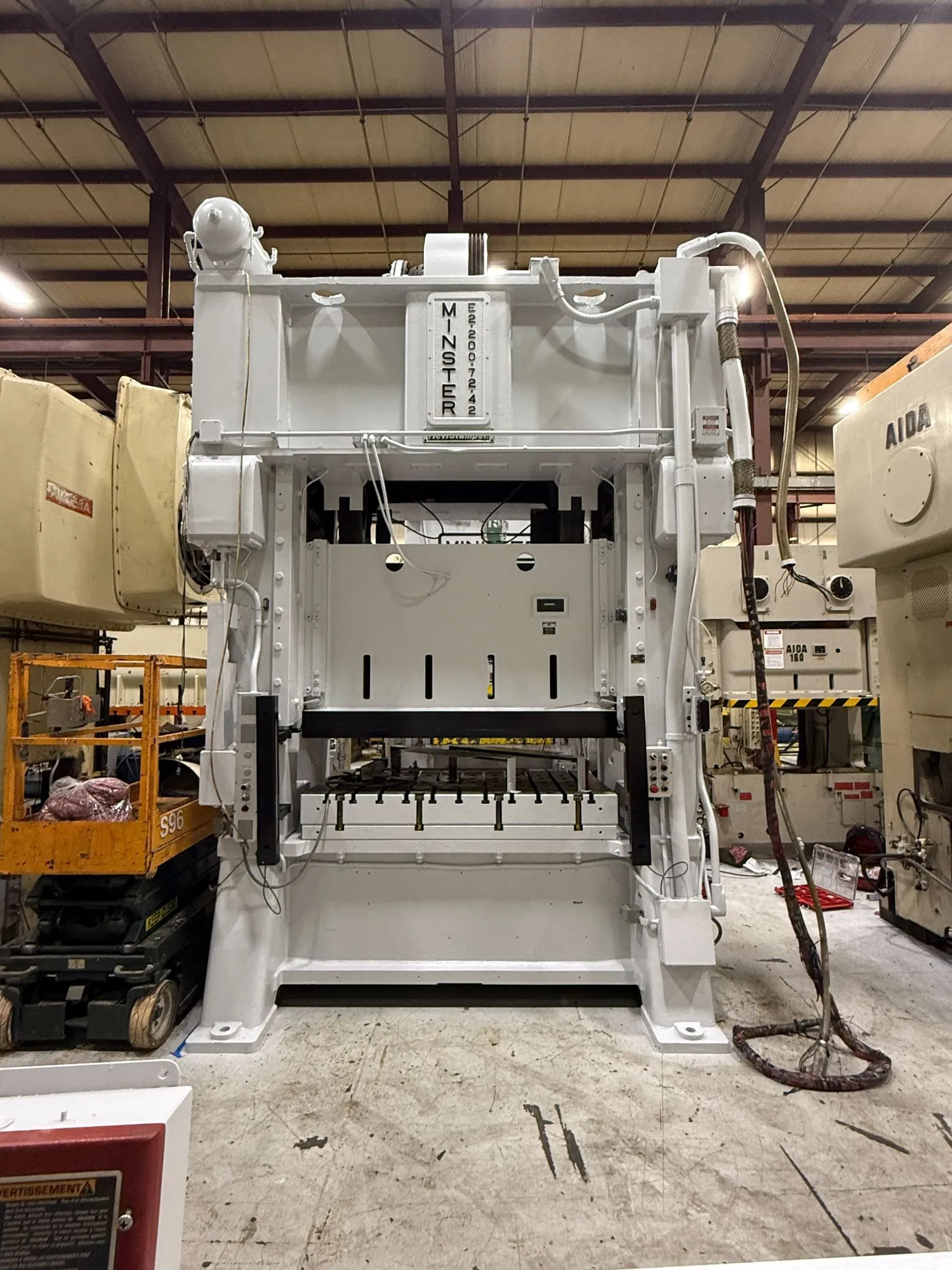

For sale: MINSTER E2D-200 Straight Side Mechanical Stamping Press (1978, used). 200 Tonnage, 8" Stroke, 71"x42" Bed. Features include air clutch/brake, recirculating lube, and Wintriss Smart Pac. 0-60 SPM range.
| Tonnage | 200 T | 181.437 t |
| Stroke | 8" | 203.2 mm |
| Shut Height | 31" | 787.4 mm |
| Bed area (Left to right) | 71" | 1,803.4 mm |
| Bed area (Front to back) | 42" | 1,066.8 mm |
| SPM min. | 0 strokes/min. | 0 strokes/min. |
| SPM max. | 60 strokes/min. | 60 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 27" | 685.8 mm |
Model Number..............................E2D-200
Serial Number……………………………… E2D-200-23400
Year of Manufacture……………………1978
Bed Area....................................... 71” x 42”
Slide Area………………………………….....71” x 42”
Stroke.............................................8”
Strokes per Minute........................0-60
Shut Height…………….......................27.5” over bed
Bolster Plate………………………………....3.5” thick t-slotted plate
Slide Adjustment............................6”
Windows…………………………………….... 27” wide
Main Motor…………………………………... 30 HP @ 1800 RPM
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Bolster ( On 6” centers)
Dual Ross Air Valve
Wintriss Smart Pac Press control
Floor Standing Console Mounted
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
