NEW ALLEN BRADLEY MPL-B4540F-MJ24AA
Overview
Description

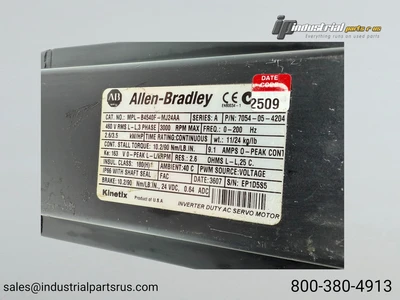

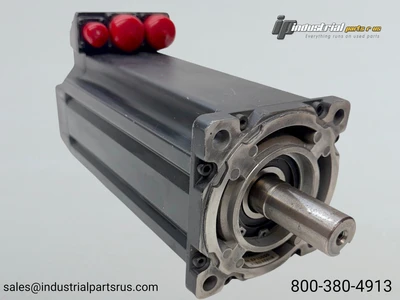

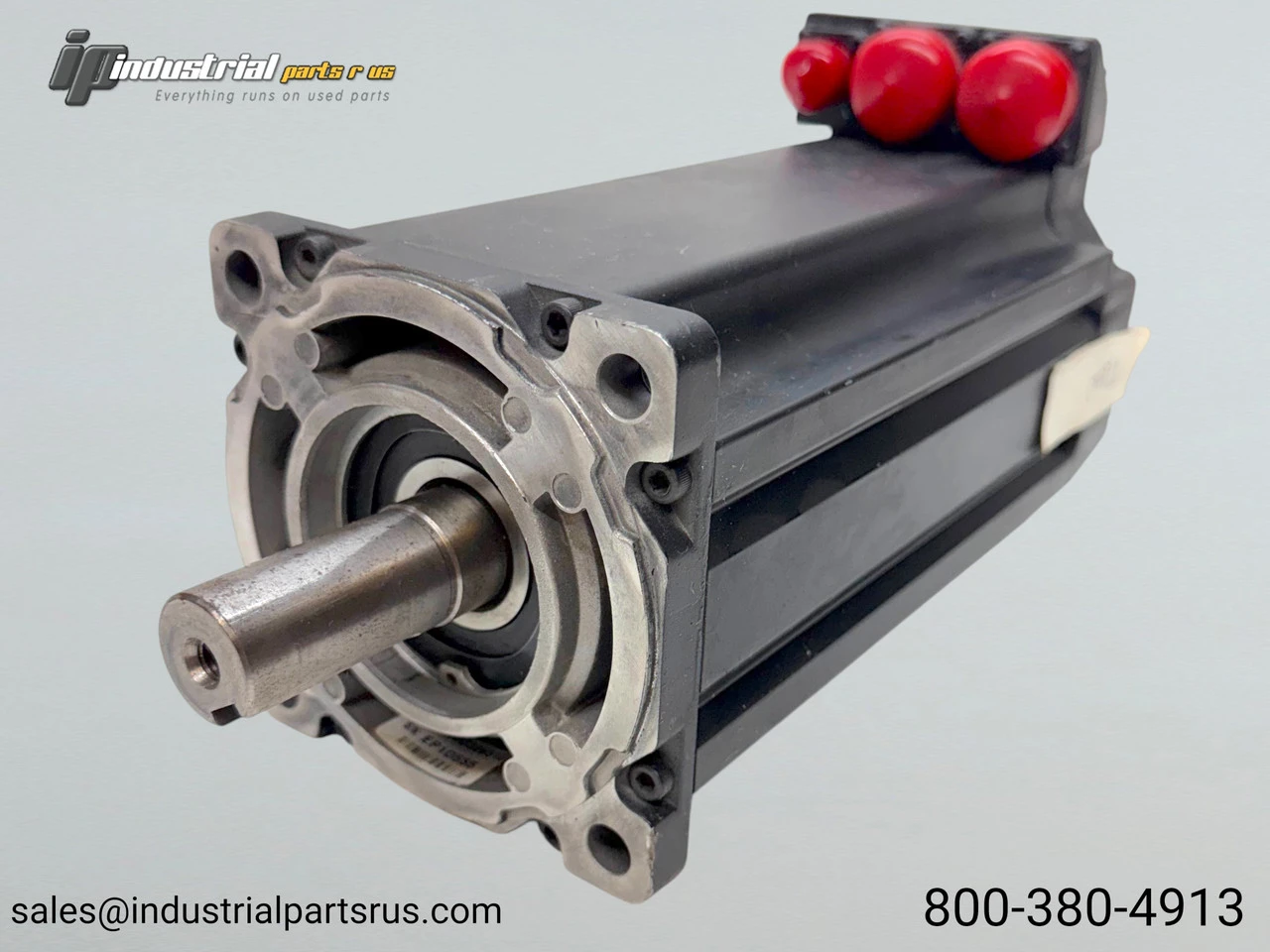

Allen Bradley MPL-B4540F-MJ24AA AC Servo Motor.
New NOT IN ORIGINAL PACKAGING with 30 Day Warranty. This motor has not been used, but is not in the original package and may show small scratches. Only cosmetic.
- Series : A
- Volts : 460 V
- Phase : 3 Phase
- RPM Max : 3000 rpm
- Frequency : 0-200 Hz
- KiloWatts : 2.6/3.5 kw
- Time Rating : Continous
- Cont. Stall Torque : 10.2/90 Nm/Lbs
- Amperage : 9.1 A
- Insulation Class : 180 (H)
- IP : IP66 With Shaft Seal
- Break : 10.2/90 Nm/Lb.In , Volts : 24 VDC , 0.64 ADC
MADE IN USA
Specifications
| Weight | 27.00 LBS | 27.00 LBS |
|---|
SKU: IP16063
UPC: 721814246414
Condition: New
Availability: In Stock
Weight: 27.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Free Shipping
GTIN: 679523696139
Country/Region of Manufacture: USA
Manufacturer: Allen Bradley
Shaft Diameter: 23.9mm
Part Number: MPL-B4540F-MJ24AA
Shelf: H-19
Model: MPL-B4540F-MJ24AA
MPN: MPL-B4540F-MJ24AA
Type: MPL-B4540F-MJ24AA
Series: A
Controller Platform: Kinetix
