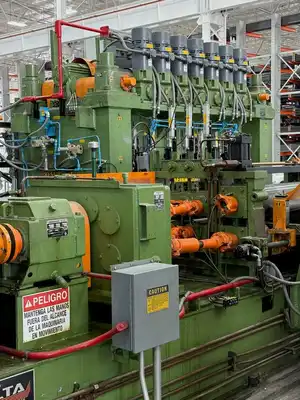

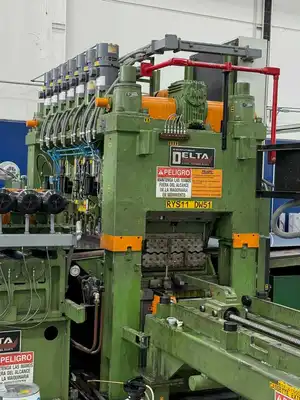

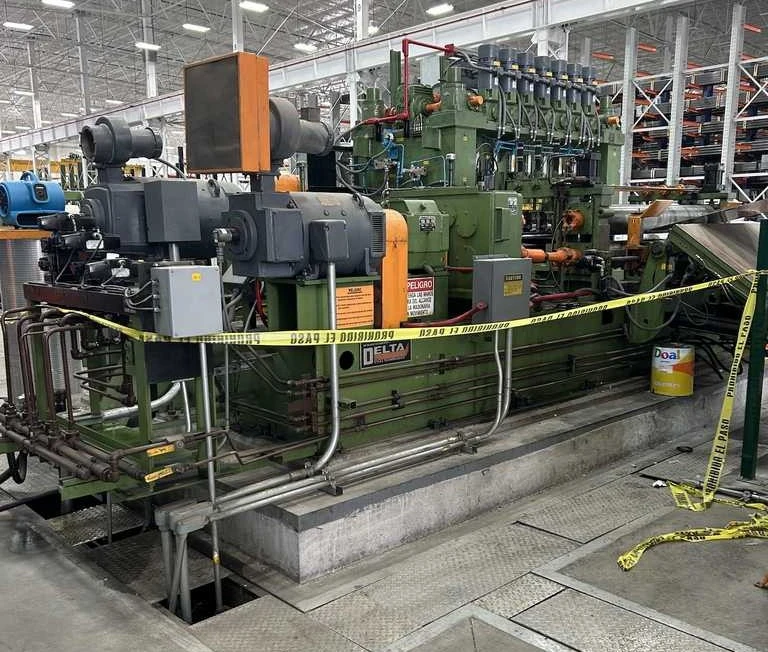

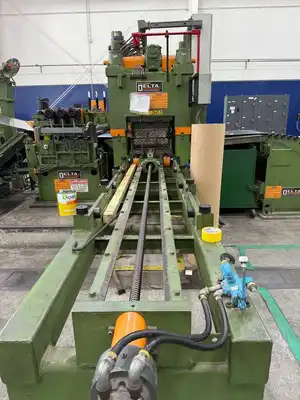

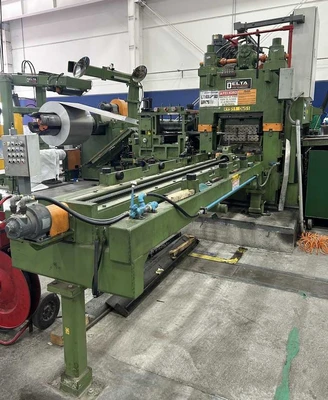

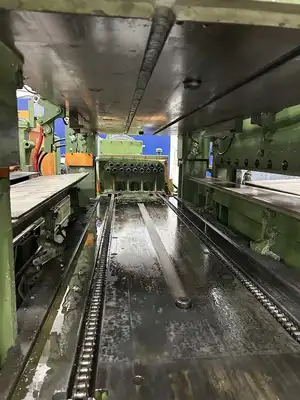

Used Delta Precision Cassette Leveler
-Materials: Steel, Aluminum, Copper and Brass
-Width: 61.50" (72" Roll Face)
-Capacity: 0.020" - 0.135"
-Max. Yield Strength: 50,000 PSI
-Line Speed: Variable to 250 FPM
-Line Direction: Left to Right
Consisting of the following:
-Main Leveler Unit:
7 Flights of Powered Backups

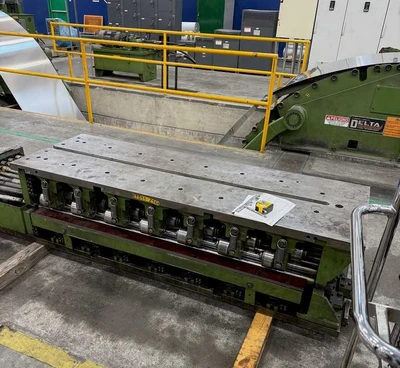

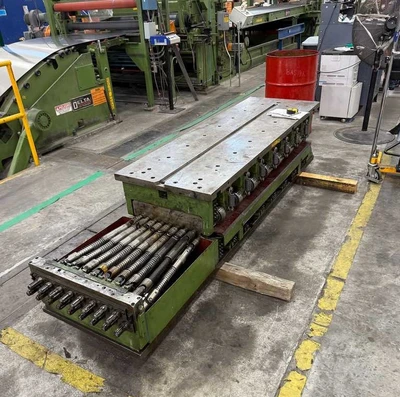

-Cassette #1:
Crane Removable
5 HI Configuration
17 Work Rolls, 1.75" Dia. x 72" Face
-Cassette #2:
Crane Removable
4 HI Configuration
17 Work Rolls, 2.00" Dia. x 72" Face
-Cassette Ejector Arm:
-Transmission Unit:

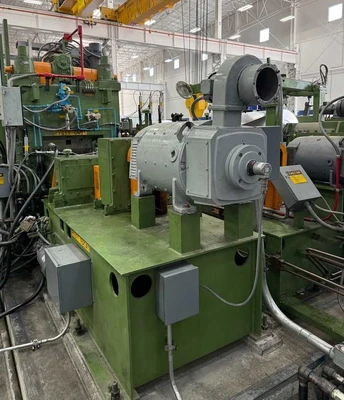

DC Motor w/Blower
Main Gearbox
Distribution Gearbox
-Drawings / Manuals:
-Items not included with the Leveler:
-AC/DC Drives
-AC/DC Cabinets/Controls
-AC Starter Panel
-Operators Console
