904364.002

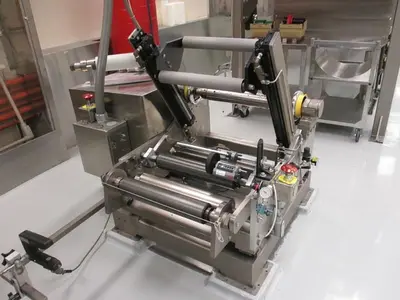

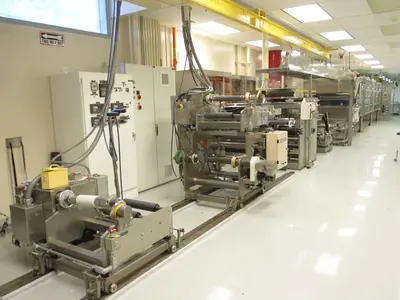

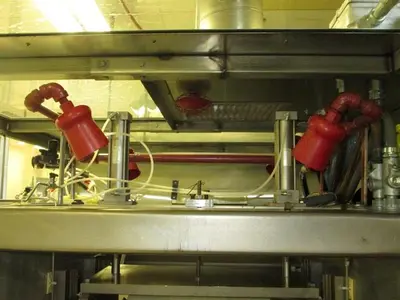

One (1) 14" May Coating Technologies Pilot Coating Line

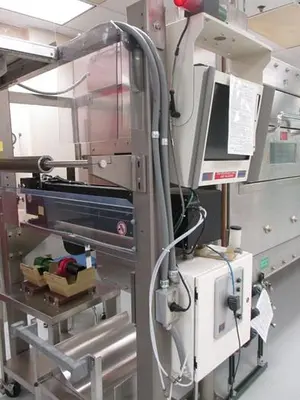

Allen Bradley controls

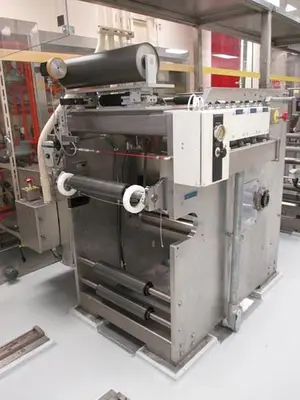

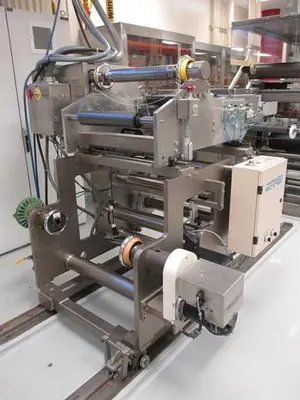

Two unwind stations, 18" diameter, 3" core
Web steering
Web tension rewinds: .25 - 4 Pli
Web tension unwinds: .25 - 7 Pli

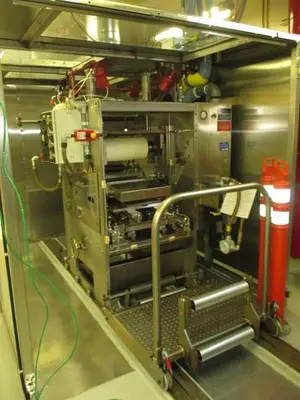

Two coating stations, 14" maximum coating width. 16" face rollers
Coating station 1: Knife over roll, presure feed die, kiss gravure, gravure, hot-melt die coating
Coating station 2: Gravure only

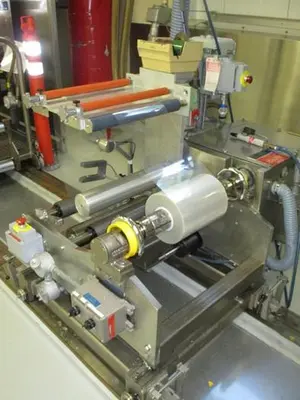

One laminating station/vacuum roll
16" diameter vacuum pull roll
8" diameter steel laminating roll, hardchrome plated, up to 40 Pli nip pressure
Speed: 2 to 150 fpm

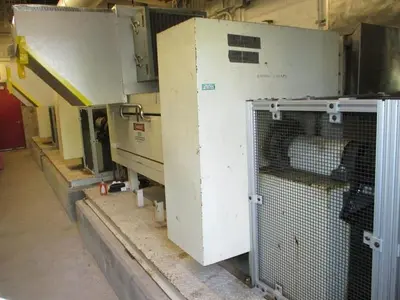

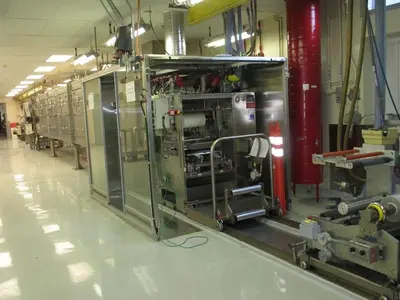

One oven, 3-zone 30 ft long; 400 degrees airbar exit temperature
Burner firing rating: 1,500,000 btu / hr
Two Rewinds; 18" diameter, 3" core
Web materials: Paper liner 3-6 mils, Cast and extended films 1 -10 mils, Foam 20 mils

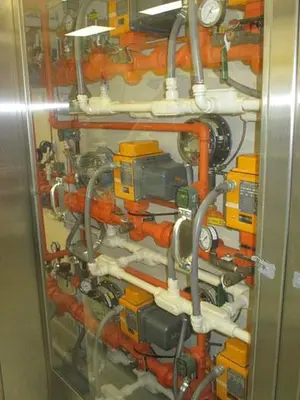

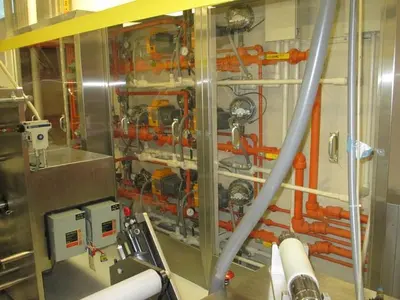

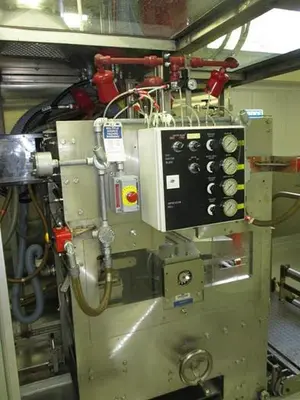

Gas Lines with Valves and Gauges, Electrical Panels and control panels

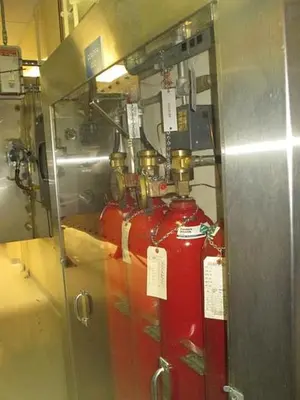

CO2 Fire Suppression System
