USED KALAMAZOO S8W

**BRAND NEW**

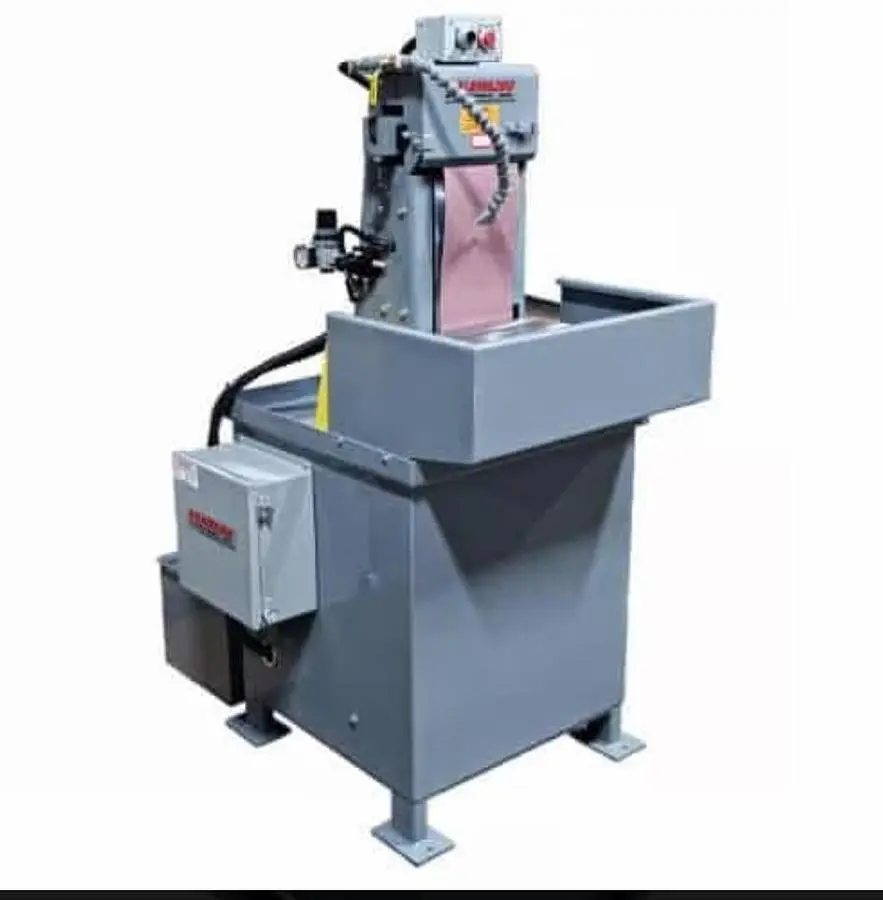

S8W 8 X 60 INCH VERTICAL WET BELT SANDER
S8W 8 x 60 inch vertical wet belt sander has a powerful 7.5HP motor and a belt speed of 3500. This quality machine features will help save time and increase production. The coolant system with this industrial helps keep your metal cool, so the metal properties don’t change during production sanding.
All wet 8″ x 60″ wet belts will work with this belt sander so you can achieve your desired finish.
MACHINE SPECIFICATIONS

8″ x 60″ belt.
7-1/2 HP 3 PH 220V/440V motor.
Air belt tension 40-50 PSI required.

Belt size: 8″ x 60″

Belt speed 3500 SFPM

Sander amp draws 230V 20.2 amps/440V 10.1 amps.

Pump amp draws: 230V is .9 amps/460V .52 amps.
Magnetic controls
24V at on/off switch with jog button.
Twin V-belt drive.
Steel stand and frame.
One knob belt tracking system.
Pump and steel tank system with splash bar with flow control valve.
Replaceable and replaceable steel platen.
Adjustable platen leveling pins.

Platen working surface: W 8″ x H 13″.
Steel platen that can be replaced and rotated.

Steel platen size: W 8.5″ x H 15″.
Adjustable and replaceable cast iron work table.

Work table work dimensions: 8″ x 12″ and with a 5/8th inch slot for a mitre gauge.

Machine shipping dimensions: L 55″ x W 39″ x H 74″.

Machine shipping weight: 775 lbs.

THIS WET MULTI-PURPOSE SANDER IS DESIGNED TO DO THE FOLLOWING

Bevel
Deburr
Square-up ends
Round flat corners
Flattening
Wet polishing
Clean up work
Shaping
Sharpen
Smoothing
Production sanding
Production deburring
