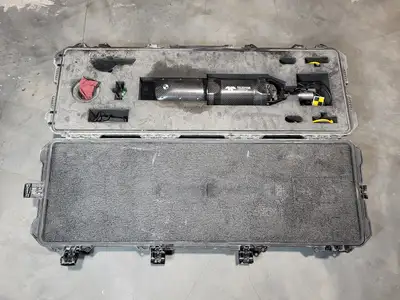

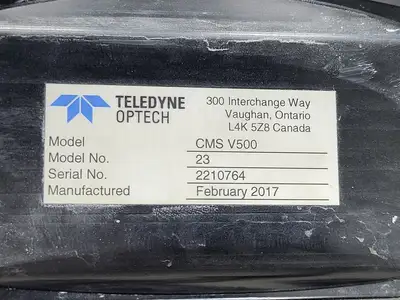

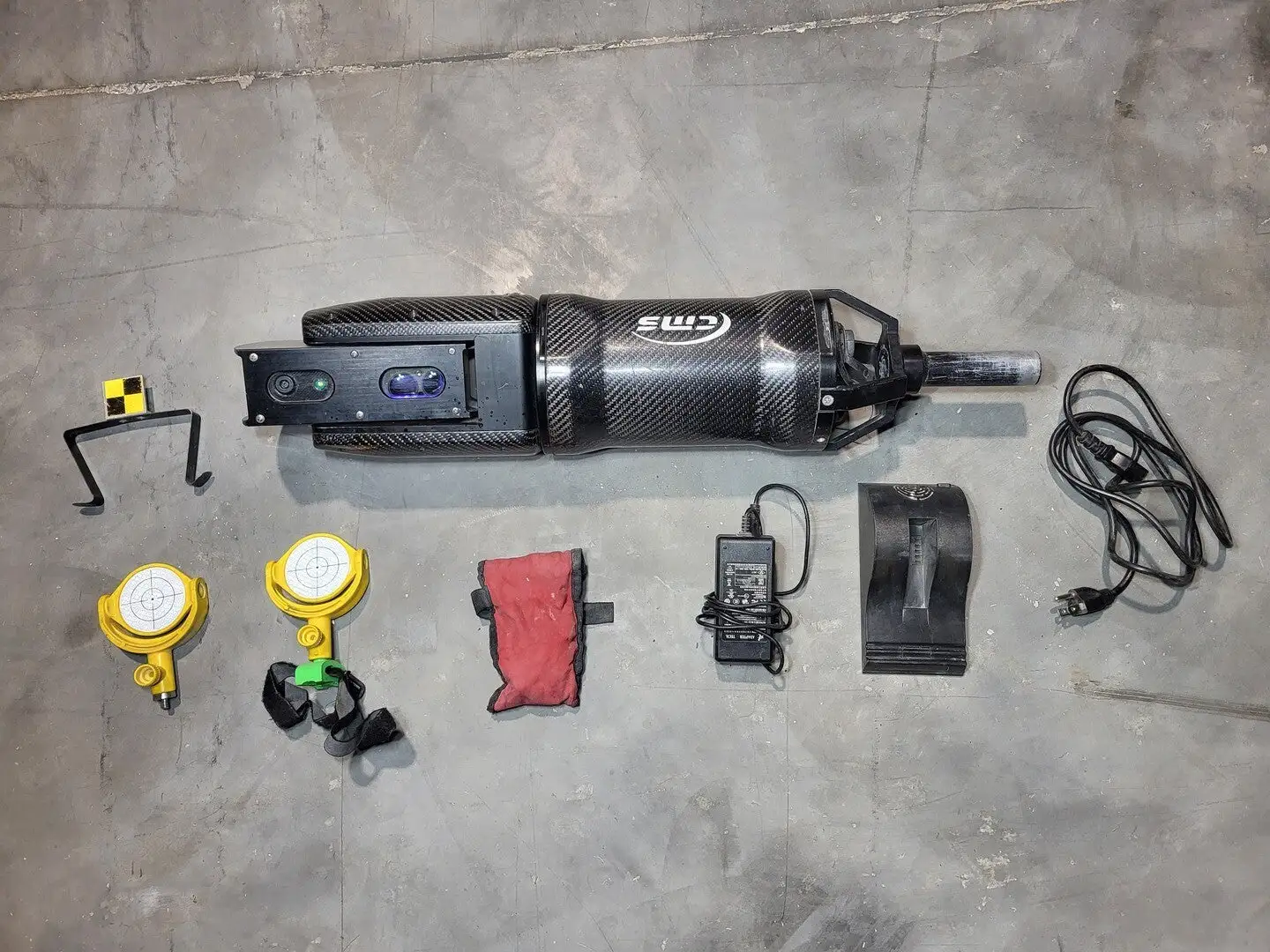

USED 2017 TELEDYNE CMS V500

Overview:
System Type: Portable underground cavity monitoring and laser scanning system
Technology: Laser-based LiDAR scanning
Application: 3D monitoring of underground cavities and inaccessible voids
Horizontal Field of View: 360°
Vertical Field of View: Approx. 320°
Points per Scan: Approx. 57,600
Scan Time (Full Scan): Approx. 6 minutes
Maximum Range (High Reflectivity): Up to approx. 500 m
Maximum Range (Low Reflectivity): Up to approx. 200 m
Minimum Measuring Range: Approx. 0.5 m
Range Accuracy: 2 cm (typical)
Range Resolution: Approx. 1 cm
Angular Accuracy: Approx. 0.1°
Angular Resolution: Approx. 0.022°
Integrated Camera: Yes, built-in visual inspection camera
Data Visualization: Real-time 3D visualization during scanning
Control Method: Wireless remote control via PC or tablet
Data Output: Point cloud data compatible with CAD and mining software

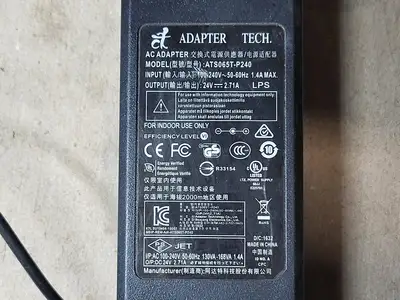

Power Supply: Internal rechargeable battery
Operating Voltage: Approx. 15 V DC
Scanner Weight: Approx. 7 kg (15 lb.)
Protection Rating: IP65 (dust and water resistant)
Operating Temperature: -20 °C to +60 °C
Typical Uses: Mining cavity scanning, void monitoring, volume calculation, stability analysis
