Bryant Center Hole Grinder, 2" x 40" Capacity, Vise Assembly, Dresser
| Size Capacity | 2 x 40 | 2 x 40 |
| Grinding Wheel Width | 0" | 0 mm |
| Weight | 1200 lbs | 1200 lbs |

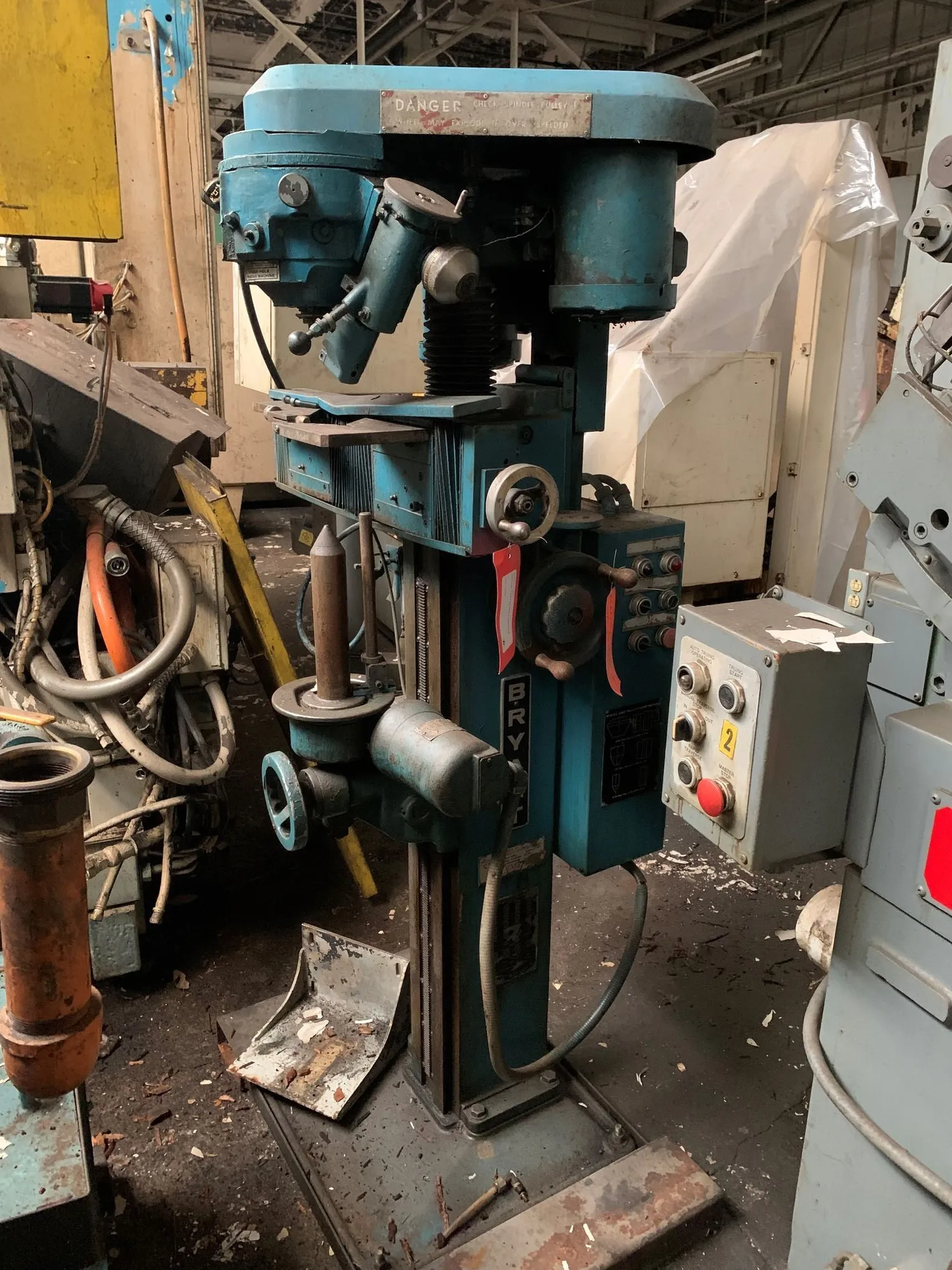

BRYANT CENTER HOLE GRINDER
S/N C-14679
STANDARD SPECIFICATIONS
Work piece length capacity.................... 2" x 40"
Diameter capacity w/vise...................... .060 - 6"
Will grind center holes....................... .050" - 2" diameter
Angular grinding stroke....................... .005 - .100"
Cone angle of center holes.................... 60 degrees
Tailstock center to column.................... 6.2"
Planetary drive speed......................... 330 RPM
Grinding spindle speeds (3)................... 13,000, 21,500,
45,000 RPM
EQUIPPED WITH
Vise assembly .060 - 6"
Universal dresser
Dead center
Spray mist spindle lube
ELECTRICS
1/4 H.P. 220/440/3/60 Planetary Drive Motor
Y/Z H.P. 220/440/3/60 Spindle Motor and Control
Weight approximate: 1,200 lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
