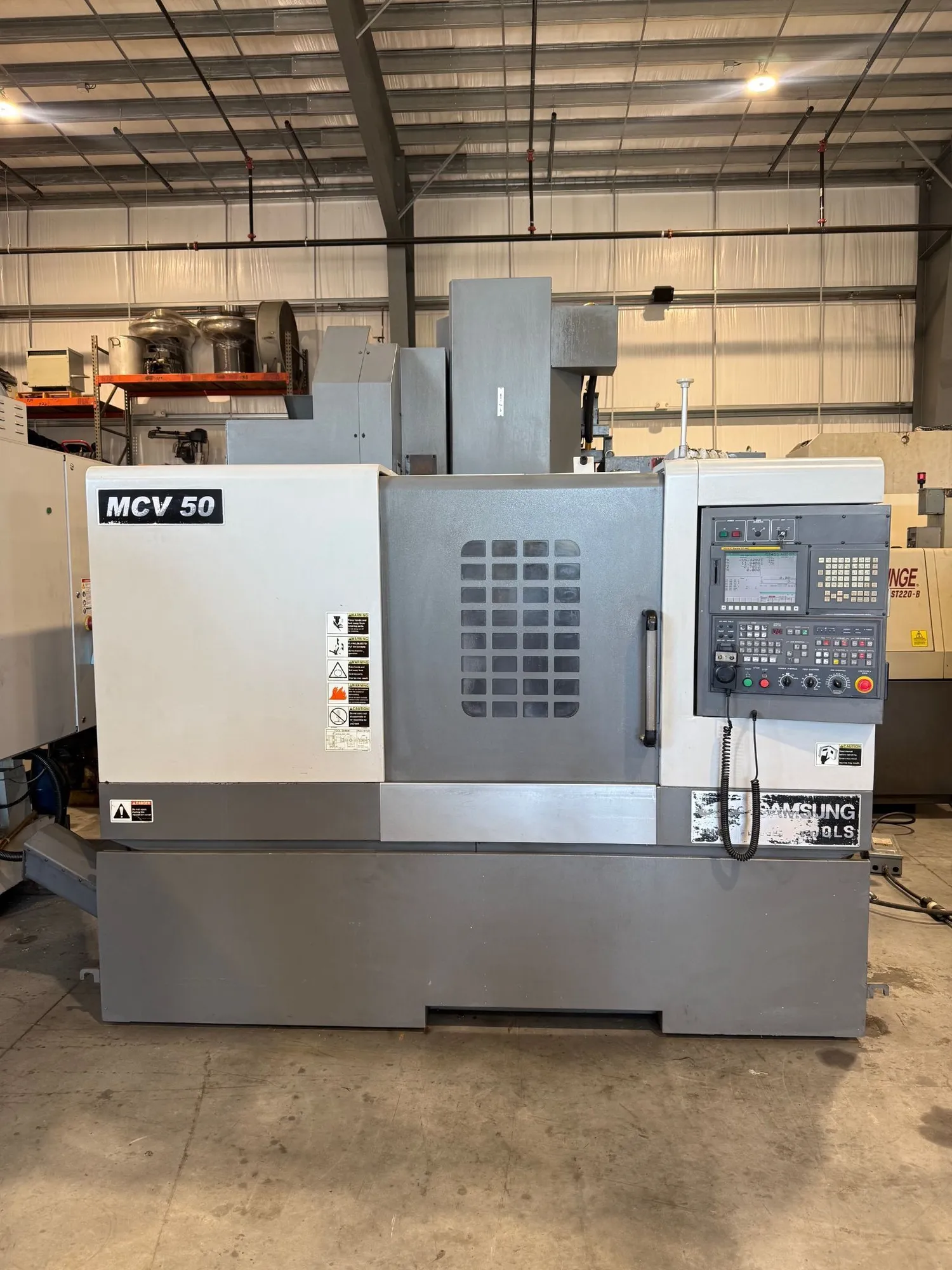

SAMSUNG MCV50 CNC Vertical Machining Center 4 Axis 2011’ #8171
| X axis | 41.33" | 1,049.8 mm |
| Y axis | 20.47" | 519.94 mm |
| Z axis | 20.47" | 519.94 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12 RPM | 12 RPM |
| # ATC | 30 | 30 |
| Taper | CAT40 | CAT40 |
| Table-W | 20.1" | 510.54 mm |
| Table-L | 47.3" | 1,201.4 mm |
| Dimensions | 102” x 87” x 100” H | 102” x 87” x 100” H |
| Weight | 14,000 Lbs. | 14,000 Lbs. |
SAMSUNG MCV50 CNC Vertical Machining Center 4 Axis 2011’ #8171
Reference #8171
Model # MCV50
Serial # DT50B0157
Year of manufacture- 11/12/2011’
Table size- 36.22” x 19.69”
Max table load- 1,322 Lbs.
X axis travel- 35.43”
Y axis travel- 19.69”
Z axis travel- 20.08”
Rapids on X & Y- 1,417 I.P.M.
Rapids on Z axis- 1,181 I.P.M.
Spindle nose to table- 5.11” to 25.19”
Spindle taper- Cat-40
Spindle speeds- 12,000 R.P.M.
Tool changer- 30 Capacity side mount
FANUC Oi-MD CNC Control with M.P.G. manual pulse generator
Power on time- 30,072 Operating time- 5,824 Cutting time- 5,221
12” KOMA CNC Rotary Table
Spindle chiller
Chip auger
Coolant system
20 H.P. Spindle
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 14,000 Lbs.
Machine dimensions- 102” x 87” x 100” H
Machine location- F.O.B. Sarasota, Florida
