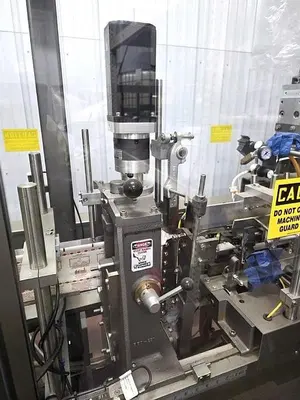

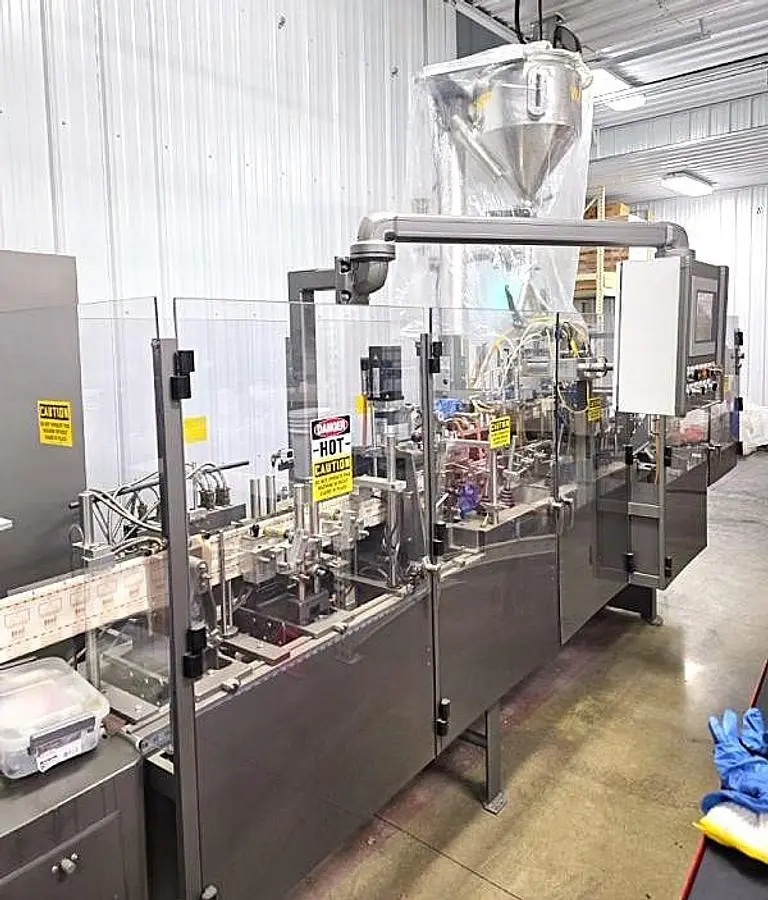

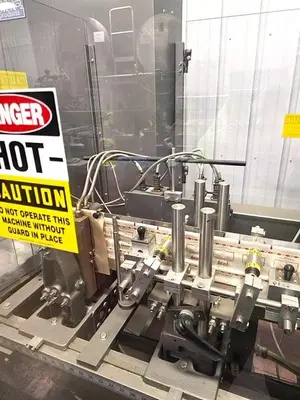

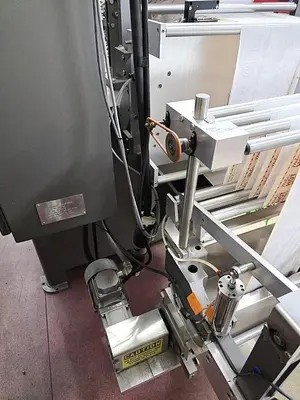

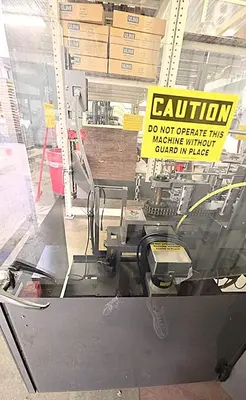

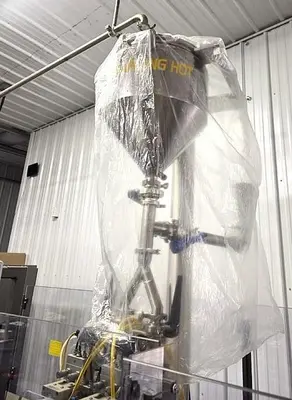

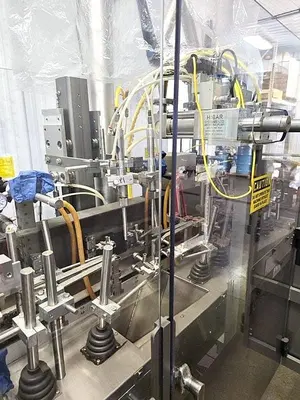

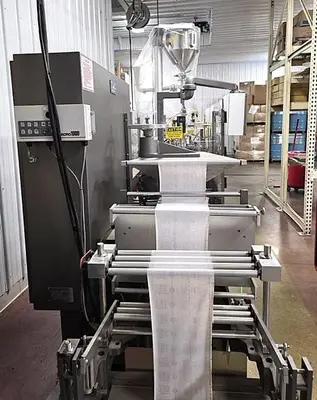

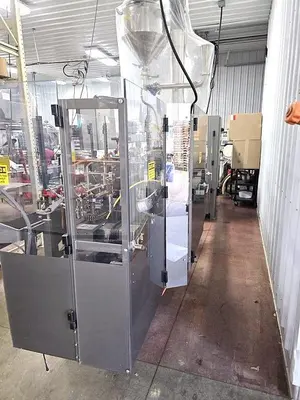

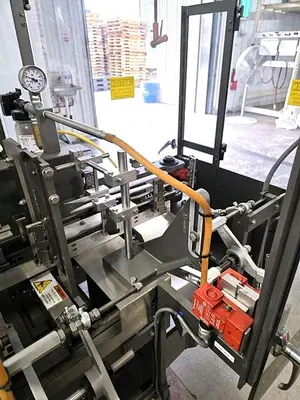

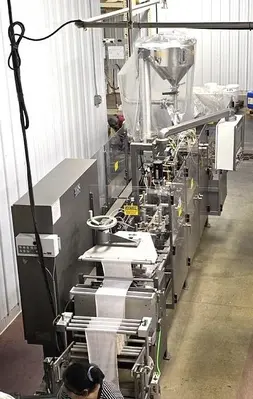

USED 2020 HMC PIM 7-12

HMC POUCHMASTER PACKAGER
MODEL IM 7-12 FOR LIQUID
PACKAGING IN 1 UP OR 2 UP CONFIGURATION
MINIMUM POUCH SIZE 2" X 2"
MAXIMUM POUCH SIZE 5.75" X 9.5"
MAXIMUM GUSSET SIZE 2"
MAXIMUM WEB WIDTH 18"
RUNS UP TO 60 INDEXES/120 POUCHES PER MINUTE 2-UP(SPEEDS DEPENDENT ON FILLING VARIABLES)
VARIABLE SPEED AC SERVO DRIVE
STAINLESS STEEL WAYS
SINGLE POINT PLOW ADJUSTMEN
SERVO DRIVEN FEED ROLLS
REGISTRATION

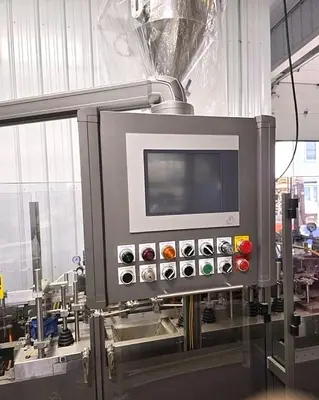

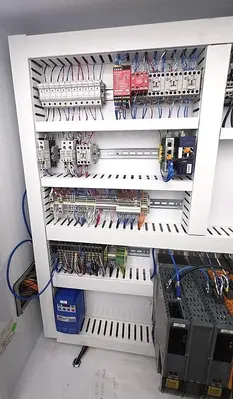

B&R CONTROLS
MACHINE "JOB" CAPABILITYS

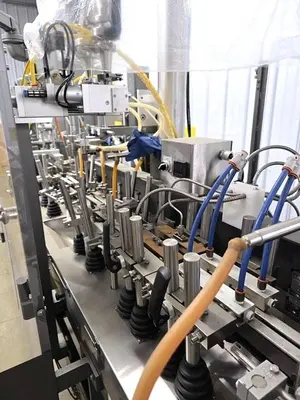

VACUUM OPENING AT FILL STATIONS WITH VACUUM DETECT
BLOW BACK AT ALL VACUUM STATIONS
SERVO TORQUE LIMITER ON THE COVEYOR DRIVE
ONLINE SLITTER, 2-UP
BAG REJECT FOR NO VACUUM /NO FILL
OFFLINE INDEXING POUCH COUNTING CONVEYOR
LOW AIR PRESSURE SHUTDOWN
480V 60HZ 50AMP

THE UNIT IS CURRENTLY UNDERPOWER AND IN OPERATION. IT WAS PREVIOUSLY USED TO PACKAGE VIXCOUS CONDIMENT INTO SACHETS. IT IS DESIGNED TO FORM, FILL AND SEAL A VARIET OF PRODUCTS INTO A POUCH MADE OF LAMINATED MATERIALS. IT CAN ALSO HANDLE MOST THERMO-SEALING WEB MATERIALS
