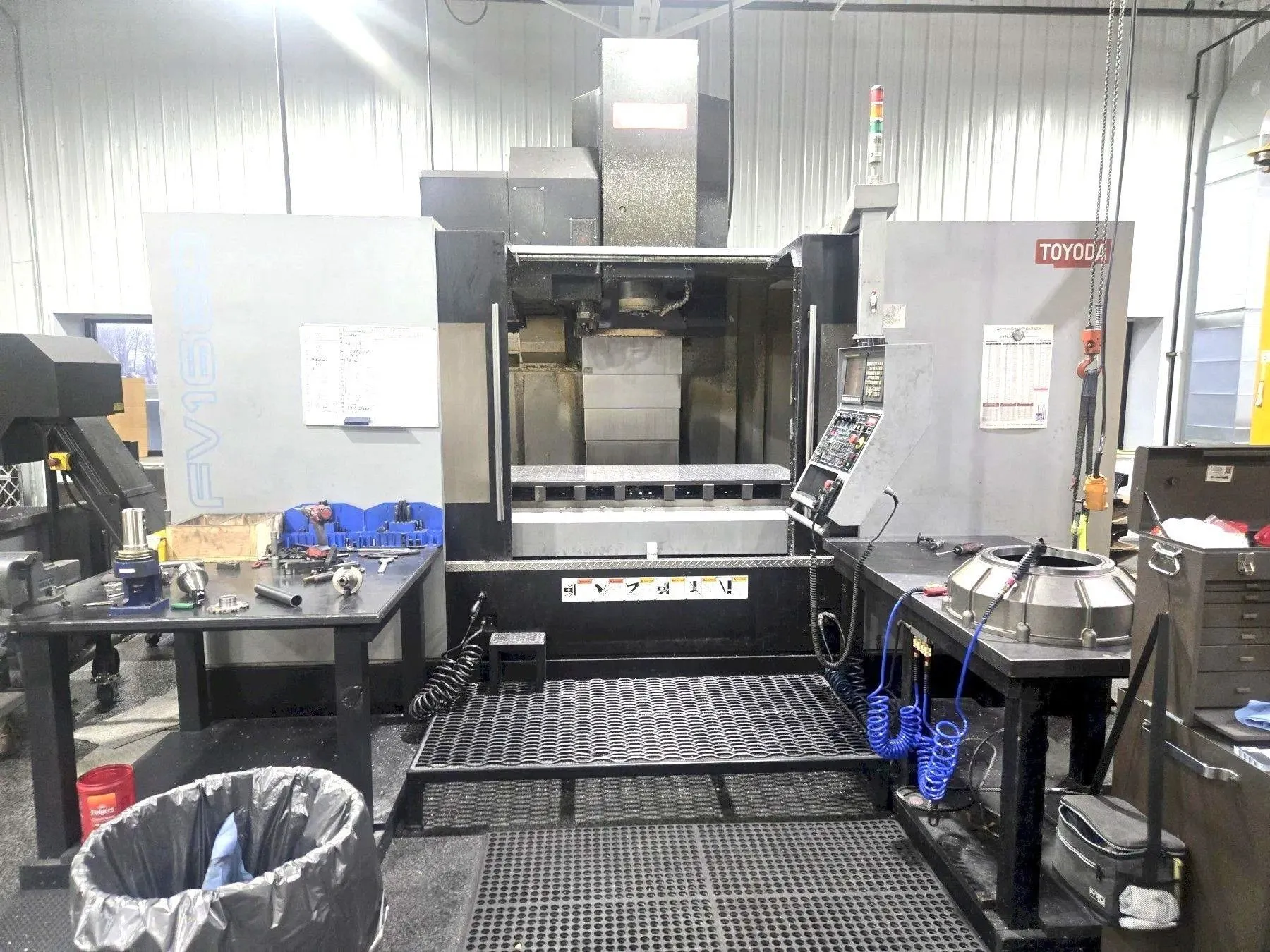

USED 2015 TOYODA FV 1680
Overview
Description
2015 TOYODA FV 1680 CNC Vertical Machining Center. Enjoy precision with Fanuc OI-MD control, rapid traverse rates, and a spindle speed of 6000 RPM. Features a 63" x 31.5" table, 40-tool changer, and extras like a chip conveyor and spindle chiller.
Specifications
| Number Of Tables / Pallets | 1 | 1 |
|---|---|---|
| Table-L | 68.9" | 1,750.1 mm |
| Table-W | 31.5" | 800.1 mm |
| Weight on Table | 4,400 lb | 1,995.8 kg |
| X - Axis Travel | 63" | 1,600.2 mm |
| Y - Axis Travel | 31.5" | 800.1 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate - X | 945 in/min. | 24 m/min. |
| Rapid Traverse Rate - Y | 708 in/min. | 18 m/min. |
| Rapid Traverse Rate - Z | 708 in/min. | 18 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Number of Gear Ranges | 2 | 2 |
| Main Motor | 35 hp | 26.1 kW |
| Tool Diameter | 5.0", 9.0" | 5.0", 9.0" |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 33 lb | 15 kg |
| Machine Weight | 35,273 lb | 15,999.6 kg |
| Automatic Tool Changer | 40 | 40 |
| Control | CNC (FANUC OI-M CNC COLOR CONTROL) | CNC (FANUC OI-M CNC COLOR CONTROL) |
Equipped With
FANUC 0I-M CNC COLOR CONTROL
DATA SERVER
ETEHRNET FUNCTION
USB PORT
AI CONTOUR CONTROL
CHIP CONVEYOR
ALL AVAILABLE MANUALS
GEARED HEAD, BOX WAYS
FANUC OI-MD CNC CONTROL
RIGID TAPPING
HAND HELD MPG
DUAL CHIP AUGERS
SPINDLE CHILLER
COOLANT THRU SPINDLE HIGH PRESSURE
RENISHAW PROBING OMP 60
