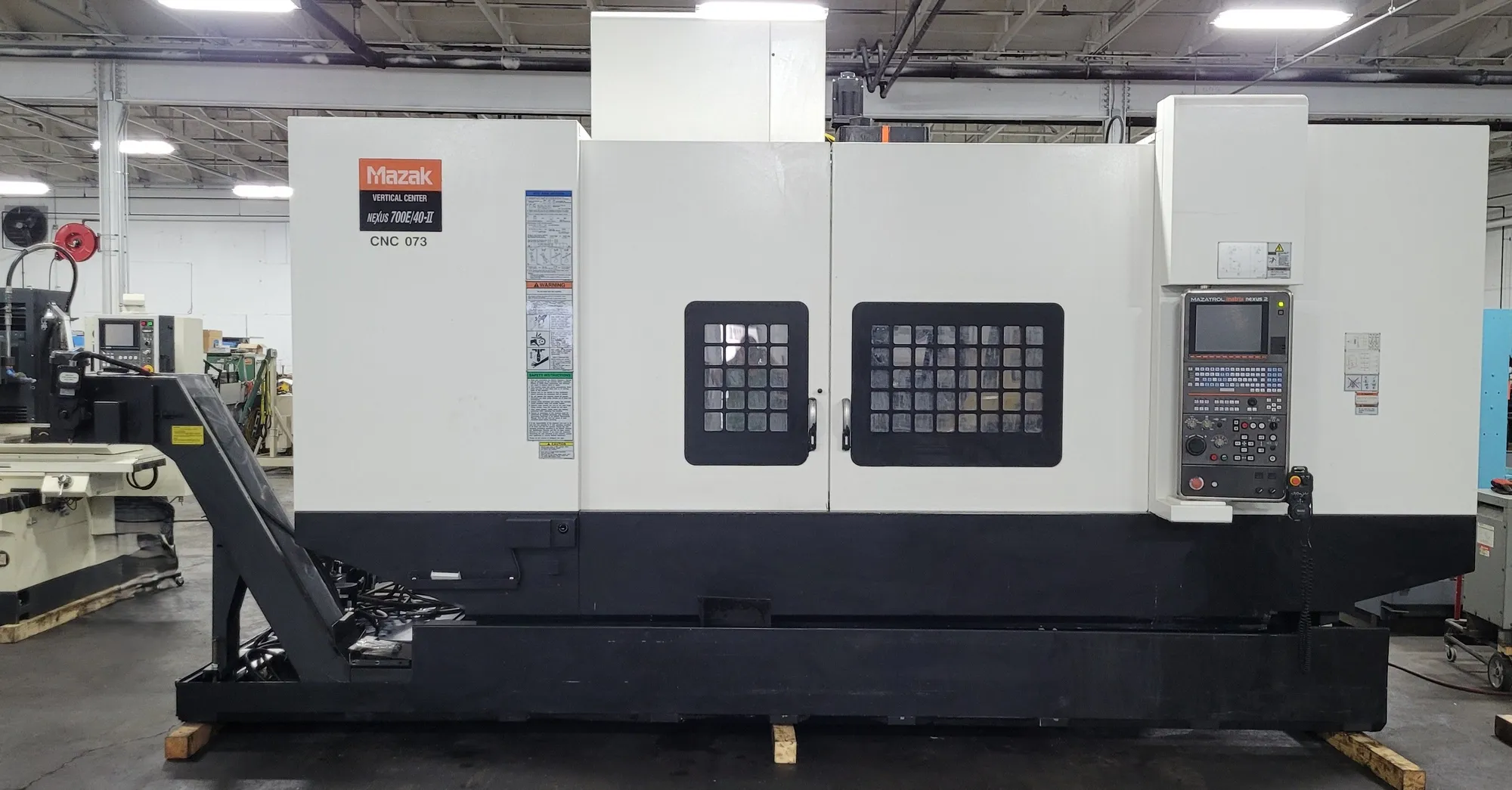

USED 2016 MAZAK NEXUS VCN 700E/40-II
Overview
Description
New 2016 only 5040 Cutting Hours
Specifications
| X | 80" | 2,032 mm |
|---|---|---|
| Y | 27.6" | 701.04 mm |
| Z | 28.3" | 718.82 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Pallet-W | 27.5" | 698.5 mm |
| Pallet-L | 80" | 2,032 mm |
| # Axis | 4 | 4 |
| Control | CNC (Matrix Nexus II control) | CNC (Matrix Nexus II control) |
| Dimensions | 198" x 139" x 140" | 198" x 139" x 140" |
| Weight | 26,500 LBS | 26,500 LBS |
Mazak VCN 700E/40-II 4 Axis VMC
New 2016
Nikken 302MA CNC Rotary Table
Low Hours only 5040 Cutting Hours
High Pressure thru Tool Coolant System
Chip Conveyor
Certified Inspection Report from Mazak Tech.
General Specifications:
X Axis Travel: 80"
Y Axis Travel: 27.6"
Z Axis Travel: 28.3"
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Table Size: 80" x 27.5"
Dimensions: 187" x 140" x 140"
Weight: 26,500 LBS
Specs:
Matrix Nexus 2 Control
12.1” Color LCD
EIA/ISO Code Input Function
Additional EIA/ISO Functions
LAN Port in Electrical Cabinet
USB I/F (2 Port)
Absolute Encoder System
Manual Pulse Generator 1 Dial (Detachable)
80” x 27.5” Table with T-Slots
30 Tool Magazine (CAT-40)
Total Cover without top cover
Hi-Press. Coolant Thru Spindle System
Roller Guide
X-axis travel 80”
Y-axis travel 27.55”
Operator door with interlock with lock-switch
Cover coolant
Dry Pit Foundation with complete toe-clamp
Main spindle motor 25 HP
Spindle Speed 12,000 RPM
Power Transformer
Relocation Device
Windows 7 Operating System
Hand Held Coolant Nozzle
BJGOO Slope Constant
BJMAZACC -2D Software (Shape Compensation)
Nikken CNC 302MA NC Rotary Table Package
