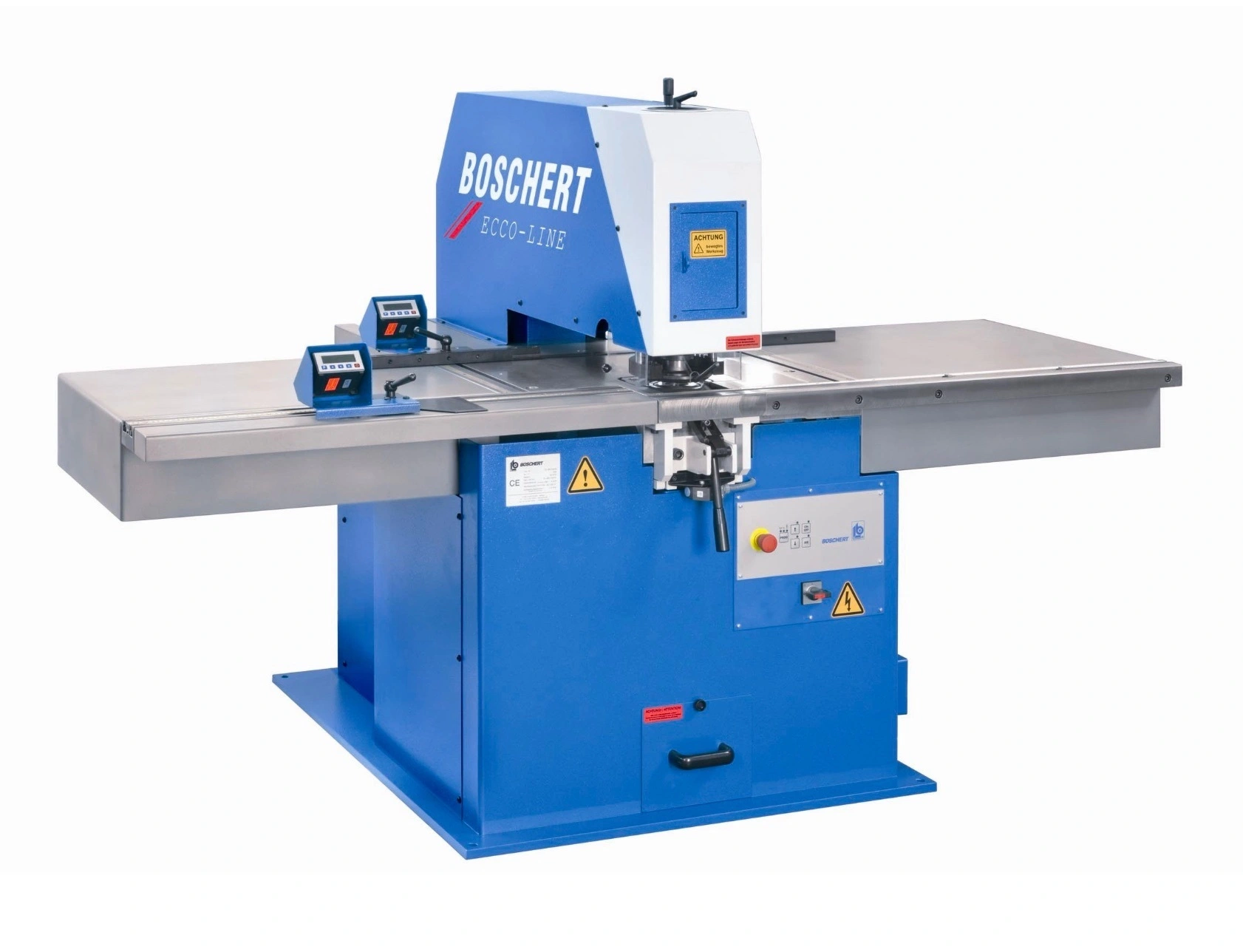

NEW BOSCHERT EL-750

T-slots and brass scales on X-axis (left and right sides) and Y-axis
Automatic pressurized lubrication system
Heavy-duty tool adapter with rigid ram guidance for precise punch and die alignment
Self-regulating overload protection
Stripper holder and plate, die holder
Trumpf or 28XX Tooling System Standard – Others available
Maintenance free hydraulic drive
Constant punching pressure

Optional Equipment Available:

- 50 Ton capacity upgrade - $16,750.00
- Digital Readout, X & Y Axes - $6,500.00 set
(Includes 2 independent display boxes mounted on material stops, readout accuracy of +/-0.004”)
- Special version for working profiles - $14,900.00
- Spring loaded Mini-stops for T-slot - $275.00 each
- 3.5” stroke length - $7,300.00
- 40” X-axis bar on left to hold flip stops - $2,600.00
- Flip stops for above X-axis bar - $275.00 each
- 28XX die holders; 1¼”, 2 1/8”, 2¾”, 3¾ “, 4¾” - $695.00 each
- Trumpf locking die holders, size 1 or 2 - $845.00 each
- Trumpf style punch adjustment unit $1,500.00
- Trumpf style punch alignment ring (up to 30mm) - $115.00 each
- Trumpf style punch alignment ring (over 30mm) - $75.00 each

TERMS:

FOB Milwaukee, WI , Includes Manufacturer’s 1-Year Warranty (Parts & Labor), 25% Down with Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. If order placed today 7/11/2025 estimated delivery is 20-24 weeks (Dec 11-Jan 11). All specifications are assumed to be correct but must be confirmed by the purchasing entity.
