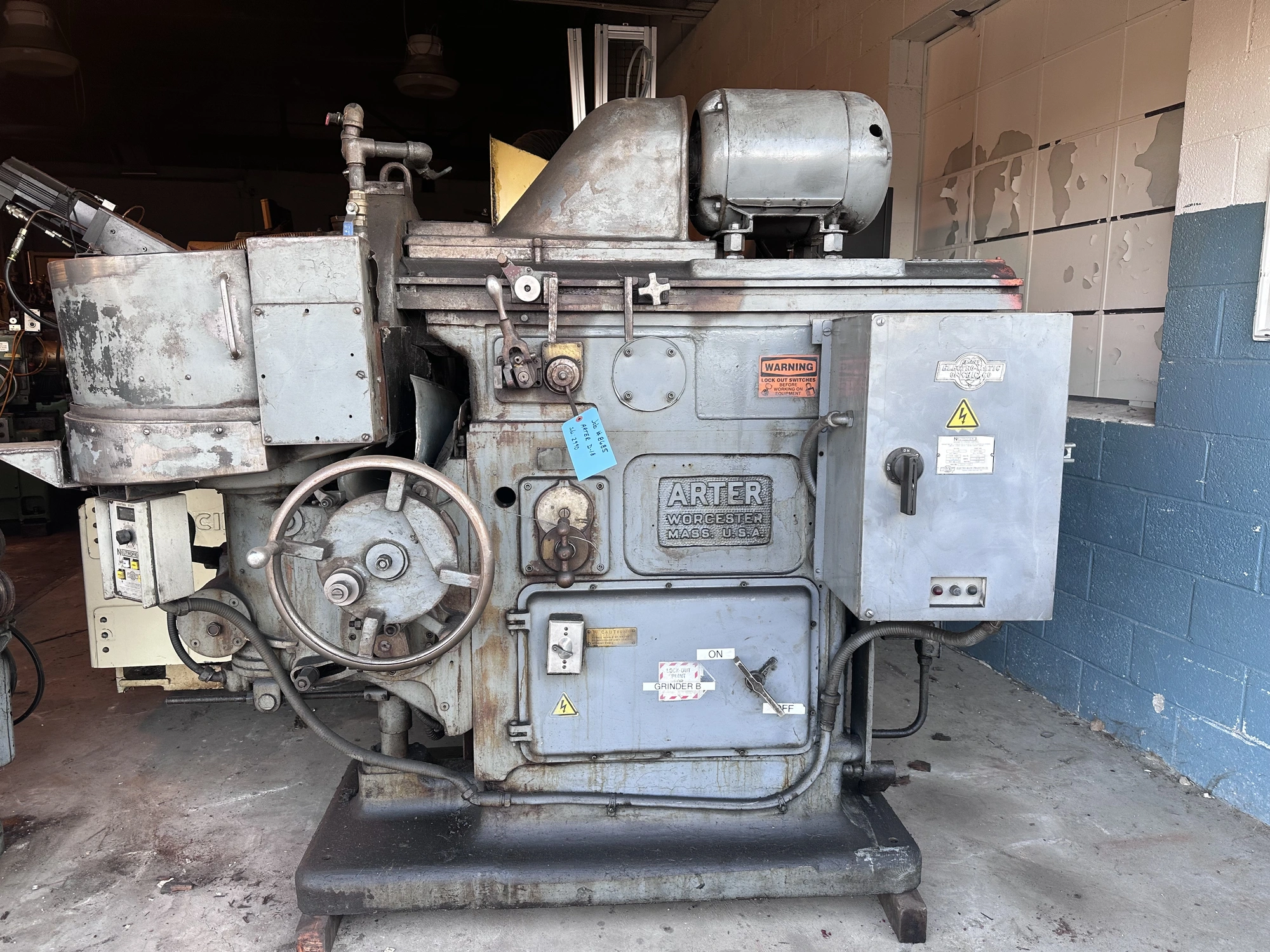

Arter D-18 Surface Grinder, 17" Pattern Chuck, Neutrofiler II Controls, Electromatic Controls
| Chuck Size | 17" | 431.8 mm |
| Size Capacity | 17" | 17" |
| Horz/Vert | Horz | Horz |
| Power | 10 hp | 7.5 kW |
| Swing | 26" | 660.4 mm |
| Under Wheel | 9" | 228.6 mm |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 16" | 406.4 mm |
| Dimensions | 84" x 60" x 70" H | 84" x 60" x 70" H |
| Weight | 6200 lbs | 6200 lbs |
D-18 SUNDSTRAND/ARTER HORIZONTAL SURFACE GRINDER
S/N 2990
STANDARD SPECIFICATIONS
Diameter of magnetic chuck.........................17"
Swing inside guards................................26"
Vertical capacity at full wheel diameter...........9"
Grinding wheel capacity............................16" x 1 1/2" x 8"
Variable speed table table drive...................60 to 250
Table tilt to......................................20 degrees
Wheel spindle drive motor..........................10 H.P.
Hydraulic system motor.............................5 H.P.
Coolant motor......................................1/2 H.P.
OD Grinding Wheel..................................14” x 2” Wide
440 Volts 3 Phase
DIMENSIONS
Floor space required...............................84" x 60" x 70" H
Approximate weight.................................6,200 lbs.
EQUIPMENT & FEATURES
Neutrofier II chuck control.
Electromatic controls.
Attached electrical.
Specifications are deemed accurate, however, subject to verification or prior sale.
