Bryan UL2 Internal Grinder, 2 Axis CNC Kollmorgen Servos, Shoe Type, 2 Point Control Gaging 852, AB Panel View Touch Screen, As Is
| Swing | 6" | 152.4 mm |
| Size Capacity | 6" x 3" | 6" x 3" |
| Max Grinding Bore | 5.5" | 139.7 mm |
| Travel-Long | 10" | 254 mm |
| Workhead Swivel | 1° CCW to 25° CW | 1° CCW to 25° CW |
| Workhead Power | 1.5 hp | 1.1 kW |
| Wheel Power | 1 hp | 0.7 kW |
| Workhead Speed | 4,000 RPM | 4,000 RPM |
| Dresser | Yes | Yes |
| Control | CNC | CNC |
| Weight | 10500 lbs. | 10500 lbs. |

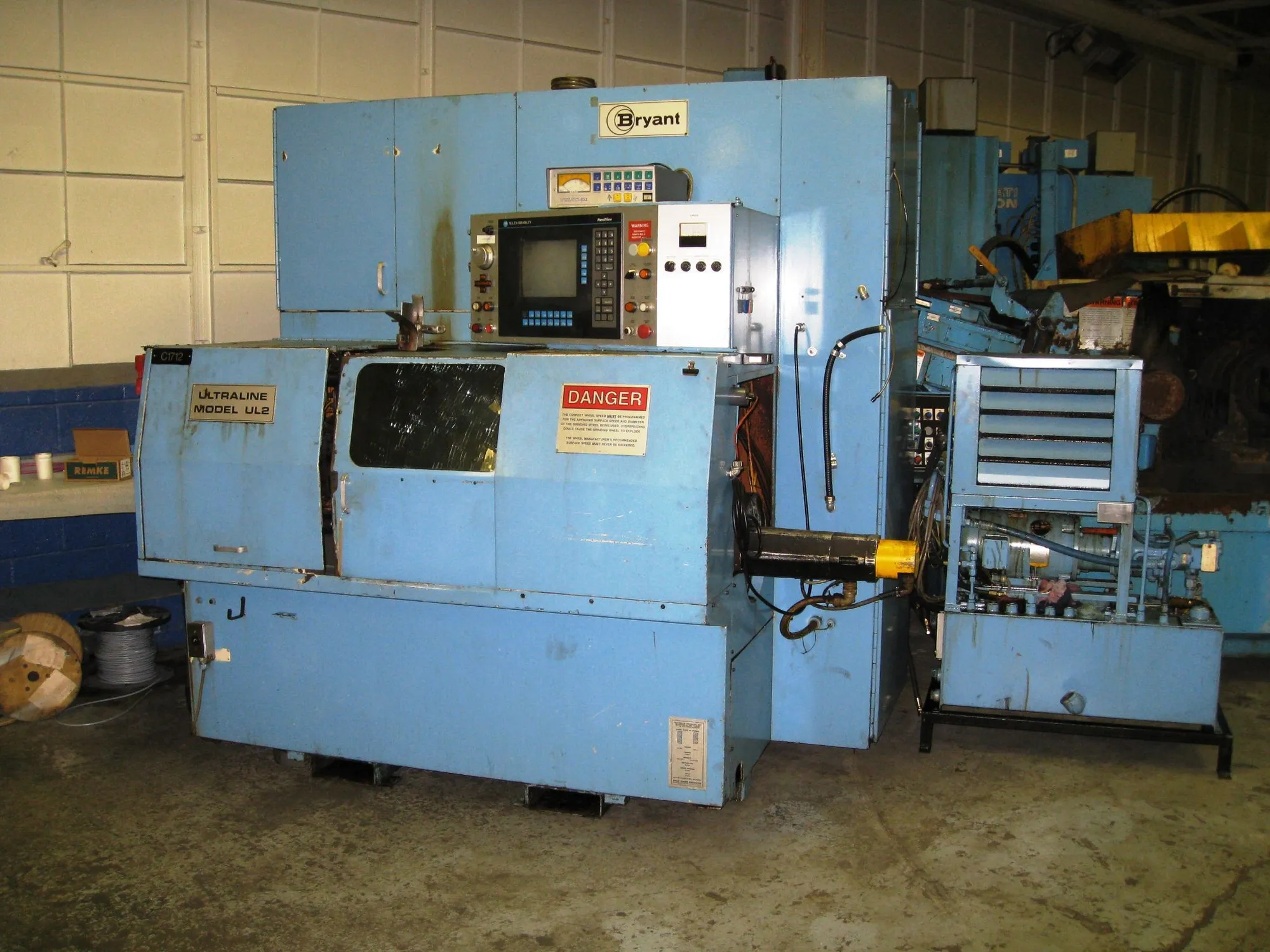

BRYANT ULTRALINE UL2 CNC 2 AXIS INTERNAL GRINDER
S/N W-17557 Year: 1996
STANDARD SPECIFICATIONS
Minimum bore…………………………………..……………… 0.40”
Maximum swing……………………………………………..…. 6”
Maximum bore (chucker)…...………………………….……… 4”
Maximum bore (shoe centerless)……………………….……… 5.5”
Maximum length of bore……………………………….……… 3”
Maximum “Z” axis travel………………………………….….. 10”
Maximum “X” axis travel……………………………………... 2”
Maximum “Z” axis feed rate………………………………….. 1.800 IPM
Maximum “X” axis feed rate……………………………….…. 520 IPM
“Z” Axis resolution…………………………………….……… 0.000016”
“X” Axis resolution…………………………………………… 0.000004”
Work speed: Shoe centerless programmable to………… 1,850 RPM
Chucker programmable to……………...……… 4,000 RPM
Work head angular adjustment…………………… 1° CCW to 25° CW
Work drive motors: Shoe centerless……………….................. 1.5 HP
Chucker - front load…………………….. 1.5 HP
- valve lifter...……………….… 1.0 HP
Maximum spindle speed……………………………… 120,000 RPM
Approximate net weight……………………………………. 10,500 lbs.
EQUIPPED WITH
30,000 RPM Hi-Frequency rotary diamond dresser.
Shoe type grinder.
2 Axis CNC Kollmorgen Servos.
2 Point control gaging 852.
Allen Bradley Panel View Touch Screen.
Specifications are deemed accurate, however, subject to verification or prior sale.
