1962 MYFORD MG12 cylindrical grinder, model 512. Max grinding diameter: 3", swing: 5", table travel: 13.75". Equipped with hand feeds, 12" wheel, workhead, and coolant system. Weighs approx. 1500 lbs, using 3/60/220-440V electrics.
| Size Capacity | 12"x 3" | 12"x 3" |
| Swing | 5" | 127 mm |
| Centers | 12" | 304.8 mm |
| Plain or Angle Head | 'Plain' | 'Plain' |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Wheel Power | 3 hp | 2.2 kW |
| Wheel Speed | 1,830.2 RPM | 1,830.2 RPM |
| Plunge | '' | '' |
| Gauging | '' | '' |
| Dresser | 'Yes' | 'Yes' |
| Weight | 1500 LBS | 1500 LBS |

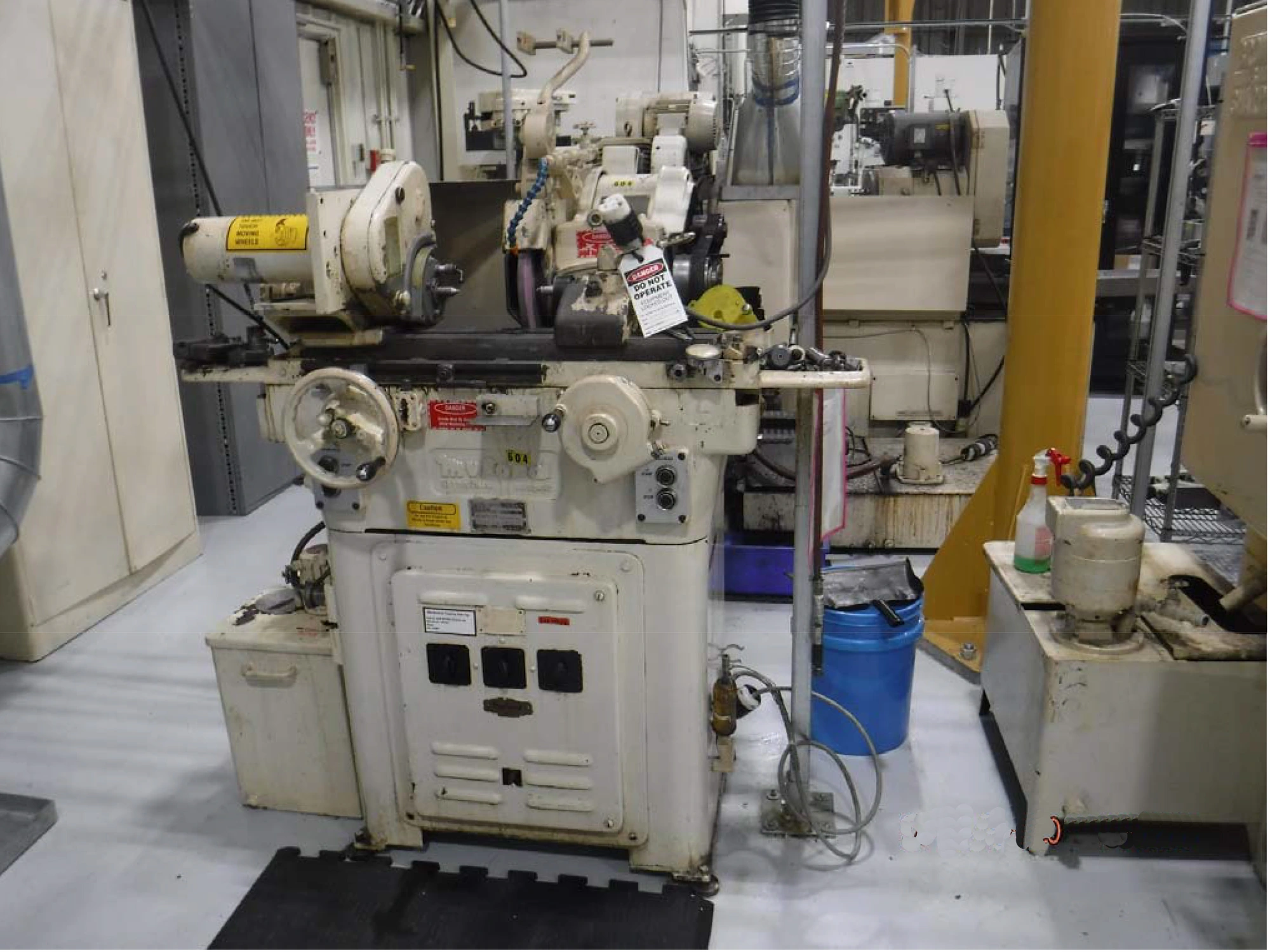

MYFORD MG12 PLAIN CYLINDRICAL GRINDER
S/N:S53000 YEAR: 1962
SPECIFICATIONS
MAXIMUM GRINDING DIAMETER............................ 3
SWING OVER TABLE............................................. 5
MAXIMUM TABLE TRAVEL.............................. 13-3/4
CAPACITY BETWEEN CENTERS............................. 12
TABLE SWIVELS EITHER WAY.................... 7 DEGREES
TABLE TRAVEL PER REVOLUTION OFHANDWHEEL ... 2.04 0.51
WHEELHEAD
TOTAL TRAVEL.............................................................. 3
FINE FEED ADJUSTER (NUMBEREDDIVISIONS) ......... 0.0001
WHEEL SPEEDS (2).................................. 1830 1988 RPM
GRINDING WHEEL (RECESSED)................. 12 X 1-1/2 X 5
MINIMUM WHEEL DIAMETER FOR ZEROWORK DIAMETER ... 10-1/8
WHEELHEAD MOTOR................................................. 3 H.P.
WORKHEAD
WORKSPEEDS, STEPLESSLY VARIABLE........... 50 TO 900 RPM
CAPACITY THROUGH STANDARD DRAWTUBE ................ 3/4
MAXIMUM COLLET CAPACITY....................................... 3/4
WORKHEAD MOTOR.............................................. 1/2 H.P.
APPROXIMATE MACHINE WEIGHT......................... 1500 LBS
EQUIPPED WITH
HAND FEEDS
12 GRINDING WHEEL
DUAL LIVE/DEAD WORKHEAD
4C COLLET DRAW BAR
4C COLLET WITH A CENTER
TABLE MOUNTED DRESSER
COOLANT SYSTEM
3/60/220-440 VOLT ELECTRICS
Specifications are deemed accurate, however, subject to verification or prior sale.
