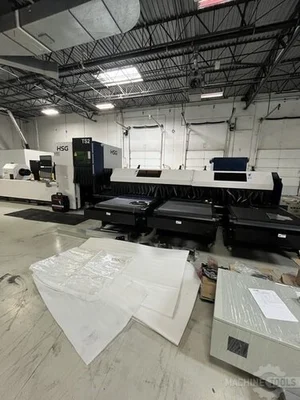

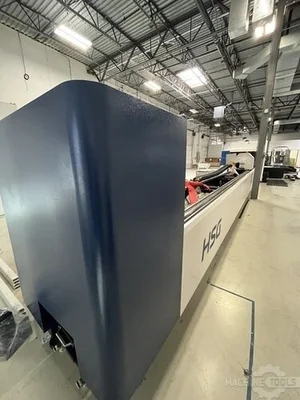

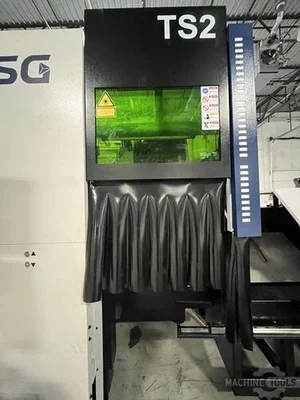

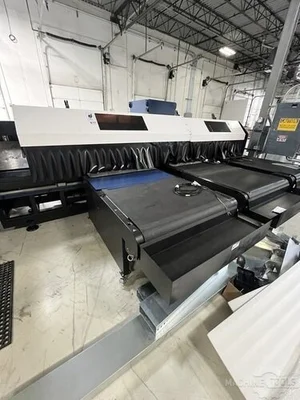

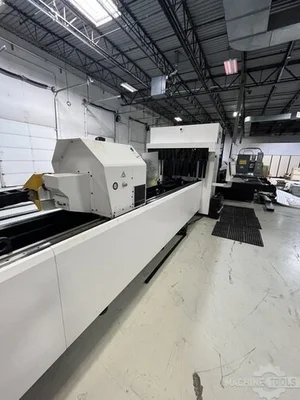

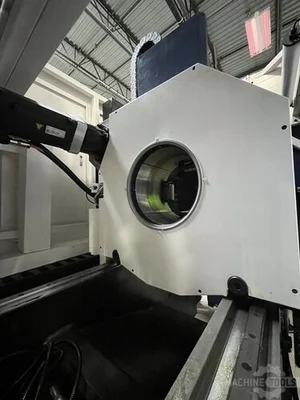

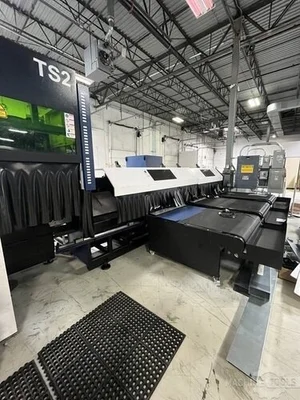

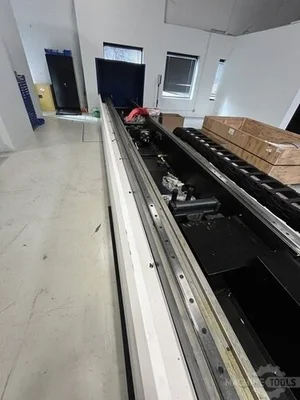

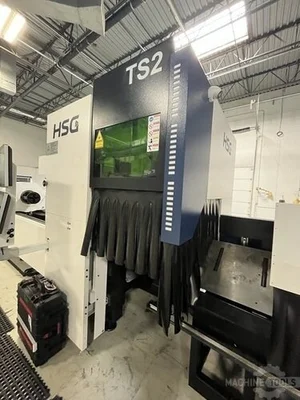

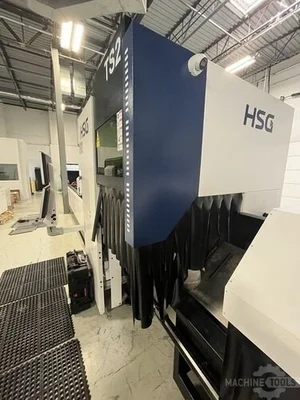

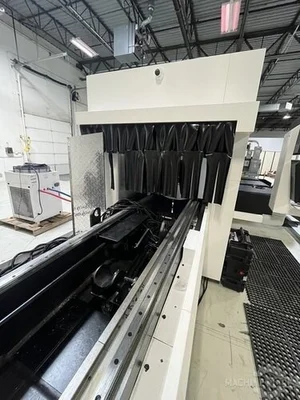

USED HSG TS2-90S

Brand – HSG Model – TS2-90S Type – Laser Cutters New – In-Stock

Wattage: 6 kw

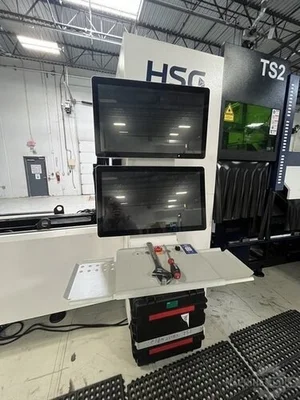

Control: CNC (HSG X)

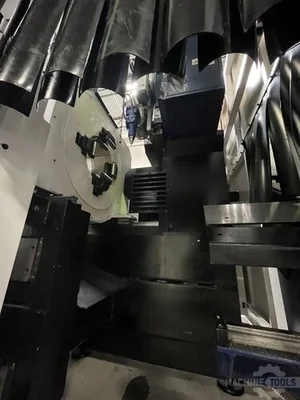

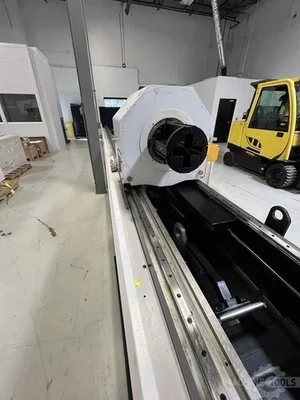

Tube Processing Range: Round Tube: φ20 – φ273 Square Tube: □20×20 – □220×220 Rectangular Tube: Diagonal ≤254 mm Angle Steel: ≤8# (80×80 mm) Channel: ≤8# (80×43 mm) Optional Claw: Angle Steel: ≤18# (180×180 mm) Channel: ≤20# (180×70 mm) H Beam: ≤18# (180×180 mm) Notice: All bevel cutting pipes should be ≥40 mm with wall thickness ≥3 mm Range of Incoming Materials for Tube: 1000 – 9200 mm Positioning Precision (X/Y Axis): ±0.05 mm/m Repetitive Positioning Precision (X/Y Axis): ±0.03 mm Speed of Chuck: 140 RPM (reduced if tube weight increases) Max. Linkage Speed: 140 mm/s (adjusted for heavier tubes) Max. Linkage Acceleration: 1.4 G Maximum Single Tube Weight: ~300 kg (33 kg/m) Tailing Length: ≥220 mm (straight cut; for bevel cutting, double chuck clamping mode) Machine Dimensions: ~16,000 × 6,400 × 2,800 mm Bevel Angle: ±45° Bevel Cutting Surface: V, Y Electrical: 3 Phase, 380V, 50/60Hz Power / Current: 65 kW / 130 A (6,000 W)

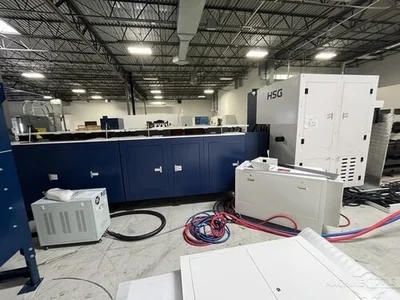

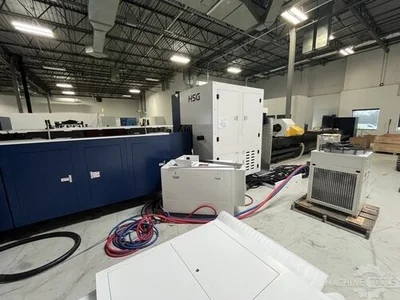

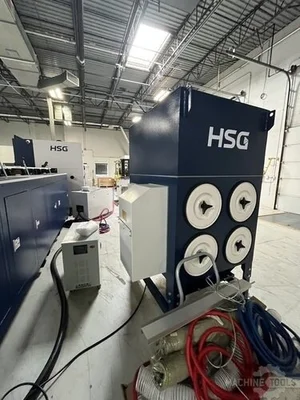

Water Chiller Transformer & Voltage Stabilizer Laser Source Cabinet Safety Package Dust Collector Unloading Machine TS2-AU45-E 1 Seat of HSG Nesting Software Multi Tube Auto Loading Machine R5AL01-9 Seam Detection HSG Bevel Cutting Head Consumables Package Warranty
