USED BODOR T230A

Brand – BODOR Model – T230A Type – Tube, Pipe & Bar Cut-Offs Year – 2022 Condition – Used – Good

Max Diameter: 9.0551″
Control: CNC (Bodor Pro)

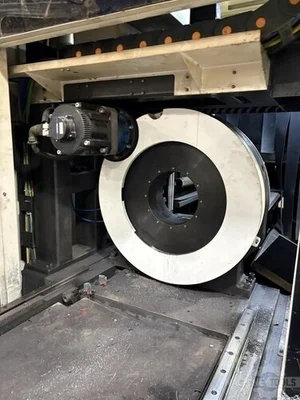

Automatic Loading/Unloading Electric Chuck Bodor Lightning Technology Material Types: Round, Square, Rectangular, Oval, Angle Steel, Channel Steel

Laser Power Options: 6kW Maximum Tube Diameter: 230 mm Minimum Tube Diameter: 20 mm Maximum Square Profile: 160 x 160 mm Maximum Cutting Length: 6500 mm Maximum Workpiece Weight: 200 kg X/Y-Axis Positioning Accuracy: 0.05 mm X/Y-Axis Repositioning Accuracy: 0.03 mm Max Rotation Speed (W-axis): 120 r/min Maximum Loading Speed: 160 m/min
