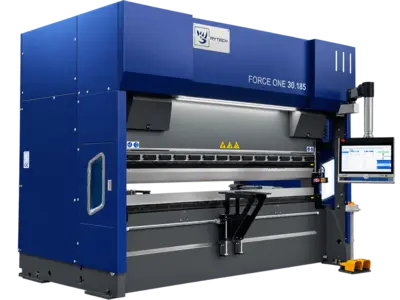

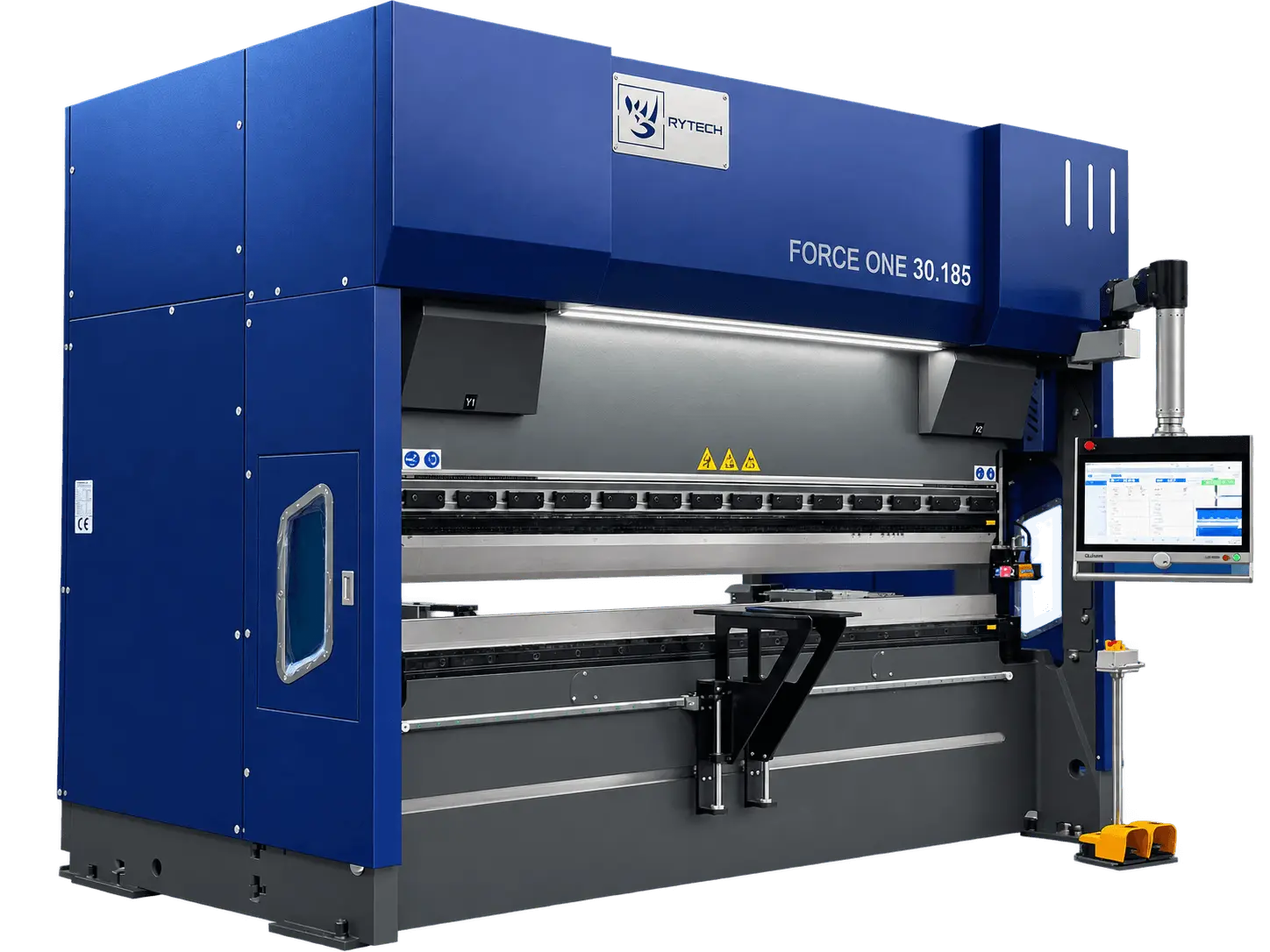

NEW RYTECH FORCE ONE HYDRAULIC PERFORMANCE PRESS BRAKE
Overview
The RYTECH FORCE ONE Hydraulic Performance Press Brake delivers accurate, reliable bending with heavy-duty construction and advanced CNC technology. Featuring Precision Frame Technology, Dynamic Crowning, a precision backgauge, and quick-change tooling, FORCE ONE provides consistent performance and efficient operation for metal fabrication shops.
Specs
Manufacturer: RYTECH
Model: FORCE ONE
Machine Type: Hydraulic Performance Press Brake
Available Models: 120-3000, 120-4000, 180-3000, 180-4000
Bending Capacity: 132.28–198.42 U.S. Tons
Usable Bending Length: 122.05"–161.42"
Working Length: 118.11"–157.48"
Cylinder Stroke: 9.84"
Daylight: 18.50"
Approaching Speed: 425.20–472.44 IPM
Working Speed: 0–28.35 IPM
Return Speed: 389.76 IPM
Motor Power: 14.75–20.12 HP
X-Axis Stroke: 23.62"
R-Axis Stroke: 7.87"
X-Axis Velocity: 1,417.32 IPM
R-Axis Velocity: 590.55 IPM
Z-Axis Velocity: 1,889.76 IPM
Machine Length: 167.32"–171.26"
Machine Width: 84.65"–86.61"
Machine Height: 112.60"–120.08"
Machine Weight: 26,015–34,172 lbs.
Electrical Requirements: 480V, 3-Phase, 60 Hz
Equipped With
DELEM DA-58TX CNC Control
Y1, Y2, X & R Controlled Axes
Precision Frame Technology
Heavy-Duty Stress-Relieved Steel Frame
Dynamic Crowning System
GHP Precision Backgauge System
Rack-and-Pinion Backgauge Drive
Dual Guide Rail Support
Two Anti-Collision Rear Backgauge Fingers
KYOKKO Quick Change Tooling
Manual European Upper Tool Clamping
Manual Lower Tool Clamping
EZ Front Support System
HAWE Hydraulic Valve System
LED Work Lighting
DSP AP+MCS Laser Safety System
Side & Rear Safety Guarding
Air Conditioner & Heat Exchanger
480V, 3-Phase, 60 Hz Electrical System
