112MY Bryant Internal Grinder with 6 1/4" hollow workhead spindle, 34" Extended Base, 22" Swing Inside Guards, 24" Swing Over Table, As Is.
| Swing | 24" | 609.6 mm |
| Size Capacity | 24" | 24" |
| Stroke | 9" | 228.6 mm |
| Travel-Long | 7" | 177.8 mm |
| Workhead Swivel | 45 | 45 |
| Workhead Speed | 650 RPM | 650 RPM |
| Dresser | Yes | Yes |
112MY BRYANT INTERNAL GRINDER WITH 34” EXTENDED BASE
S/N R9268
STANDARD CATALOG SPECIFICATIONS
Total swing over table................................ 24"
Swing inside guard.................................... 22”
Traverse stroke (maximum)............................. 20"
Grinding stroke....................................... 3/8” to 9"
Work spindle RPM (either direction of rotation)....... 50 to 650
Table movement............ Forward.................... 7"
Table movement............ Rear....................... 2.75"
Work head adjustable to.............................. 45 degrees
(Will grind 90 degrees included angle)
EQUIPMENT & FEATURES
34” Extended base.
Single point diamond dresser.
Variable speed hydraulic work head.
Face stop.

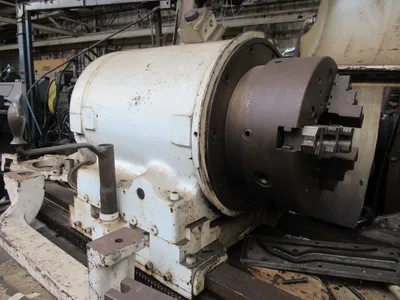

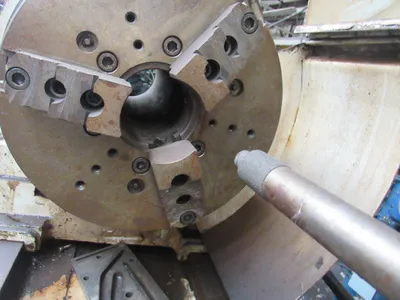

12” 3 Jaw chuck.
Attached electrical.
Automatic pick feed.
Power or manual table.

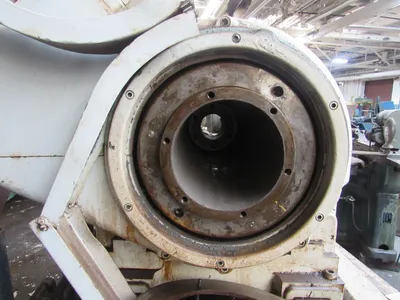

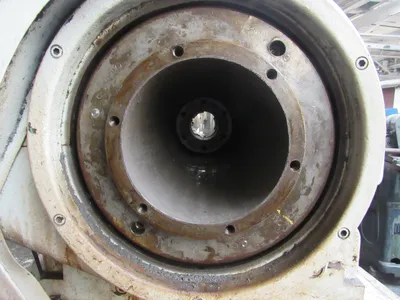

6 1/4” Hollow work head spindle.
Specifications are deemed accurate, however, subject to verification or prior sale.
