| X Axis | 84" | 2,133.6 mm |
| Y Axis | 32" | 812.8 mm |
| Z Axis | 30" | 762 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 28" | 711.2 mm |
| Table-L | 84" | 2,133.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 214″ x 102″ x 129″ High | 214″ x 102″ x 129″ High |
| Weight | 25,600 lbs | 25,600 lbs |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

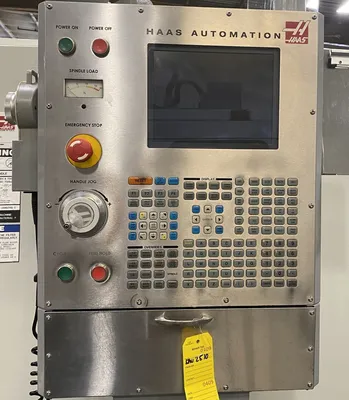

Haas CNC Control
20 HP Spindle Motor
24 Station Automatic Tool Changer
USB Drive
Rigid Tapping
Coolant System
Telescopic Way Covers

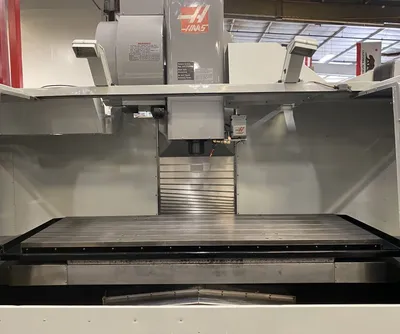

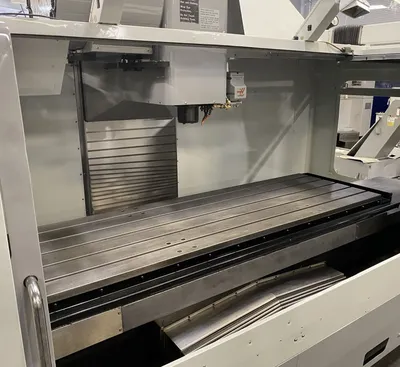

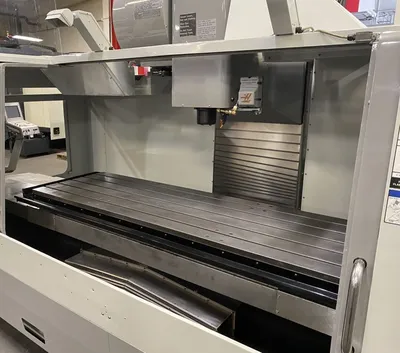

Table:
Length: 84″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs
Travels:
X-Axis: 84″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 34″
Spindle:
Taper Size: 40
Speed Range: 7500 RPM
Spindle Power: 20 HP

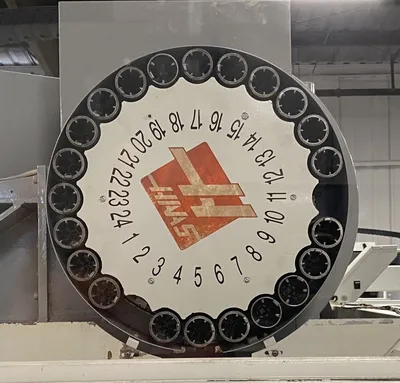

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 6″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds

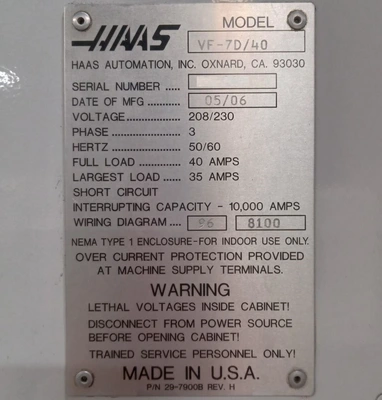

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 214″ x 102″ x 129″ High
Weight: 25,600 lbs
7500 RPM High Torque Spindle
MPG Handwheel Control
Programmable Coolant

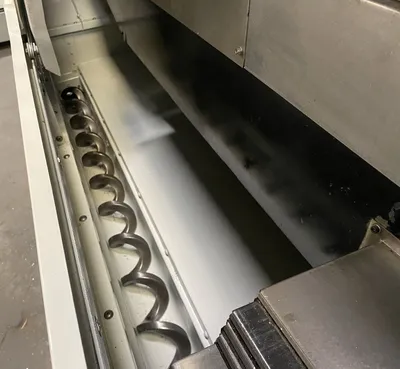

Chip Auger
