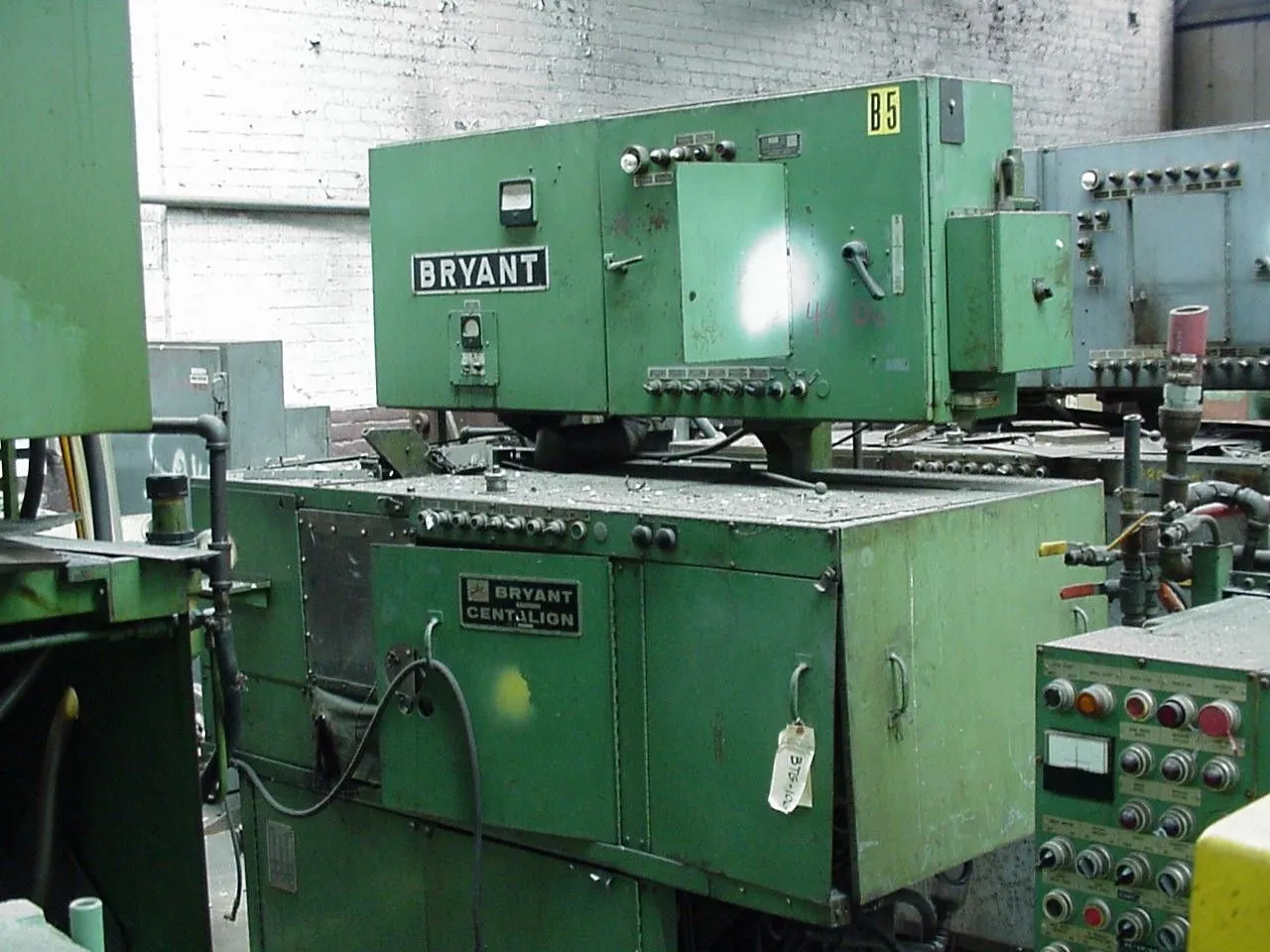

USED BRYANT C

BRYANT C CENTALIGN I.D. GRINDER
S/N 0-12581

STANDARD CATALOG SPECIFICATIONS
Maximum swing diameter................................. 10"
Maximum O.D. of work part, auto loading................ 4"
Maximum grinding stroke................................ 1"
Total wheel slide stroke............................... 8"
Maximum cross feed, universal auto feed................ .045"
Maximum cross feed, cam auto feed on dia............... .030"
Work head adjustable to grind, included angle......... 60 degrees
Work head spindle flange diameter (standard)
Chucker only........................................... ASA #2.5"
MOTORS
Cam drive motor................ 1/4 HP, AC Race grinder, 1200 RPM
Cam drive motor................ 1/3 HP, DC Bore grinder
Variable speed................. Maximum 1200 RPM
Cross feed motor............... DC Variable speed max. 1800 RPM
Hyd. work drive motor.......... Variable speed 2,000 RPM max.
Hyd. pump drive motor.......... 3 to 10 HP, AC, 1800 RPM
SPEEDS
Work head............... Infinitely variable from 200 to 1500 RPM
Grinding stroke......... Up to 460 strokes per minute
Traverse stroke......... Approximately 50 feet per minute
TANK CAPACITIES
Grinding coolant...................................... 74 gallons
Wheel spindle coolant................................. 15 gallons
Hydraulic power unit.................................. 30 gallons
FLOOR SPACE & WEIGHT
Approximate net weight................................ 7,000 lbs.
Machine floor space without coolant tank and
hydraulic units........................................ 85" x 36"
Machine floor space with coolant tank.................. 96" x 63"
EQUIPMENT & FEATURES
18,000 RPM High frequency Bryant spindle.
Separate hydraulic unit.
Single point radius dresser.
Auto loader and unloader.
Shoe magnetic drive.
The C-Centerlign I.D. Grinder was designed for the long run production grinding of bearing races.
Specifications are deemed accurate, however, subject to verification or prior sale.
