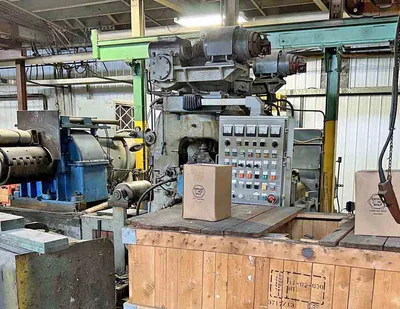

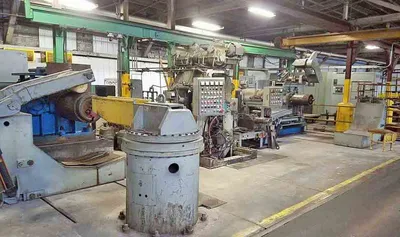

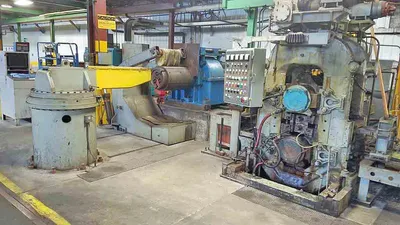

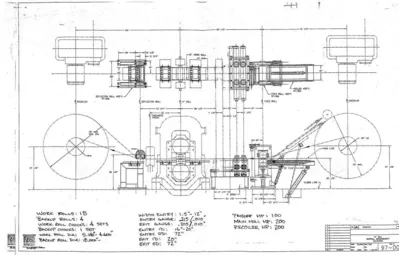

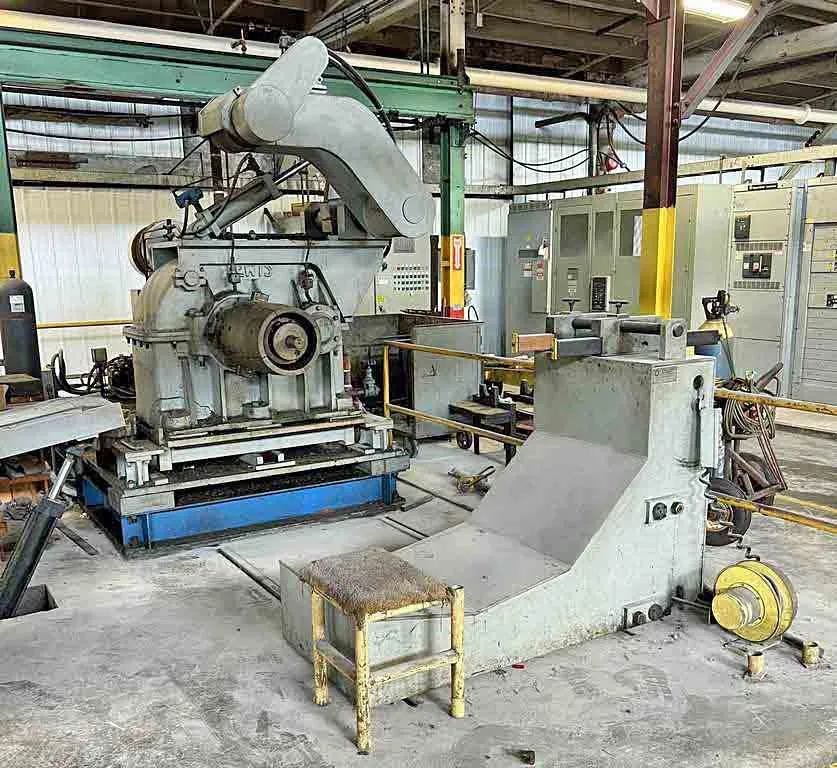

4 HI 1 Stand Bliss/United Rolling Mill
Overview
Specifications
-Work Roll Diameter: 5.140" - 4.600"
-Backup Roll Diameter: 18"
-Width Range: 1.5" - 12"
-Entry Gauge Thickness: 0.010" to 0.215"
-Exit Gauge Thickness: 0.010" to 0.205"
-Entry ID: 16"/20"
-Exit ID: 20"
-Entry and Exit OD: 72"
-Mill Direction: Right to Left
Consisting of the following:
-Entry L-Type Coil Car:
Self-Contained Hydraulic Power Unit

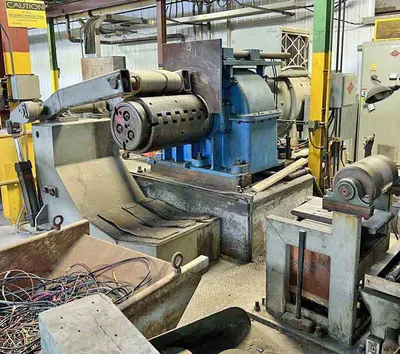

-Mandrel Uncoiler: Lewis
Hydraulic Expansion
100 HP DC Motor Drive
Overarm Hold Down Roll
Slide Base
-Entry Peeler Table:
Hydraulic Lift and Extend
-Entry Pinch Rolls:
Powered

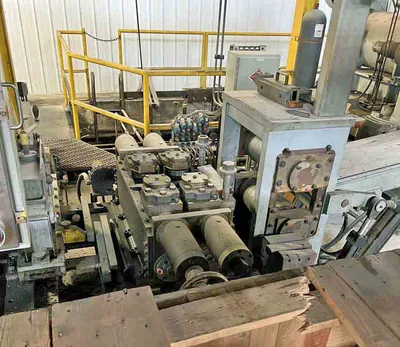

-Edging Roll Assembly:
2 sets of Rolls
Manual Side Pressure Adjustment
Hydraulic Motor Width Adjustment

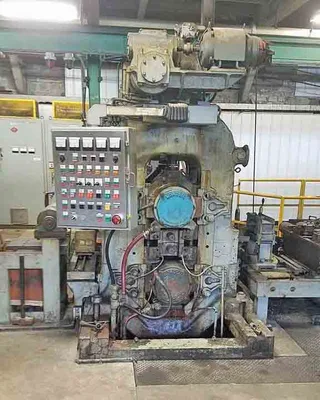

-4 HI Mill Stand:
5" x 18" x 14"
Morgoil Backup Bearings
Non Reversing
Motorized Screwdowns
No Coolant
200 HP DC Main Motor Drive
-Deflector Roll:

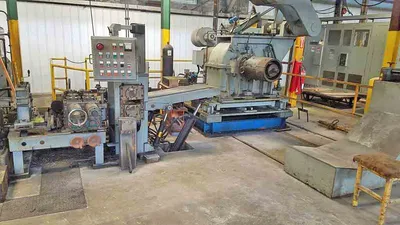

-Mandrel Recoiler:
Hydraulic Pushoff
200 HP DC Main Drive Motor
-Exit L-Type Coil Car:
Self-Contained Hydraulic Power Unit
Overarm Hold Down Roll
-Exit (1) Arm Turnstile:
C-Hook Type Arm
-Mill Hydraulics:
-I2S Controls and Electrics:
-Roll Count: 18 Work Rolls
4 Back Up Rolls
-Chocks: 4 Sets, Work Roll
1 Set Back Up
-Installed
