USED TRU-TECH M-2/2000

10 Stand Tru-Tech Rollforming Line

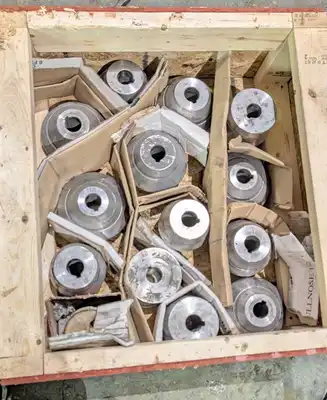

Tooled for the following parts:

(2) Sizes of Hat Channel (Furring Channel)
Overall Width: 2.6875" and 3.500"
Overall Height: 0.875" and 1"
Leg Size: 0.50" and 1.00"
Top of Hat: 1.250"

Consisting of:

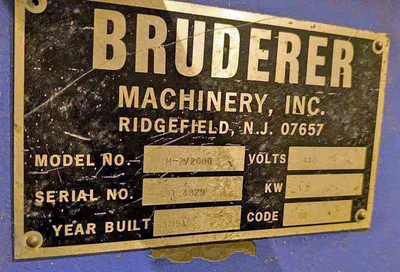

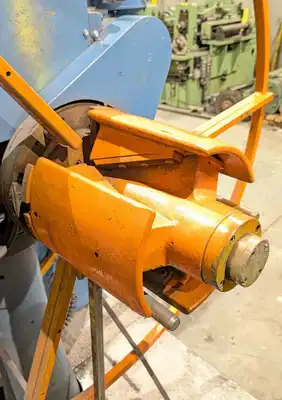

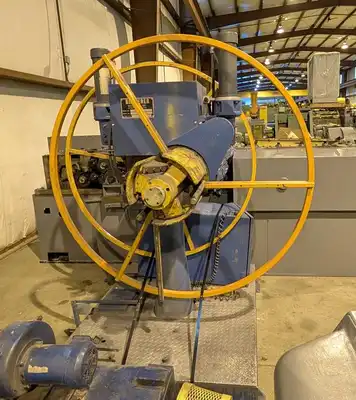

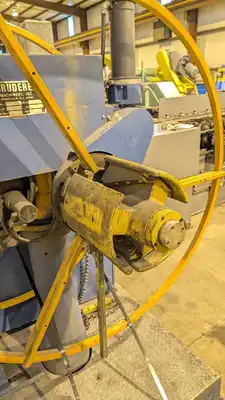

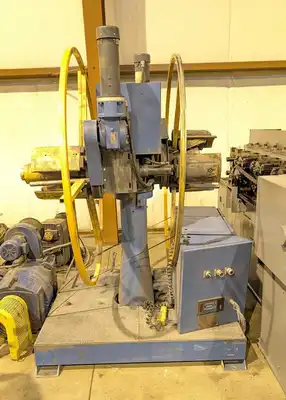

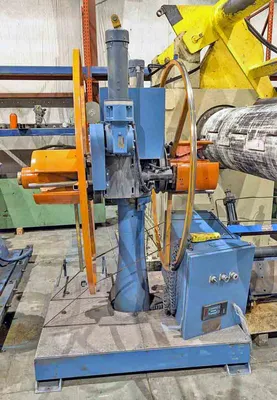

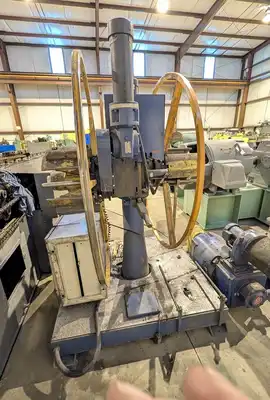

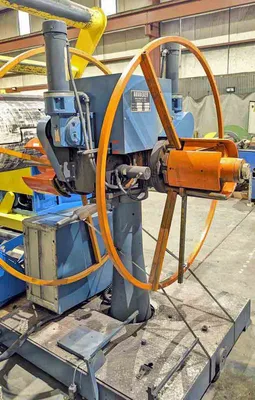

-Double-End Uncoiler: Bruderer
New in 1991
Model: M-2/2000
S/N: 91-4829
Weight Capacity: 4,400 lbs. (2,000 kgs.) Each Side

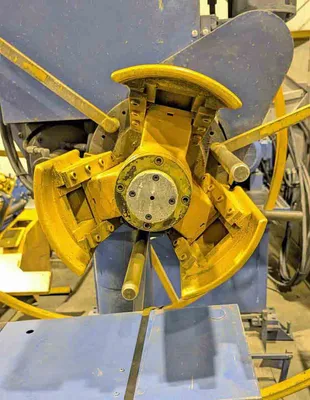

11.5" Face Mandrels
Hydraulic Wedge Type Expansion
14" - 17" Expansion Range (approx.)
Bolt-on wood pads for 20" I.D. on (1) Head
Passline: 41.5" from Center of Mandrel to Top of Base
Each Head Belt Driven by 1 HP Variable Speed DC Motor
through Reliance Reducer. (One Drive Belt Missing)
Drive Speed: 65 FPM Max.
Manual Rotation

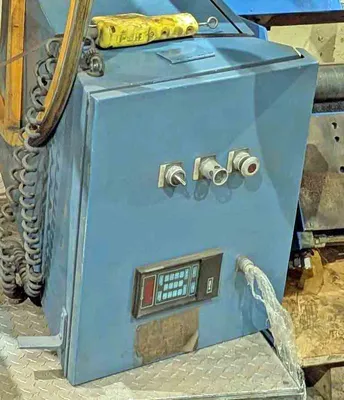

Operators Panel w/Contrex M-Trim Digital Motion Control
Overall Size: 76" L x 60" W x 83" High

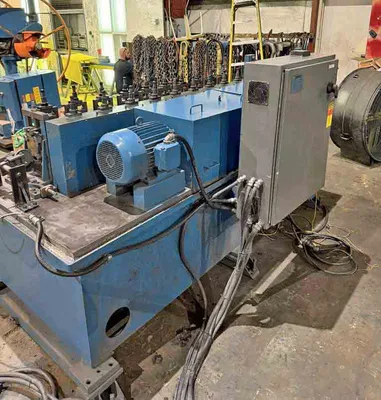

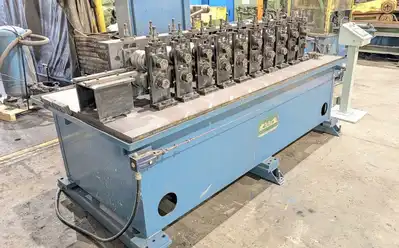

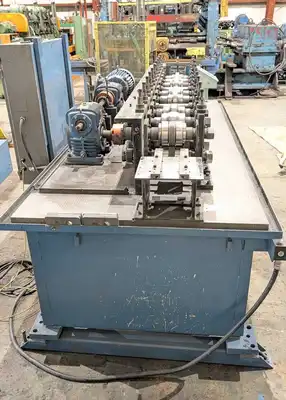

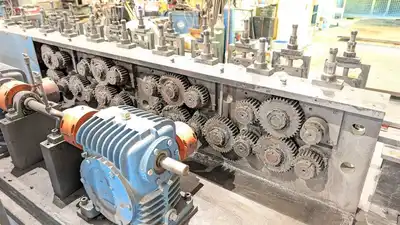

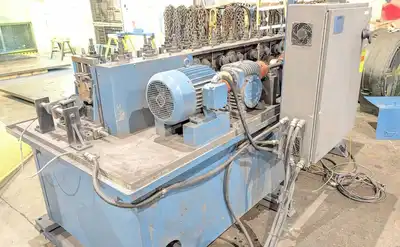

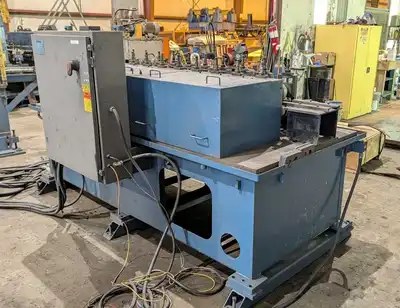

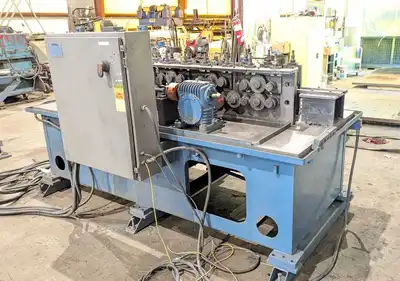

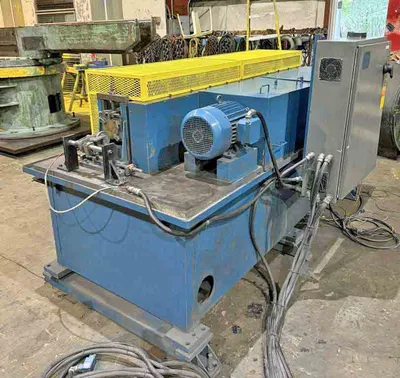

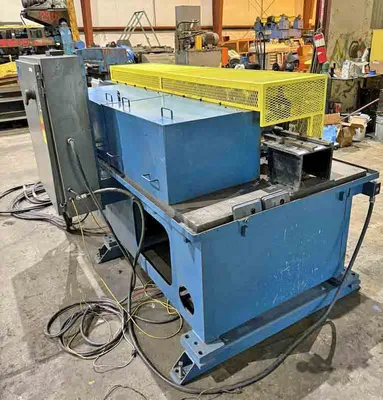

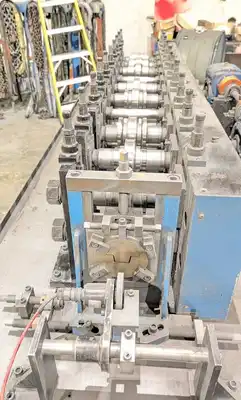

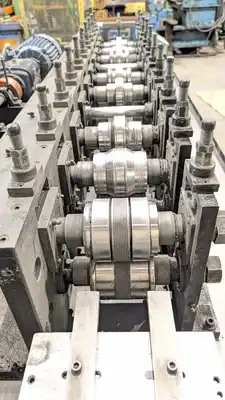

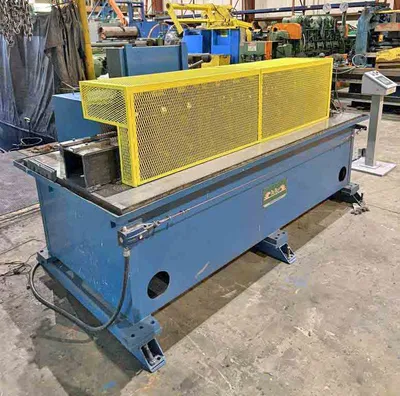

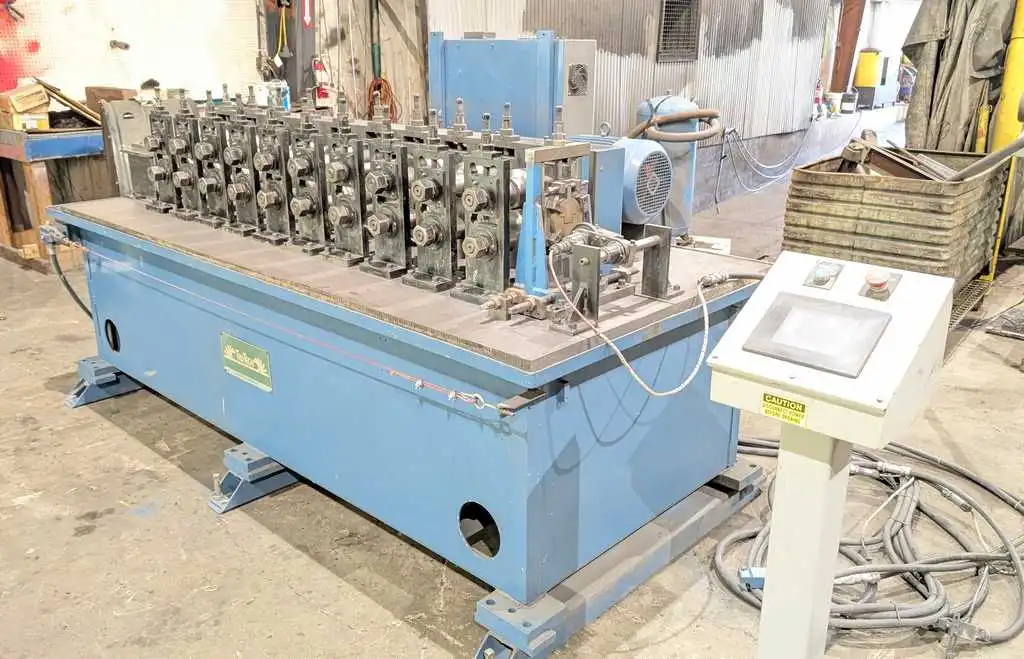

-Rollformer: Tru-Tech
10 Stands
1.50" Dia. Spindles
7.625" Rollspace
2" Vertical Adjustment (4" - 6")
8" Horizontal Centers
6" from Base to center of Bottom Spindle
34.25" from Floor to top of Base
(Can be reduced to 30.5" by removing 3.75" Risers)
AC Drive Motor

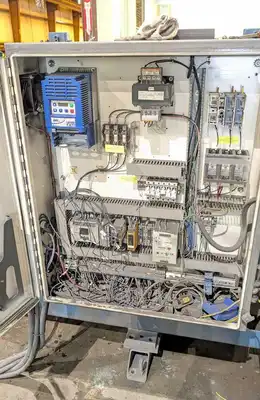

New Controls added by Samco in 2010
Lenze AC Tech SMVector Variable Frequency Drive

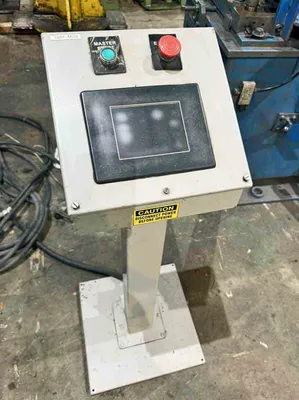

Operators Control Pedestal
Overall Size: 109" L x 68" W x 62" High

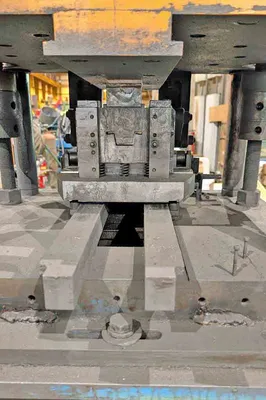

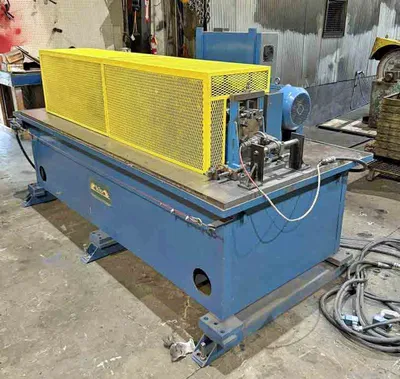

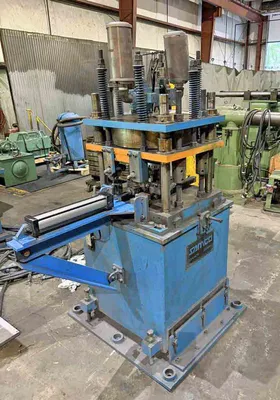

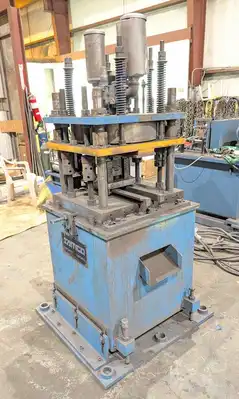

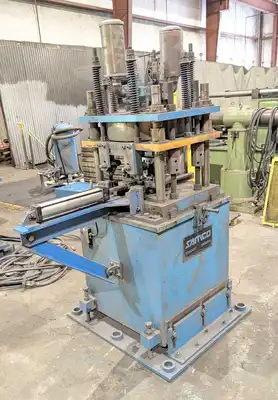

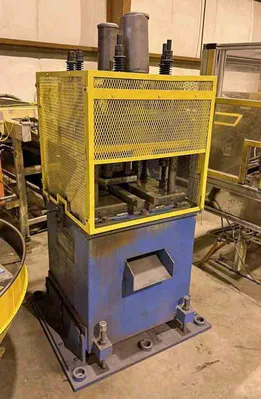

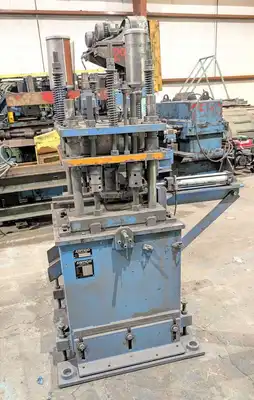

-Air Ram Cut-Off Press: Samco
New in 2010

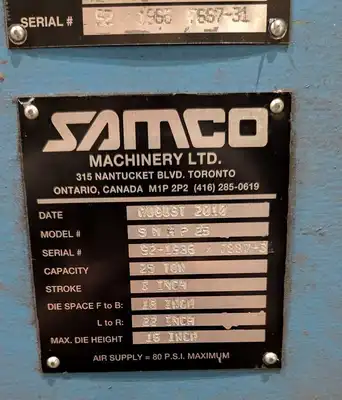

Model: SMHP-25
S/N: 92-1985/7997-31
Capacity: 25 Ton
Stroke: 3"
Die Space: 18" F to B
22" L to R
Max. Die Height: 16"
Air Supply: 80 PSI Max.
Passline: 39.5" from Floor to top of Die Rails
Air Cylinder for Flying Die
Free-Standing Accumulator Tank
Overall Size: 56" L x 40" W x 76" High

-In Storage: Toledo, OH.
