C2 Bryant Centalign Internal Grinder, Shoe Mag Work Head, Auto Loading, Through Work Head Gauging, Single Point Diamond Dresser, As Is
| Swing | 10" | 254 mm |
| Size Capacity | 10" | 10" |
| Max Grinding Bore | 4" | 101.6 mm |
| Stroke | 1" | 25.4 mm |
| Travel-Long | 8" | 203.2 mm |
| Workhead Speed | 200 RPM | 200 RPM |
| Dresser | Yes | Yes |
| Dimensions | 63 x 96 | 63 x 96 |
| Weight | 7000 lbs | 7000 lbs |

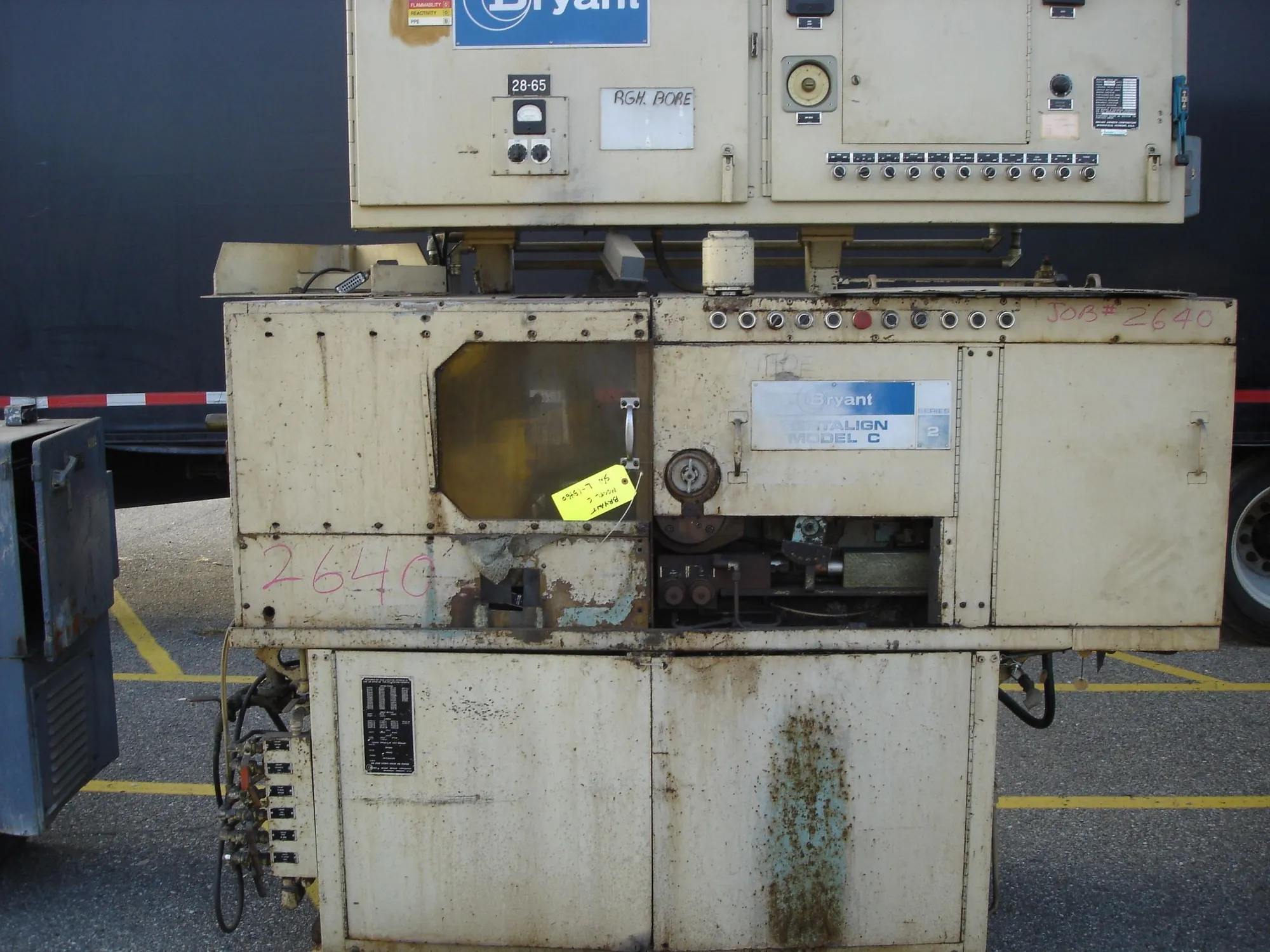

BRYANT C 2 CENTALIGN INTERNAL BORE GRINDER
S/N L 15460 Year: 1975
STANDARD CATALOG SPECIFICATIONS
Maximum swing...................................... 10"
Maximum O.D. of work part (auto loading)........... 4"
Maximum O.D. of work part (hand loading)........... Over 4"
Maximum grinding stroke (longer stroke attainable, subject to limitation of tooling)............................ 1"
Total wheel slide stroke........................... 8"
Maximum cross feed (automatic)..................... .045" on dia.
Maximum cross feed (jump cylinder)................. .375"
Work head adjustable to grind 60 degree included angle
(Subject to limitation of tooling)
Work head speed.................................... 200 RPM
(With optional speeds available up to)............. 1600 RPM
Grinding stroke up to.............................. 460 SPM
Traverse stroke approximately...................... 50 FPM
Approximate net weight, lbs........................ 7000
Floor space w/coolant tank and hyd. unit........... 63" x 96"
EQUIPMENT & FEATURES
Magnetic drive shoe work head.
Auto single point diamond dresser.
Spark out timers skip dress controls.
G.C.H. stocks many other Model Bryant grinders in stock. Call for a complete list.
Specifications are deemed accurate, however, subject to verification or prior sale.
