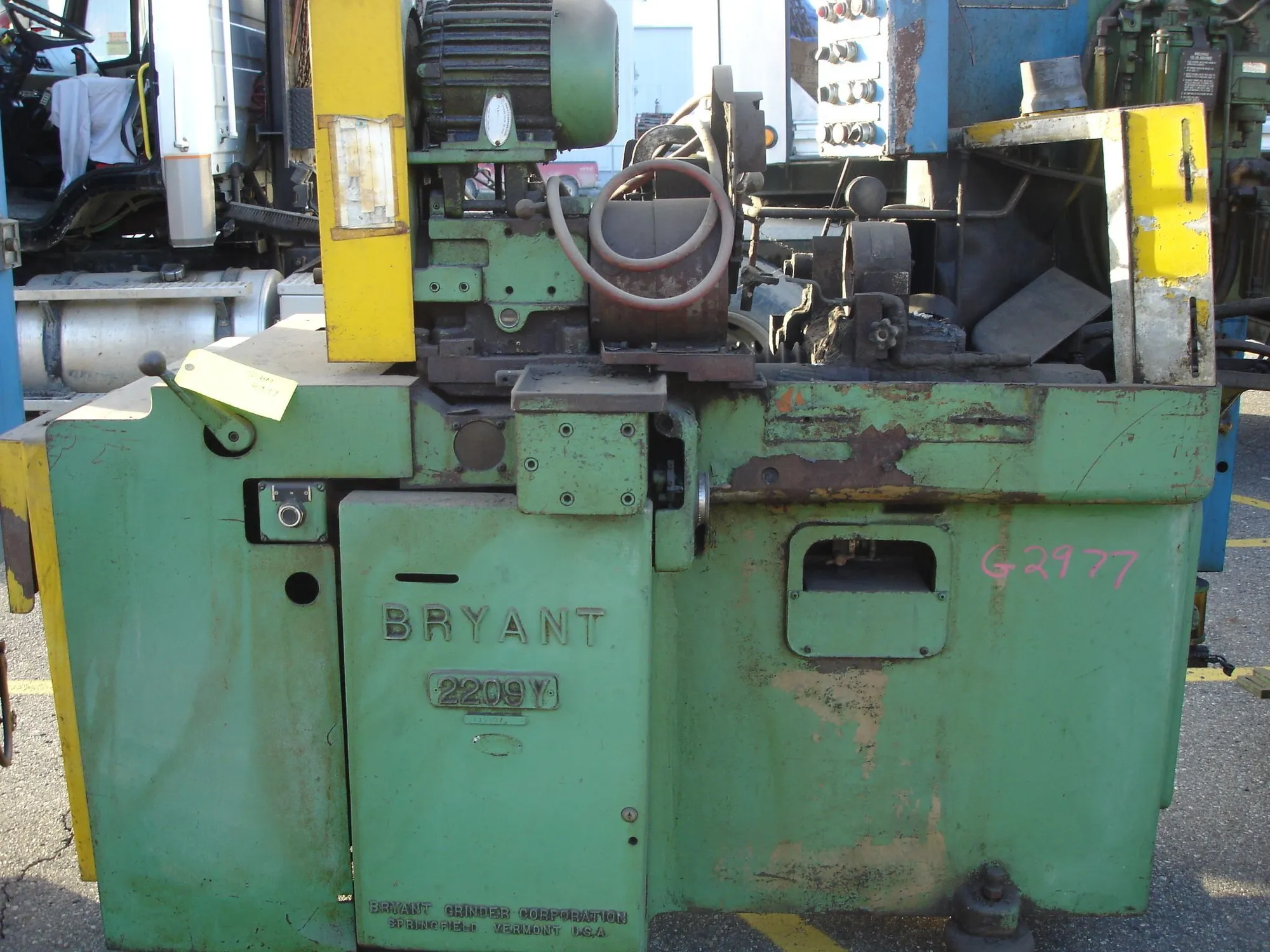

#2209-Y Bryant Internal Grinder, 9" Swing, Single Point Dresser, Timer, All Electtrics and Motors, As Is
| Swing | 9" | 228.6 mm |
| Size Capacity | 9" | 9" |
| Stroke | 0.75" | 19.05 mm |
| Travel-Long | 6" | 152.4 mm |
| Workhead Speed | 1,200 RPM | 1,200 RPM |
| Dresser | Yes | Yes |
| Dimensions | 86.875 x 66 | 86.875 x 66 |
| Weight | 4150 | 4150 |
2209-Y BRYANT
S/N J-15937 Year: 1965
STANDARD SPECIFICATIONS
Total swing................................... 9"
Grinding stroke............................... 0" to .75"
Traverse stroke, max.......................... 6"
Work spindle, R.P.M. max...................... 1200
Cross slide travel (hand load only)........... 5.25"
Approximate net weight, lbs................... 4150
Floor space with coolant tank................. 86.875" x 66"
EQUIPMENT & FEATURES
Single point dresser.
All motors & electrics.
Timer.
Specifications are deemed accurate, however, subject to verification or prior sale.
