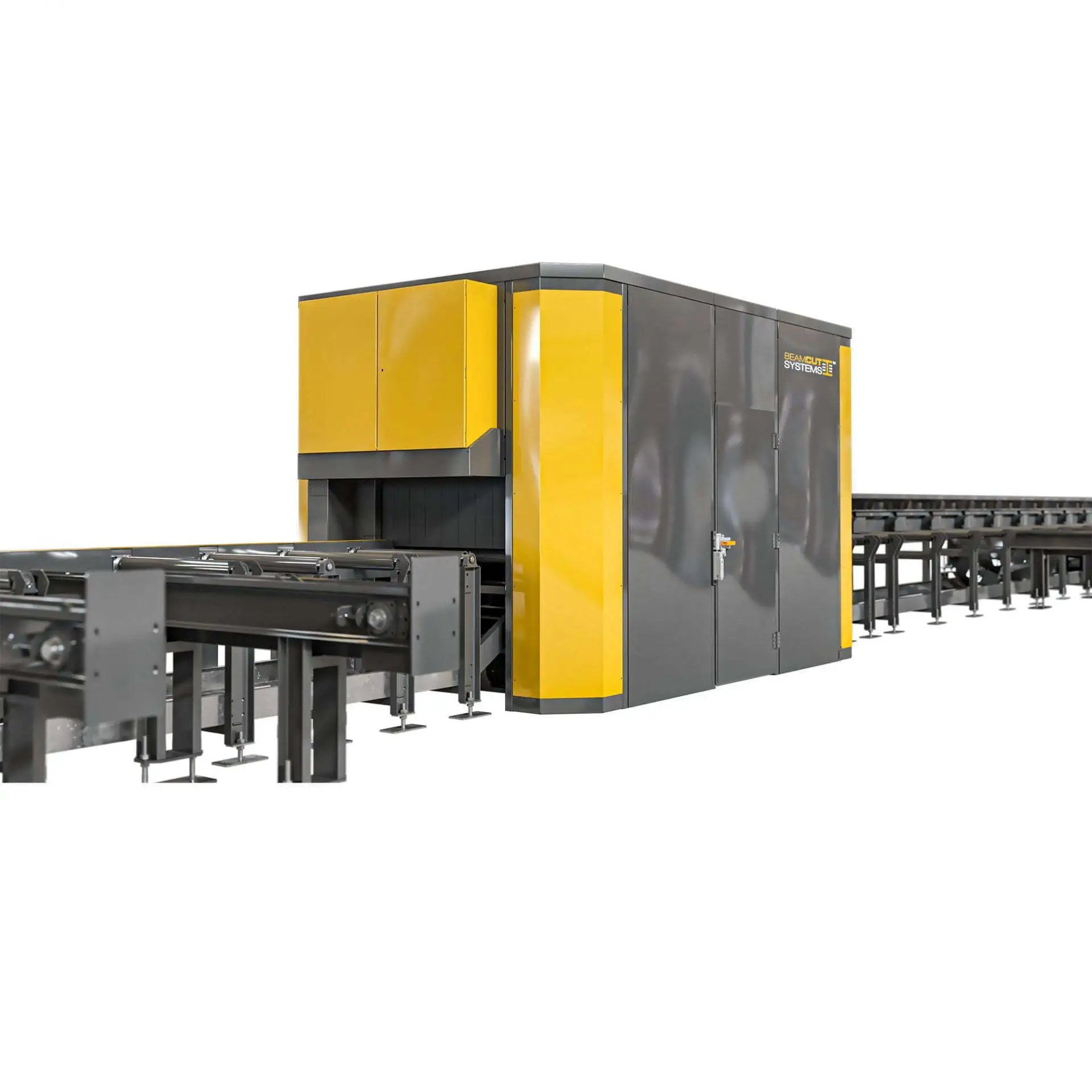

NEW BEAMCUT II

Brand: Beamcut
Models: BC50 or BC25
Type: Robotic Cutting System

BeamCut Software: BeamCut operates using DSTV files from #D profiling software and 2D DXF AutoCAD files. Once th4 files are imported, BeamCut Soft automatically simulates the cutting sequence. The automatic cutting trajectory is created and verified on the drafting computer instead of the machine. Why is that a big deal? Because it means the operator and the BeamCut are free to do what they’re meant to; CUT BEAMS.

Safety Cabinet & Smoke Trap: The safety enclosure is state of the art. It serves to delimit the space reserved for robotic cutting and the circulation area around the system. The safety latch envelope door allows for easy access and will shut the machine down if opened during production. In addition, an air outlet with a market leading 4250 CFM blower makes it possible to extract the smoke and prevents health risks associated with plasma smoke. The safety cabinet complies with OSHA and Canadian Safety Standards and may help lower insurance costs.

Mobile Measuring Unit: The mobile measuring ensures continuous monitoring of the piece length by moving along the infeed conveyor following the piece. It’s special design make sit far more precise than other measuring devices.

Photo-Laser Measuring Device: The custom Photo-Laser Measuring Device is unique to the industry allowing automatic split-second profiling and positioning of your piece and guarantees the most precise cut possible.

6-Axis Fanuc Robot Arm: The 6-axis industrial FANUC Robotic Arm ensures best in class cut quality by eliminating motion sway and cutting vibration. What’s special about the BeamCut one? It’s more than 4x stronger and more powerful than the closest competition resulting in faster and more precise cuts.

Hydraulic Unit: BeamCut uses hydraulic clamps to correct the positioning of pieces on the infeed conveyor and to firmly hold round profiles in place preventing them from rotating when moving. It’s main purpose is to hold the pieces in place so that they do not move when the robot is cutting.
