JONES - SHIPMAN 1400L surface grinder, model no. 95497. Features a 26.7"x8" table, 8" grinding wheel, and powerful 2 hp motor. Equipped with power rise, OS Walker magnetic chuck, and coolant tank. Ideal for precise horizontal grinding tasks.
| Table-W | 8" | 203.2 mm |
| Size Capacity | 26.7"x 8" | 26.7"x 8" |
| Table-L | 26.7" | 678.18 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Weight | 2579 LBS | 2579 LBS |

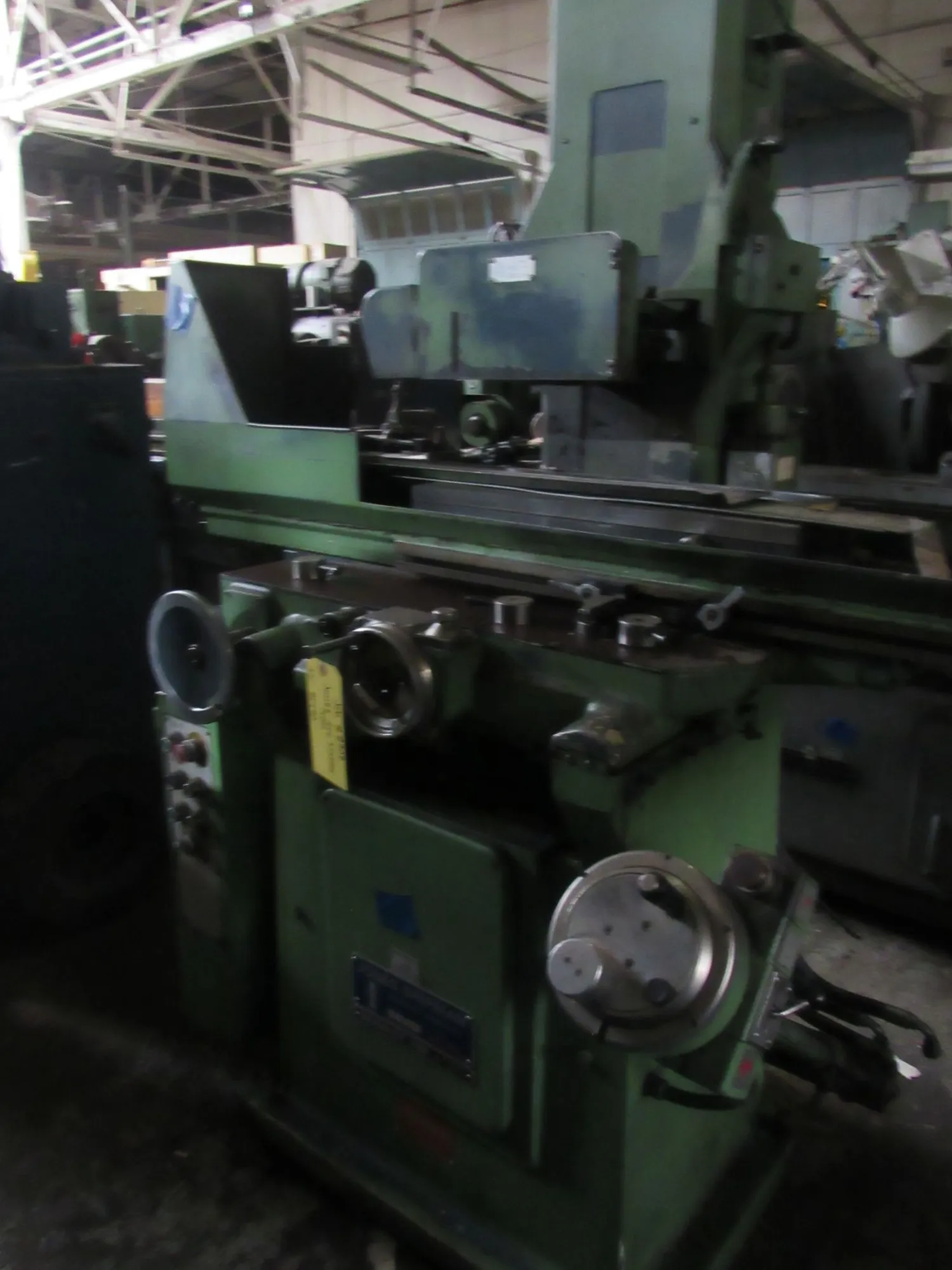

JONES & SHIPMAN 1400L SURFACE GRINDER
S/N 95497
STANDARD SPECIFICATIONS
Capacity……………………………………………………………………26.7”x 8”
Long Traverse……………………………………………………………...26.7”
Cross Travel………………………………………………………………..8”
Center Of Wheel Head To Table…………………………………………..20”
Grinding Wheel…………………………………………………………….8”x 1”x 1”
Motor……………………………………………………………………….2 HP
Weight……………………………………………………………………...2579 LBS
EQUIPPED WITH:
Power rise & fall to wheel head.
OS Walker 8”x 24” fine line magnetic chuck.
Coolant tank & service fittings.
