Overview
Type:
CNC Lathes
Manufacturer:
MAZAK
Model:
SQR-200
Year:
2006
Stock #:
LTH-MZK-5058
Description

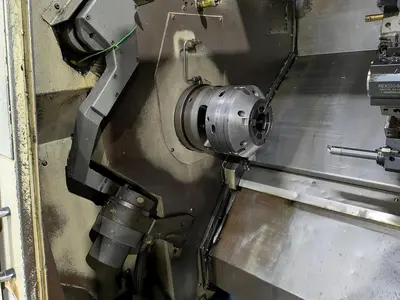

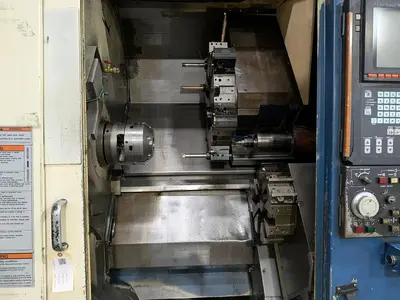

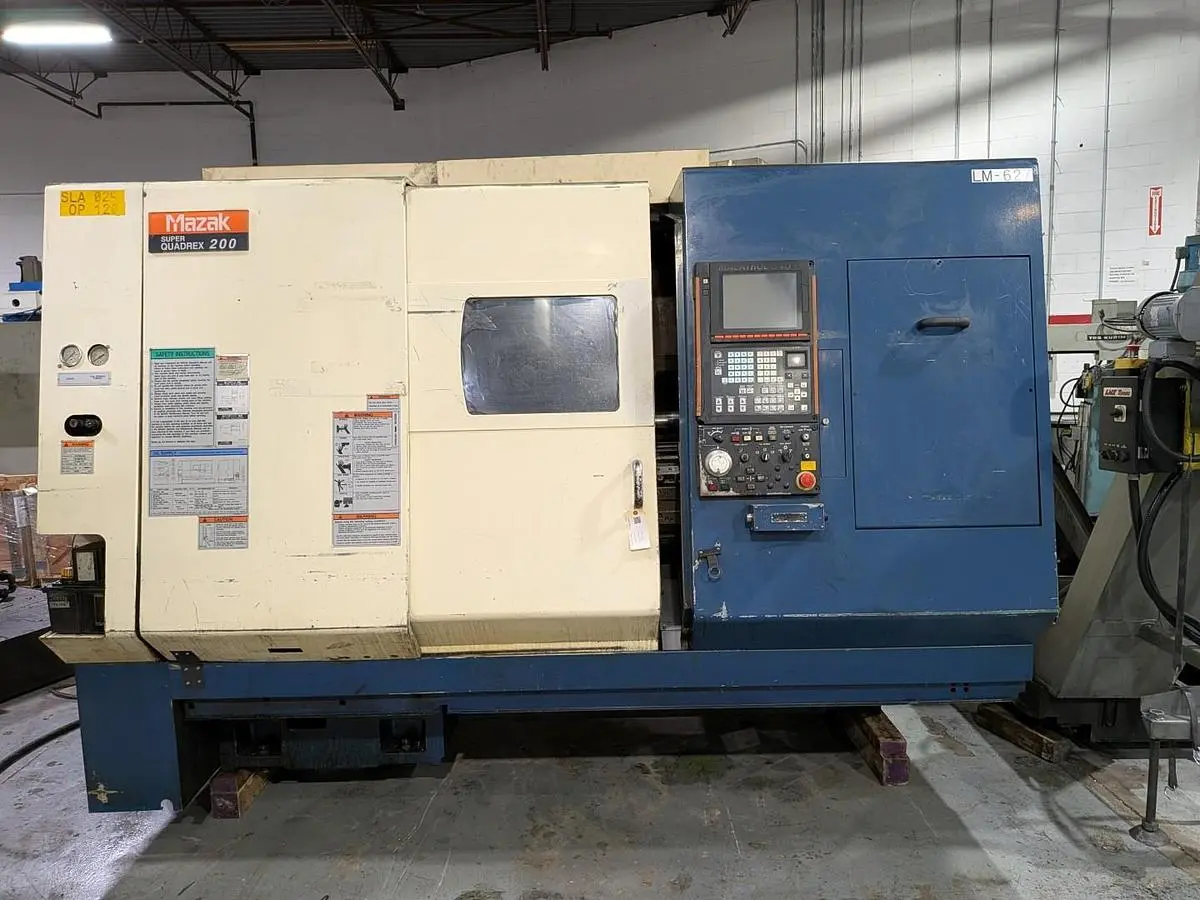

The Mazak SQR-200 is a high-performance dual-turret CNC turning center built for productivity and precision. Equipped with the Mazatrol 640T control, this 2006 model features an 8" chuck, 585 mm swing, and up to 613 mm turning length. With 12 upper and 8 lower turret stations, 5,000 RPM spindle, and fast rapid feed rates, the SQR-200 is ideal for high-volume production and reduced cycle times. Includes chip conveyor, coolant tank, and tailstock for complete machining capability.

Specifications

Chuck Size (IN): 8
Maximum Swing (MM): 585
Standard Machining Diameter (MM): 264
Maximum Machining Dia Upper Turret (MM): 350
Maximum Turning Length (MM): 613 (Solid) / 610 (Hollow)
Bar Capacity (MM): 51
Maximum Spindle Speed (RPM): 5000
Spindle Bore (MM): 61
Maximum Torque (Nm): 412
Upper Turret Stations: 12
Lower Turret Stations: 8
Rapid Feed Rate (Upper X/Z) m/min: 30 / 30
Rapid Feed Rate (Lower X/Z) m/min: 30 / 20
Rapid Feed Rate (C Axis) mm/min: 400
X Axis Stroke (Upper) (MM): 190
Z Axis Stroke (Upper) (MM): 645
X Axis Stroke (Lower) (MM): 150
Z Axis Stroke (Lower) (MM): 630
Tailstock Spindle Bore: MT No. 4
Tailstock Stroke (MM): 520
Machine Weight (KG): 6830

Equipped With

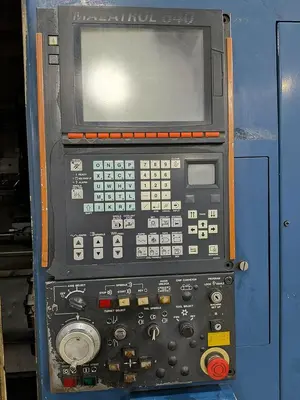

Mazatrol 640T CNC Control

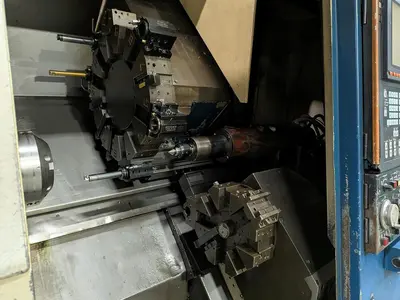

Upper 12-Station Turret

Lower 8-Station Turret

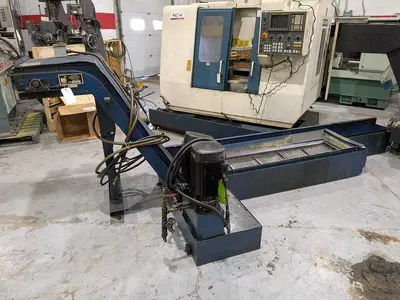

Chip Conveyor

Coolant Tank

Tailstock
