NEW WILKERSON L39-08-LD00
Overview
Description

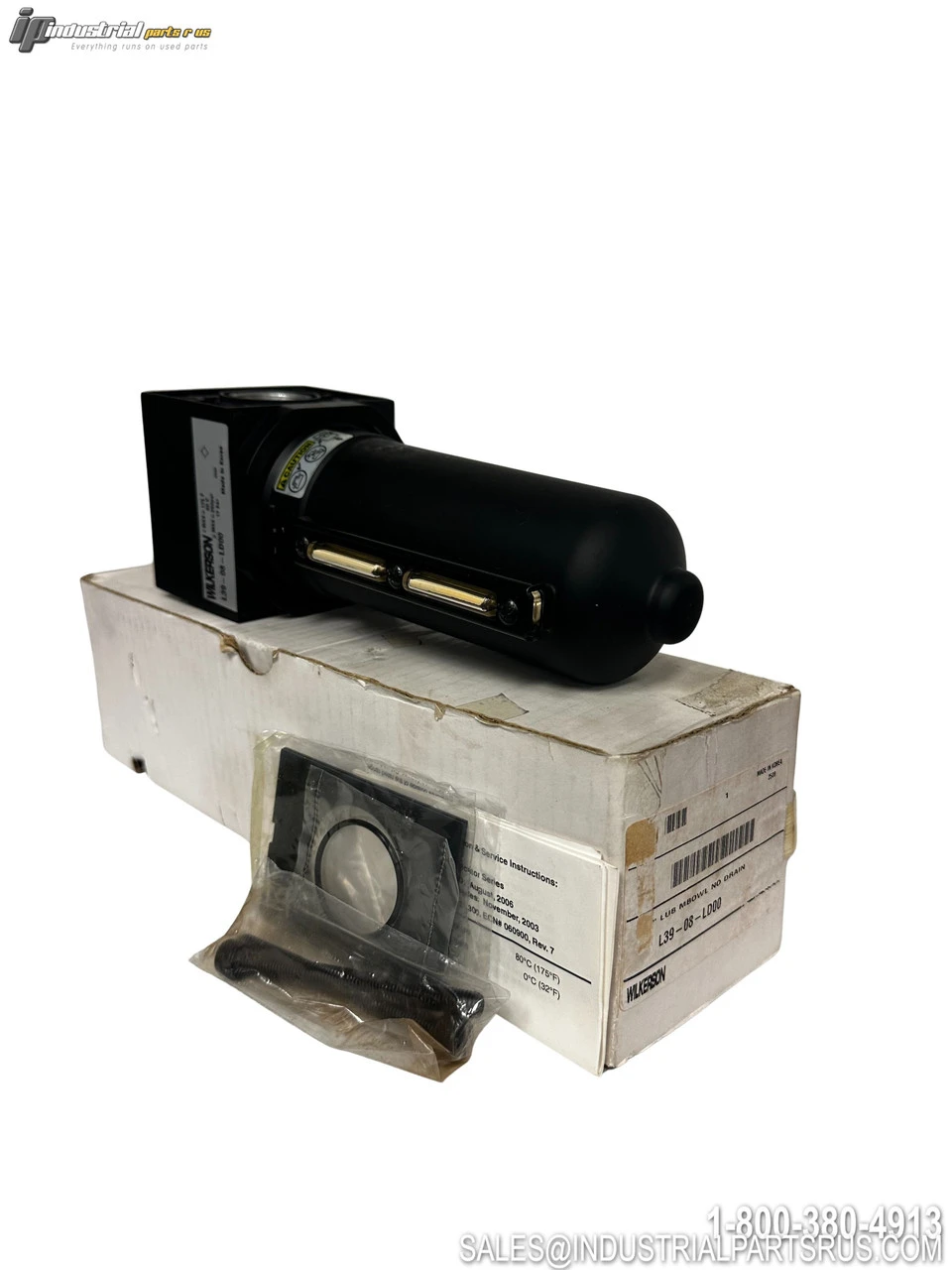

The Wilkerson L39-08-LD00 is a pneumatic air filter from the L39 EconOmist series designed for compressed air treatment applications. This unit features a 1" NPT port size with a maximum working pressure of 250 PSIG and flow capacity of 270 SCFM. It includes a metal bowl construction with sight gauge for visual monitoring and operates without a drain system.
Specification
Value
Brand
WILKERSON
Model/Part Number
L39-08-LD00
Series
L39 EconOmist
Port Size
1" NPT
Maximum Pressure
250 PSIG (17.2 bar)
Flow Capacity
270 SCFM (127 dm³/s)
Operating Temperature
32° to 175°F (0° to 80°C)
Weight
3.5 lb (1.6 kg)
Body Material
Aluminum
Bowl Material
Aluminum
Sight Dome Material
Polycarbonate
Seal Material
Nitrile
Sight Gauge Material
Polyamide (Nylon)
Drain Type
No Drain
Bowl Type
Metal with Sight Gauge
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 5.00 LBS | 5.00 LBS |
|---|
SKU: AI0331
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 5.00 LBS
Width: 10.00
(in)
Height: 5.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Korea
GTIN: 679523686185
Application: Pneumatic System Air Preparation
Manufacturer: Wilkerson
Part Number: L39-08-LD00
Shelf: K-46
Model: L39-08-LD00
MPN: L39-08-LD00
Type: Air Filter
