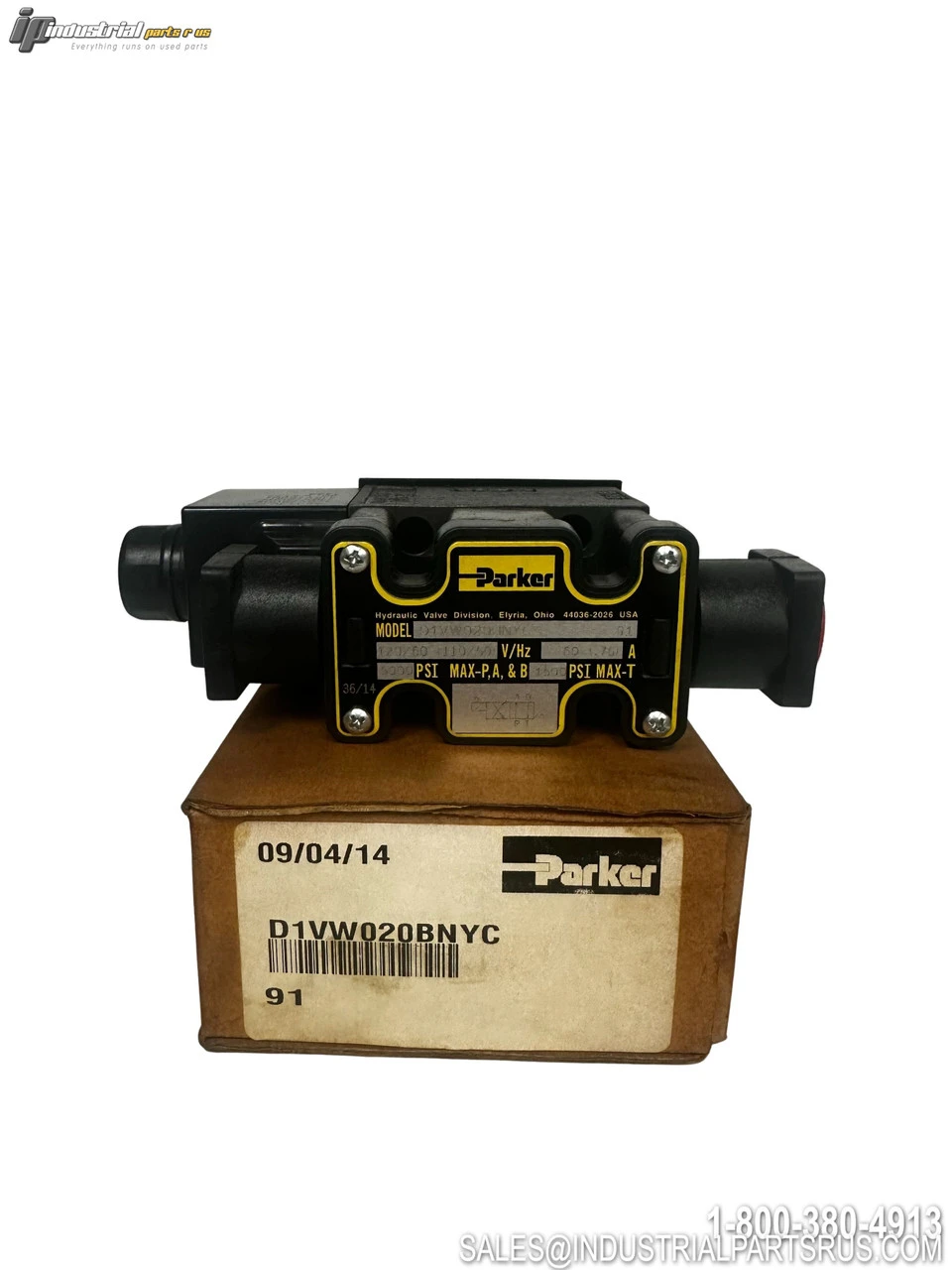

NEW PARKER D1VW020BNYC

The Parker D1VW020BNYC is a high-performance hydraulic directional control valve from Parker's D1VW series. This single solenoid, 4-way 2-position spring offset valve features wet armature design with P > A flow pattern and conforms to D03 (NG6) mounting standards.
Specification
Value
Brand
Parker
Model/Part Number
D1VW020BNYC
Type
Solenoid Valve
Series
D1VW
Valve Configuration
4-way 2-position
Actuation Type
Single Solenoid
Spring Type
Spring Offset
Spool Code
020
Valve Style Code
B
Spool Type
P > A, B > T
Coil Voltage
120VAC
Frequency
50/60 Hz
Maximum Operating Pressure
5000 PSI
Maximum Flow Rate
18 GPM
Mounting Pattern
D03 (NG6)
Seal Material
Buna-N (Nitrile)
Body Material
Ductile Iron
Solenoid Connection
1/2" NPT Conduit
Wiring Box Features
Terminal Box with LED Indicator Lights
Protection Rating
IP67 / NEMA 4
Armature Design
Wet Armature
We warranty all items for 30 days from date of purchase.

SKU: AI0355
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 6.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Parker
Part Number: D1VW020BNYC
Shelf: A-18
Model: D1VW020BNYC
MPN: D1VW020BNYC
Type: Solenoid Valve
