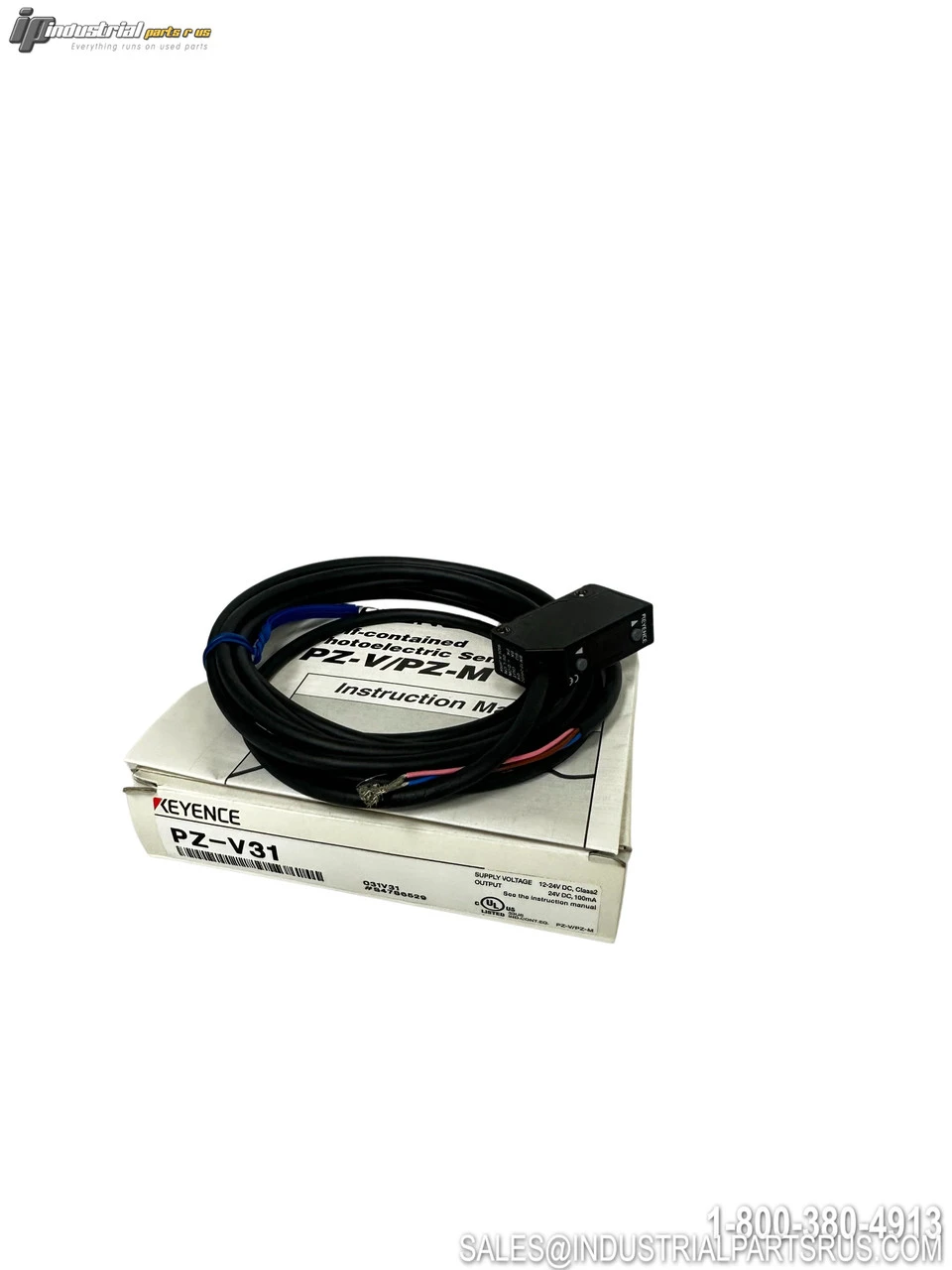

NEW KEYENCE PZ-V31

The KEYENCE PZ-V31 is a photoelectric sensor featuring intelligent reflective technology with Position Sensitive Detector (P.S.D.) and Automatic Power Reinforcement circuit (A.P.R.). This sensor provides stable detection regardless of color, surface finish, or angle. The square reflective design with 2m cable connection makes it ideal for industrial automation applications requiring reliable object detection.
Specification
Value
Brand
KEYENCE
Model/Part Number
PZ-V31
Series
PZ-V/M
Sensor Type
Photoelectric Sensor
Configuration
Square Reflective
Output Type
NPN
Power Supply Voltage
12 to 24 VDC ±10%
Power Consumption
37 mA max
Operating Distance
300mm (11.81 inch)
Output Load
DC Load, 100 mA (24V) max
Connection Type
2m Cable
Beam Type
Visible
Operation Mode
Light/Dark Programmable
Operating Temperature
-20 to +55°C
Enclosure Rating
IP67
Dimensions (H x L x W)
34.8 x 21.1 x 10.8 mm
Weight
Approx. 55g (including 2m cable)
Case Material
Glass-fibre reinforced plastic
We warranty all items for 30 days from date of purchase.

SKU: AI0336
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: NPN
Sensor Type: Photoelectric
Operating Distance: 300mm
Manufacturer: Keyence
Enclosure Type: IP67
Part Number: PZ-V31
Shelf: K-44
Model: PZ-V31
MPN: PZ-V31
Type: Photoelectric Sensor
