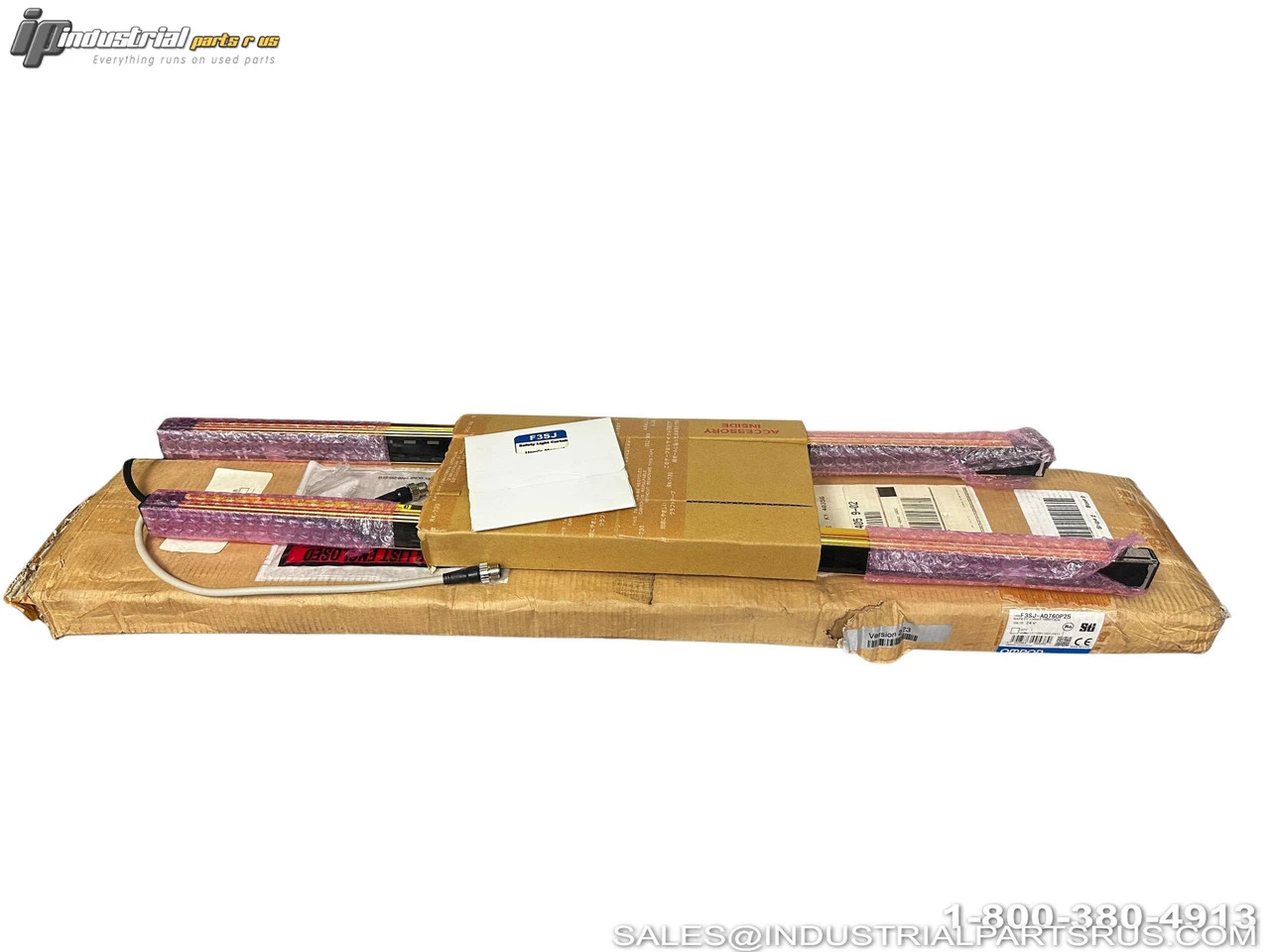

NEW OMRON F3SJ-A0760P25

This listing includes the COMPLETE SET with both emitter and receiver units.
The OMRON F3SJ-A0760P25 is an Advanced Type safety light curtain designed for industrial safety applications requiring sophisticated protection features. This unit provides 760mm protective height with 38 detection beams and supports advanced functions including blanking, muting, warning zones, and series connection capabilities.
Specification
Value
Brand
OMRON
Model/Part Number
F3SJ-A0760P25
Series
F3SJ-A Advanced
Product Type
Safety Light Curtain
Protective Height
760mm
Number of Beams
38
Beam Gap
25mm
Detection Capability
25mm diameter opaque objects
Operating Range
0.2m to 9m
Response Time (ON to OFF)
12ms
Response Time (OFF to ON)
48ms
Supply Voltage
24VDC ±20%
Output Type
PNP (Safety outputs: 2 x 300mA max)
Light Source
Infrared LED 870nm
Safety Rating
SIL3, Type 4 ESPE, PLe, Category 4
Connection Type
Pre-wired with M12 connectors
Weight
Approximately 280g (emitter + receiver)
Operating Temperature
-10°C to +55°C
IP Rating
IP65
Application
Hand protection
Series Connection
Up to 4 sets
We warranty all items for 30 days from date of purchase.

SKU: AI0357
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 8.00 LBS
Width: 6.00
(in)
Height: 6.00
(in)
Depth: 48.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Safety Light Curtain
Manufacturer: Omron
Part Number: F3SJ-A0760P25-L / F3SJ-A0760P25-D
Shelf: J-85
Model: F3SJ-A0760P25
MPN: F3SJ-A0760P25-L / F3SJ-A0760P25-D
Type: Light Curtain
