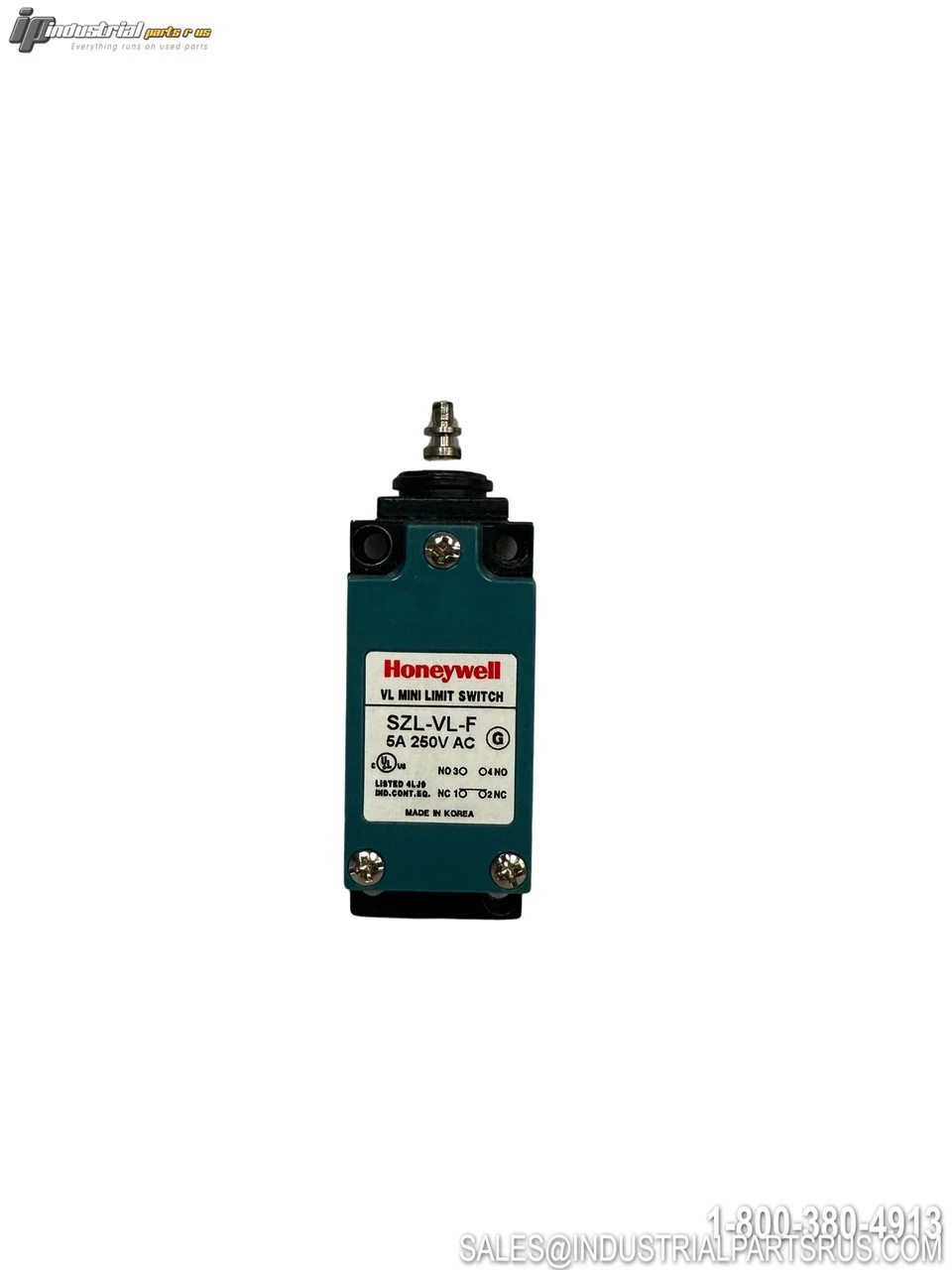

USED HONEYWELL SZL-VL-F
Overview
Description
The Honeywell SZL-VL-F is a miniature limit switch from the SZL-VL series designed for space-restricted applications. This switch features a wobble coil spring actuator with plastic rod, SPDT contact configuration, and cable gland termination for fast, simple wiring. Its compact design makes it ideal for OEM machinery requiring reliable position sensing in limited mounting spaces.
Specification
Value
Brand
Honeywell
Model/Part Number
SZL-VL-F
Product Type
Limit Switch
Series
SZL-VL
Actuator Type
Wobble Coil Spring
Actuator Material
Plastic Rod
Contact Configuration
SPDT (1NC/1NO)
Max Contact Voltage AC
250VAC
Max Contact Voltage DC
125VDC
Contact Current Rating
5A
Max Operating Force
0.88N
Terminal Type
Cable Gland
Enclosure Rating
IP64
Mounting Type
Screw Mount
Operation Type
Rotary
Body Material
Die-Cast with Thermoplastic Cover
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 5.00 LBS | 5.00 LBS |
|---|
SKU: AI0335
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Korea
Manufacturer: Honeywell
Enclosure Type: IP64
Part Number: SZL-VL-F
Shelf: K16
Model: SZL-VL-F
MPN: SZL-VL-F
Type: Limit Switch
