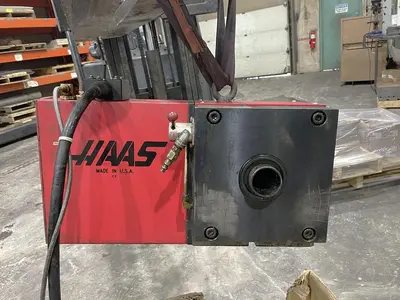

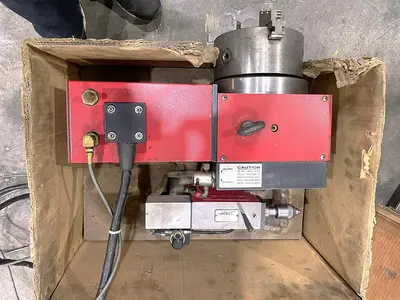

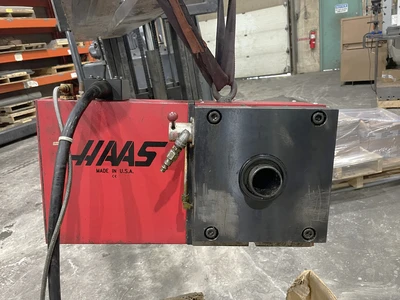

USED 2005 HAAS HRT210

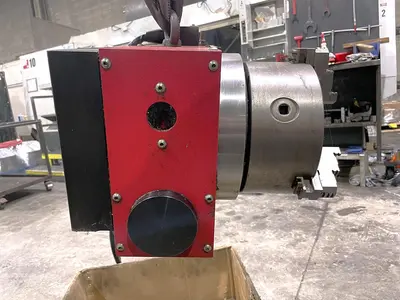

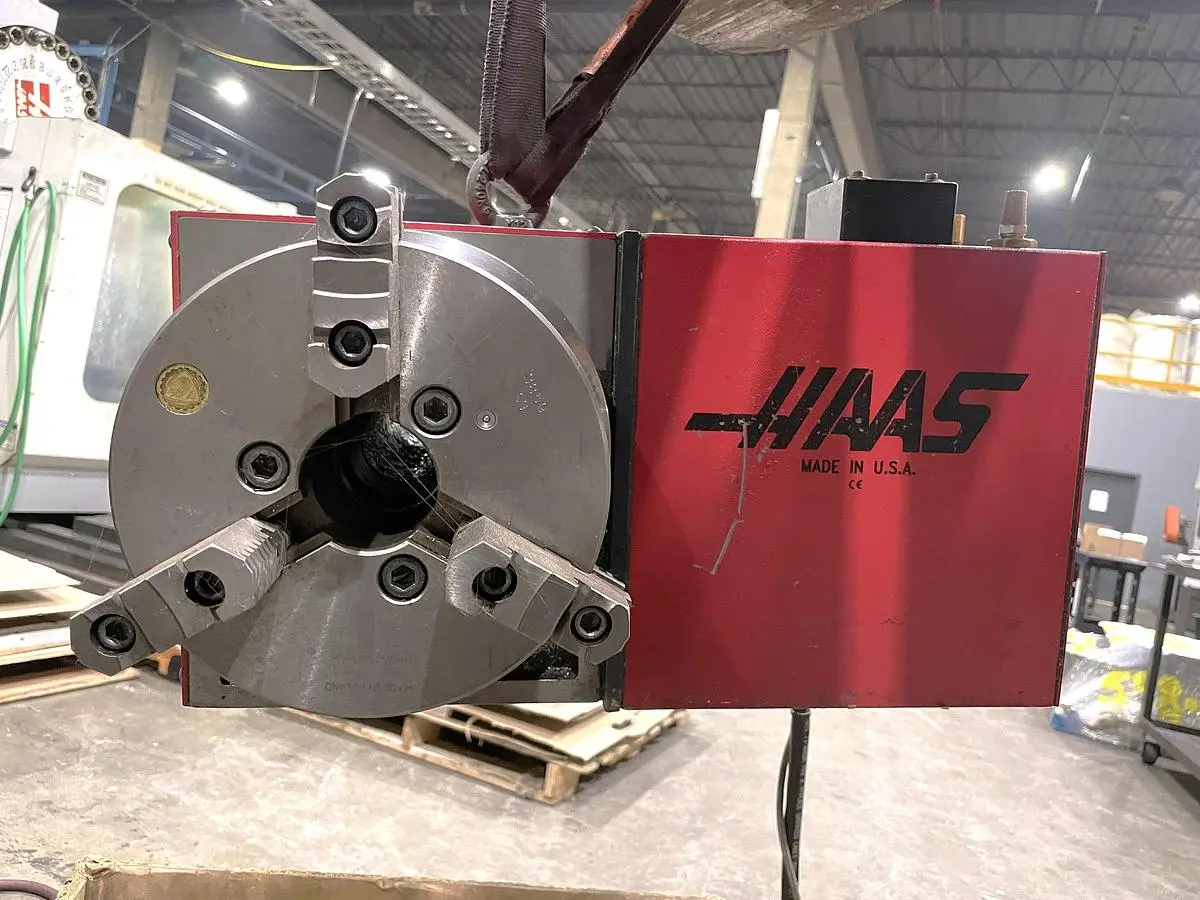

8.3" 3 Jaw Chuck w/ Jaws

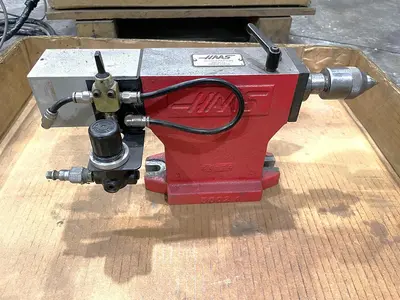

Tailstock

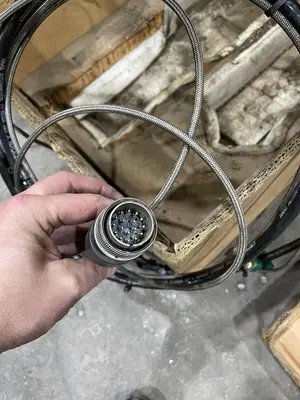

Includes Cabling with 17 Pin Connector Plug
CNC interfacing to M functions
Brush Type
Runs As a Full Rotary Table with Haas Mills

The 2005 Haas HRT210 is a reliable, used rotary table suitable for a range of machining applications. Equipped with a tailstock and classified as a brush type rotary table, it provides precision and versatility. The device features a 1.5 hp DC Servo motor, offering a torque of 210 ft./lbs, which ensures efficient power delivery and rotation control. It supports a maximum table load of 165 lbs, making it appropriate for various industrial tasks.

With a table to centerline of indexer at 6 inches and a resolution of .001 degrees, this rotary table delivers precise indexing and rotational movements. It includes six T-slots angled at 60 degrees for secure and flexible attachment options. The backlash is rated at 30 arc-seconds, indicating accurate and consistent performance.

The HRT210 requires a 115-volt power supply and is compact with dimensions of 27"x21"x21". Weighing 205 lbs, it is robust and durable. The 6.3-inch worm gear diameter with a 90:1 gear ratio ensures smooth operations, making this rotary table a dependable choice for optimizing your machining processes.

Table to Centerline of Indexer: 6"
Maximum Table Load: 165 lbs
Motor: 1.5 hp DC Servo
Torque: 210 ft./lbs
Backlash (arc-sec): 30
Number of T-Slots: 6 @ 60 Degrees
Resolution: .001 Degrees
Worm Gear Diameter: 6.3"
Gear Ration (Worm & Gear): 90:1
Power Required: 115 volts
Dimensions: 27"x21"x21"
Weight: 205 lbs
