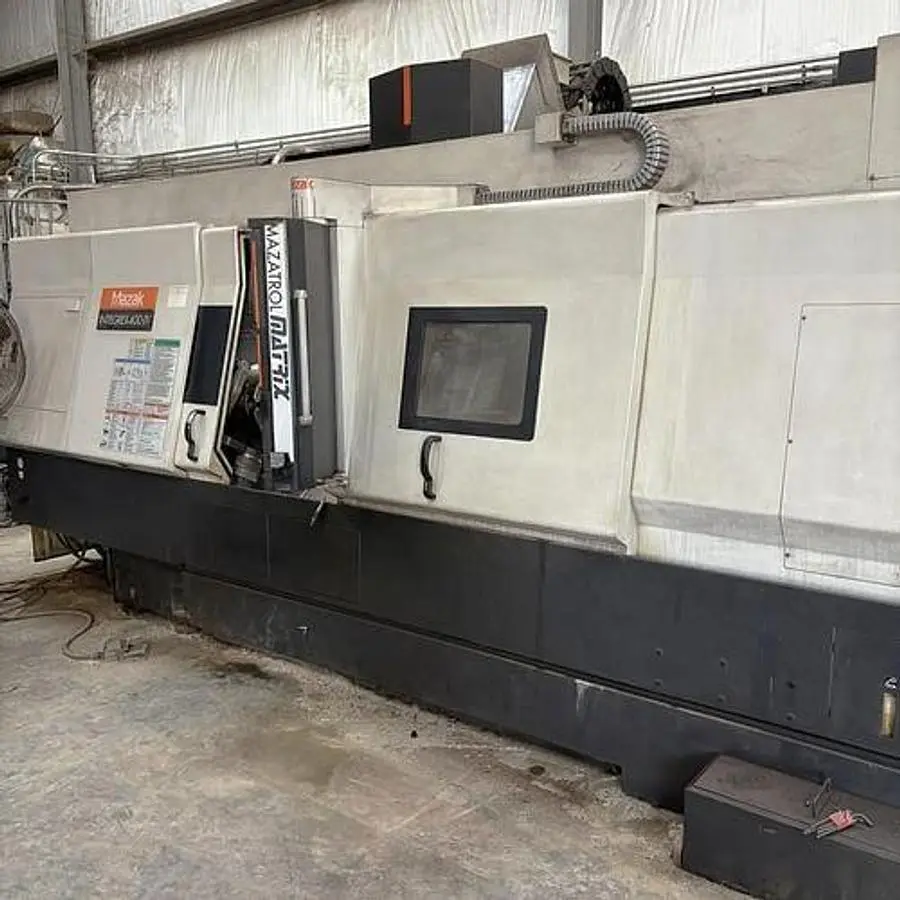

USED 2007 MAZAK INTEGREX 400-IV/1500

Y Axis Capability
B Axis Pendulum Head
Full "C" Axis Spindle Rotation
Live Milling/Drilling Capability
15" 3 Jaw Hydraulic Chuck
40 Tool Magazine
Programmable Tailstock
High-Pressure Coolant Pump
Coolant Thru Mill Head
Chip Conveyor
Automatic Tool Eye
IC Memory Card Interface
Cardbus Interface - 2 Slots
LAN Port Interface
USB Port Interface

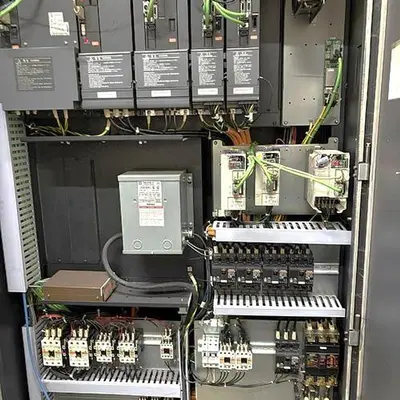

Multi Tap Transformer 230/460 Volt
Set Up For Tool Probe (Probe not included)
All Available Manuals
Misc. Tooling Mill Holders, ER-40 Collet Holders, Boring Bars, Grooving, Threading
10k Power on Hours
1,850 Cycle Time Hours

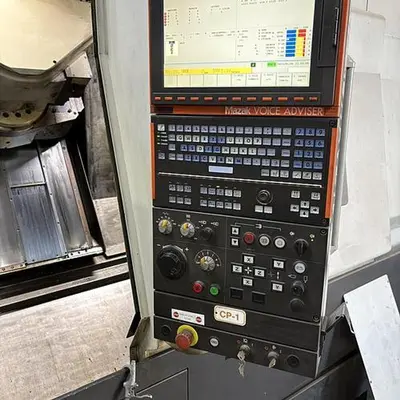

Control: Mazatrol Matrix

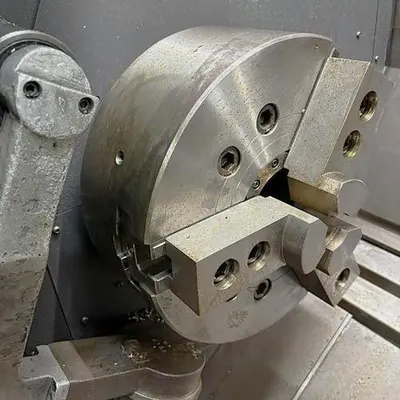

Chuck Sizes Main / Subspindle: 15" Hydraulic Chuck
Maximum Swing / Using Y Axis: 34" / 26"-30"
Maximum Cutting Length: 60"
Distance Between Centers: 60"
X-Axis Travel: 24.8"
Y-Axis Travel: +/- 4.53"
Z-Axis Travel: 62.41"
B-Axis Tilt Movement: 225 Degrees in .001 Increment
C Axis Spindle Rotation: .0001 Degree
Spindle Nose / Bore / Bar Capacity: A2-8" / 4.4" / 4.0"
Spindle Speeds: 35 - 3,300 RPM
Spindle Motor: 40 HP
Rotary Tool Speed / Rotary Motor: 12,000 RPM / 25 HP
Tool Magazine Capacity: 40 Position ATC - Capto C6
Rapid Traverse Rates (X, Y, Z): 1496 IPM, 1024 IPM, 1496 IPM
Machine Dimensions: 202" x 93" x 115"
Machine Weight: 28,500 lbs.
